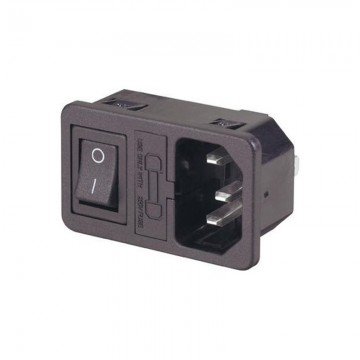

Power socket for general purpose or to use with Casedualboard2.

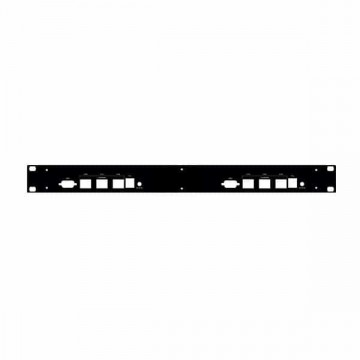

19" DualBoard Enclosure System for APU Boards
Reference: CASEDUALBOARD2
US$195.95
Solution for PCEngines & MikroTik boards in a 19" 1U rack mount enclosure to install in data center. Ideal for redundant or high performance firewalls, VPN solutions, VOIP solutions and more, great choice to rack mount low power and fanless boards.
The 19" DualBoard Enclosure System is an excellent solution for deploying two APU boards in a single enclosure, making it ideal for a wide range of applications in various industries. With its 1U rack mount design, this enclosure is perfect for installation in data centers and other server rooms where space is at a premium.
One of the key features of this enclosure is its internal power supply and power button, which allows for better control and safety. With these features, you can easily manage the power supply to the APU boards, ensuring that they remain secure and protected at all times.
The 19" DualBoard Enclosure System is particularly well-suited for applications such as firewall and VPN solutions, VOIP servers, and many more. With its redundant APU system board solution, you can be confident that your critical systems will remain operational even in the event of a hardware failure.
In addition to providing a redundant APU system board solution, this enclosure can also be used as a load balancer based on the APU board. This makes it an ideal choice for applications where load balancing is necessary for optimal performance.
The front plate of the enclosure features four Ethernet cutouts for APU4 series boards, as well as three Ethernet cutouts for APU2 or APU3 series boards. This allows for easy integration with different types of APU boards, making it a versatile and flexible solution for a wide range of applications.
The enclosure also includes the ability to install two internal SATA drives, as well as an internal fan for hot environments. Additionally, there is an internal SSD 2.5" drive mounting kit included, making it easy to expand the storage capacity of the system.
Overall, the 19" DualBoard Enclosure System is an excellent choice for anyone looking to deploy two APU boards in a single enclosure. With its redundant system board solution, load balancing capabilities, and easy-to-use power and control features, this enclosure is ideal for a wide range of applications in various industries.
Enclosure includes all screws to assemble board and rack mount screws.
CASEDUALBOARD2
Data sheet
- Compatible with
- APU2, APU3, APU4
- Color
- Black
- Screws
- 4 Screws for Mounting Motherboard,4 Screws for Enclosure
- Cutouts
- 4 x Antennas, 2 x Power Switch, 2 x Serial Ports
- Material
- Galvanized steel with black powder front panel
- Application
- Indoor
- Package Includes
- 1x 19“ Dualboard enclosure with single board front plate cut outs, 1 x Screw set for board mounting, 4 x Rubber caps for unused N connectors, 4 x Screw set for Mounting to the rack
- Depth
- 300mm
- Weight
- 1300g
- Width
- 440mm
- Height
- 43mm
- Certificate
- RoHS
- Board Category
- APU1
APU2
APU3 - Return Warranty
- No Returns
- Manufacturer Warranty
- No Returns
Solution for PCEngines & MikroTik boards in a 19" 1U rack mount enclosure to install in data center. Ideal for redundant or high performance firewalls, VPN solutions, VOIP solutions and more, great choice to rack mount low power and fanless boards.
You might also like
Availability: 35 In Stock
18AWG is a standard gauge cable, which is suitable for most applications, this cable can carry up to 10 AMPs, 125 Volt load.
Availability: 5 In Stock
18AWG is a standard gauge cable, which is suitable for most applications, this cable can carry up to 10 AMPs, 125 Volt load.
Availability: 21 In Stock
Small Footprint with High Power Density
Meets EMS EN50082-2/EN61000-6-2 Heavy Industry Level (35~150 W)
Withstands 300 VAC Surge Input for 5 Seconds
Availability: 58 In Stock
DualRack cable harness for PC Engines ALIX/APU boards to connect the internal power supply (J18 Header).
Suitbale for MeanWell power supply RS-35-12.
Availability: 4 In Stock
heat spreader placement fixture for apu2 / apu3 boards.
Availability: 60 In Stock
PC Engines SATA data with Power cable for APU Boards has three connectors, , data / power on drive end, separate SATA data and 2 pin power header for APU System board end.
16 other products in the same category:
Availability: Out of stock
Solid state replacement for 2.5" hard disk drives, 44 pin IDE connector. This version includes mounting hole locations for regular and legacy 2.5" hard drives.
Availability: 5 In Stock
Exact specifications as per PCEngine's recommendations. Suitable for all ALIX boards other than ALIX.1D/1E, Switching adapter with US plug, with FCC. ROHS and CEC compliant
Availability: 13 In Stock
Enclosure designed for ALIX.2* boards. Cutouts for 3 LEDs and 1 switch in front, cutouts for DB9, 2 LAN, 3 or 2 SMA connectors, DC jack in back. Enclosure made of anodized or painted aluminum. Dimensions 168 mm wide x 157 mm deep x 30 mm high. RoHS compliant.
Availability: 5 In Stock
Exact specifications as per PCEngine's recommendations. Suitable for all ALIX boards other than ALIX.1D/1E, Switching adapter with US plug, with FCC. ROHS and CEC compliant
Availability: 5 In Stock
PCEngines Indoor Red Enclosure for APU & ALIX2D13 is designed for Following boards
APU Series
Availability: 16 In Stock
Enclosure designed for ALIX.2* boards. Cutouts for 3 LEDs and 1 switch in front, cutouts for DB9, 2 LAN, 3 or 2 SMA connectors, DC jack in back. Enclosure made of anodized or painted aluminum. Dimensions 168 mm wide x 157 mm deep x 30 mm high. RoHS compliant.
Availability: 30 In Stock
Please note that these cards support DMA, must disable DMA when used on WRAP.1C / .1D / .2C boards.
Availability: 20 In Stock
3/16" nut driver bit optimized for DB9 / D-Sub hex nuts. 1/4" hex end fits common electric screwdrivers.
Availability: 10 In Stock
PC Engines IDE Straight Conn to CompactFlash Adapter (IDE Straight Conn) is a perfect replacement for PC hard disk drives, floppy power connector and 40 pin IDE connector.
Availability: 5 In Stock
The cable has enough cross-links between the signals to transmit and receive data with accuracy. Moreover, this is used mostly to transfer files from one computer to another.Null Modem Cable (DB9F - DB9F) is a cross linked cable.
Availability: 30 In Stock
A performance class SD memory card designed to meet the storage demands of high-quality electronic devices.
Availability: 19 In Stock

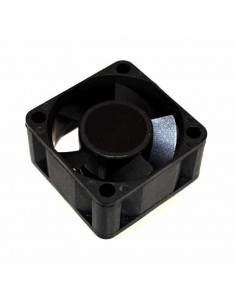

Internal DC Fan for 19" DualRack Enclosure for APU and MikroTik RB boards.
