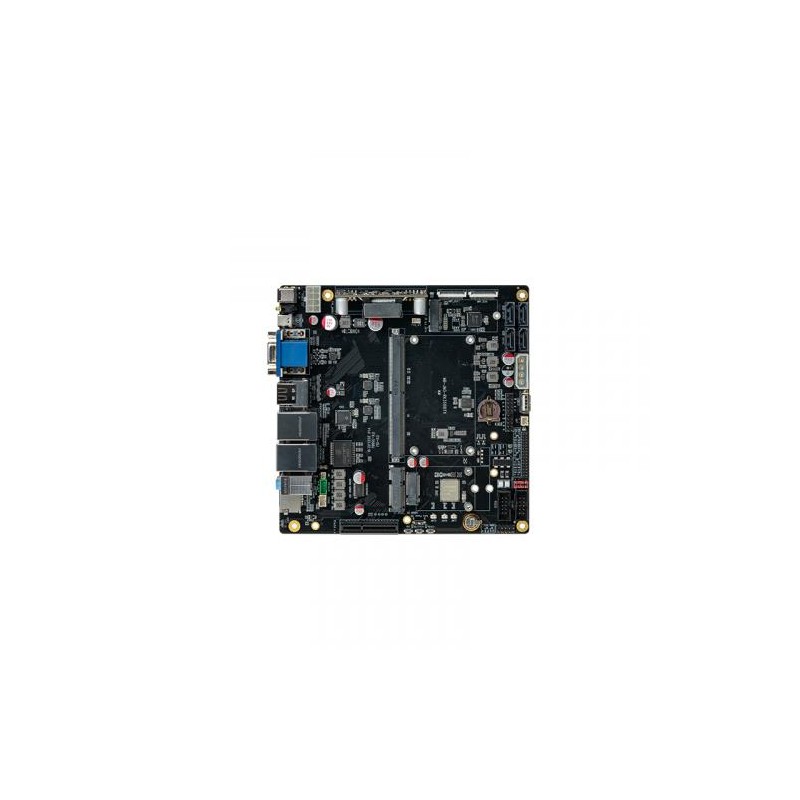

PC Engines APU3D2 System Board
Reference: APU3D2
US$173.00
It is a high performance mini-ITX embedded board with AMD GX Series (Quad-Core) CPU 1GHz with 64 bit and 2MB L2 cache featuring 3 Intel i211AT & DDR3-1333 DRAM with optimized for 3G/LTE Modems.
Expected in 2022
The APU3C2 Platform is the alternate next generation of low cost APU series (APU1D) from PC Engines. It is a high performance mini-ITX embedded board with AMD GX Series (Quad-Core) CPU 1GHz with 64 bit and 2MB L2 cache featuring 3 Intel i211AT & DDR3-1333 DRAM. The PC Engines APU System Board is a Single Board Computer (SBC) which can be used for a variety of applications like LAN Router, Firewalls, Load Balancer, VPN-Router, Thin Clients, compact Server, NAS etc. Compact, power efficient and can be booted over the network, via USB-Device, SD-Card, mSATA-SSD-Module and SATA-Connection.
Directly ship from Canadian Warehouse!
Instructions for Cooling assembly
APU3D2
2017-02-28
Data sheet
- Processor (CPU)
- AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache
- DRAM
- 2 GByte DDR3-1333 (not expandable)
- I/O
- DB9 serial port, 2 USB 3.0 external + 4 USB 2.0 internal, three front panel LEDs, push button
- Board Size
- 6 x 6" (152.4 x 152.4 mm) - same as apu1d, alix2d13 and wrap1e.
- Storage
- Boot from SD card (internal sdhci controller), external USB or m-SATA SSD. 1 SATA + power connector. mSATA is shared with miniPCI express.
- Display Port
- None
- Storage Controller
- mSATA, SD Card
- Enclosure Cutouts
- 3 x Ethernet, 1 x USB, 2 x SMA, 3 x LED, 1 x Reset button
- Ethernet Ports
- 3 Gigabit Ethernet channels (Intel i211AT)
- Package Includes
- System Board APU3C2, Thermal Pads & Alu Heat Spreader
- Firmware
- CoreBoot Open Source System BIOS with support for iPXE and USB boot
- Expansion
- 3 miniPCI express (J14 USB or mSATA, with SIM
J15 USB only, with SIM
J16: full miniPCI express, but no SIM, intended for wifi). GPIO header, optional I2C bus, COM2 (3.3V RXD / TXD). - Power Adapter
- DC Output: 12v 2A with US Plug
- Power
- 12V DC
- Board Category
- APU3
- Return Warranty
- Standard 30 Days
- Manufacturer Warranty
- 2 Years Limited Warranty
It is a high performance mini-ITX embedded board with AMD GX Series (Quad-Core) CPU 1GHz with 64 bit and 2MB L2 cache featuring 3 Intel i211AT & DDR3-1333 DRAM with optimized for 3G/LTE Modems.
Expected in 2022
