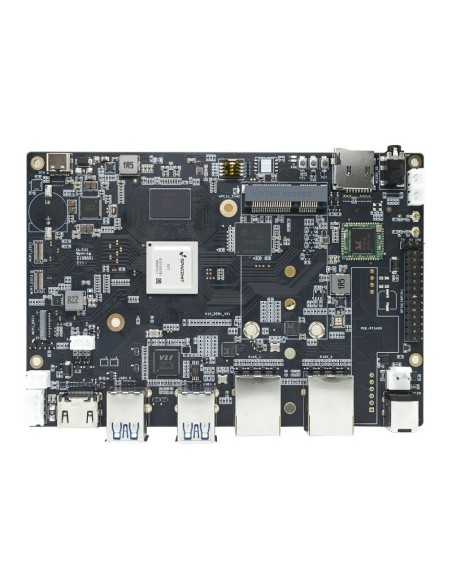

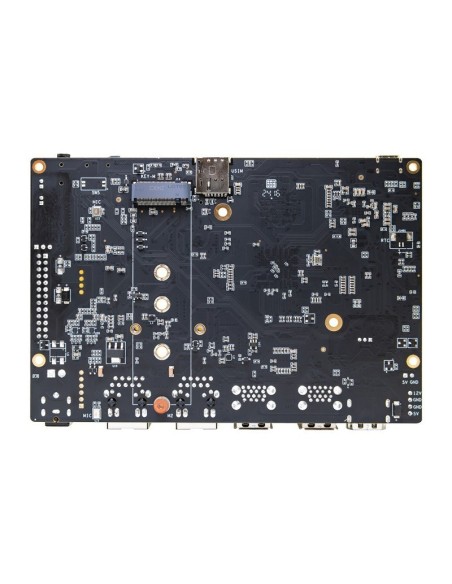

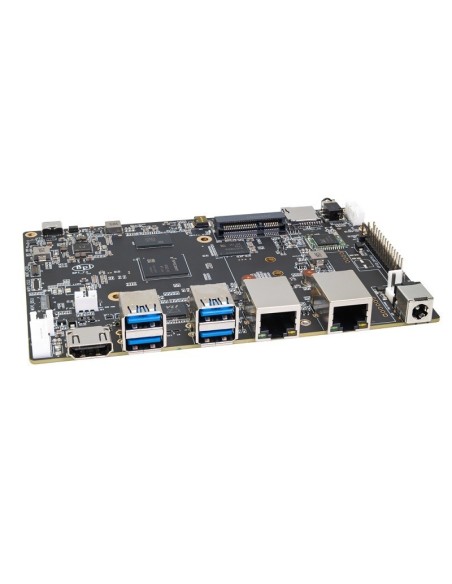

Banana Pi BPI-F3 (8GB DDR4, 8GB eMMC) Industrial Grade Board

Name: Banana Pi BPI-F3 (8GB DDR4, 8GB eMMC) Industrial Grade Board
Brand: Banana Pi
SKU: BPI-F3-88
Price: 119 USD
Availability: InStock

Directly Ships from Canada

US$119.00

Banana Pi BPI-F3 is a industrial grade RISC-V development board, it design with SpacemiT K1 8 core RISC-V chip, CPU integrates 2.0 TOPs AI computing power. 2/4/8/16G DDR and 8/16/32/128G eMMC onboard.2x GbE Ethernet prot, 4x USB 3.0 and PCIe for M.2 interface, support HDMI and Dual MIPI-CSI Camera. Each model is with the RAM and eMMC Specifications. Please chose the right model as per your project.

This model is with (8GB LPDDR4+8GB eMMC)

*Banana Pi Official Distributor

Ask a Quote

Description

SpacemiT K1 is an octa-core 64-bit RISC-V AI CPU. Base on RISC-V open instruction set architecture,we are committed to create more energy efficient and more commonly used AI processor platform,promote global open source and open ecological computing power construction. This board is with 8GB DDR4 RAM and 8GB eMMC.

SpacemiT K1 is mainly used for single board computer,network storage,cloud computer,smart robort,industrial control,edge computer,etc.

Key Features

8 core RISC-V chip, CPU integrates 2.0 TOPs AI computing power
Single-core general computing power equivalent to 1.3 times Cortex-A55
Supports 32-bit LPDDR4/4X, with a maximum of 16GB of memory
4K decoding and encoding
5-lane PCIE2.1 expansion capability
1x USB 3.0 + 2x USB 2.0 interfaces
12x UART serial ports
Operating temperature range: -40°C to 85°C

Application direction

NAS
Laptop
Intelligent robotics
Industrial control
AI edge computing

Hardware interface:

HardWare Specification of Banana Pi BPI-F3 RISC-V SBC

CPU

SpacemiT K1 Otca-core X60(RV64GCVB),RVA22,RVV1.0

2.0Tops from RlSC-V Core

GPU

IMG BXE-2-32@819MHz,32KB SLCOpenGL ES1.1/3.2EGL1.50penCL 3.0Vulkan 1.3

Memory

2/4/8/16 GB LPDDR4 (Supports up to 16G LPDDR4)

Storage

8/16/32/128 GB eMMC flash.(optional 4M SPI NOR,32M SPI NAND)

SD card

MicroSD card slot (Use SD card larger than 256M, no upper limit)

Wireless

2.4G/5G WiFi and Bluetooth 4.2

Ethernet

2x GbE Ethernet port(supports PoE with add-on PoE HAT)

HDMI

1x full-size HDMI digital Audio output(HDMI1.4,up to 1080p@60fps )

Display

MIPI DSI interface

Audio

Speaker，Mic， Earphone

Camera

MIPI-CSI, Dual-shot support

USB

4x USB 3.0 Type-A HOST, 1x USB 2.0 Type-C OTG

PCIe

PCIE2.1 2lane * 2.
PCIEB 2lane connect M.2 KEY M( Support JMB582 expansion card to SATA )
PCIEC 1lane connect MINI PCIE

GPIO

26-pin header

Buttons

Reset, Power and Burn

LED

Power Status

Power

DC in and TYPE-C in

Size

148x100 mm

Weight

200g

Product Details

CPU: Amlogic S905X3 64-bit Quad-Core Cortex-A55 (2.0xxGHz)
Memory: 4 GB LPDDR4
Storage Capacity: MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
Advanced GPU: Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
LED: Power Status and Activity status
Audio Output: 3.5mm jack and 1 x HDMI digital output
USB Ports: USB 3.0 PORT (x4)
Display Output: 1 x HDMI 2.1 (up to 4K@60Hz with HDR, EDID)
GPIO: 40 Pin Header : GPIO (x28)
Switches: Reset, Power and U-boot
OS Support: Andriod and Linux
Android and Linux
Networking: 10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle
Dimension: 85x56 mm
Weight: 48g

Reference BPI-F3-88

Reviews (0)

No reviews

BPI-F3 Metal Case

Banana Pi

BPI-F3-CASE

US$18.00

Orignal enclosure for Banana Pi F3 Industrial SBC for protection and deployment or mounting.
