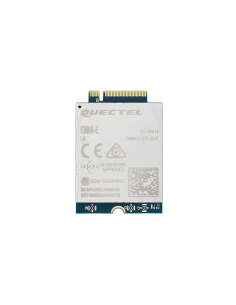

Add 4G LTE capability to your VIM3/3L single-board-computer with the Quectel EM06 4G LTE Module. This module is compatible with both the New M2X Extension and Original M2X Extension boards. Please note that Khadas' version of this 4G module does not include GNSS support.

Qualcomm Atheros AR9287
• 2.4GHz, 2x2 MIMO OFDM Technology, up to 300Mbps Physical data rate
• Single Band 2.4GHz 2x2 WiFi 4 (802.11n) MiniPCIe interface with PCIe 1.1
• IEEE 802.11n compliant & backward compatible with 802.11b/g
• Supports WPA2 encryption to help protect users’ devices from malicious attacks
• Supports IEEE 802.11d, e, h, and i standards

Ships from Canada.

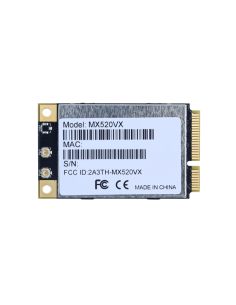

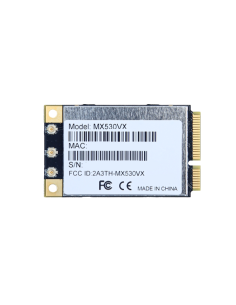

• Qualcomm Atheros QCA9880

• 5GHz, 3x3 MIMO OFDM Technology, up to 1300Mbps physical data rate
• Single Band 5GHz 3x3 WiFi 5 (802.11ac Wave 2)
• MiniPCIe interface with PCIe 1.2
Ships from Canada.

Qualcomm Atheros QCA9882

• 5GHz, 2x2 MIMO OFDM Technology, up to 867Mbps physical data rate

• Single Band 5GHz 2x2 WiFi 5 (802.11ac Wave 1)

• MiniPCIe interface with PCIe 1.2

• IEEE 802.11ac compliant & backward compatible with 802.11a/n

Manufacturer's Lead Time: 60weeks

Ships from Canada.

Qualcomm Atheros QCA9892
• 2.4GHz, 2x2 MIMO OFDM Technology, up to 400Mbps physical data rate
• 5GHz, 2x2 MIMO OFDM Technology, up to 866.7Mbps physical data rate
• Dual Band 2.4/5GHz 2x2 WiFi 5 (802.11ac Wave 1)

Manufacturer Lead Time:: 60weeks

Ships from Canada.

Qualcomm Atheros QCA9890

• 2.4GHz, 3x3 MIMO OFDM Technology, up to 600Mbps physical data rate

• 5GHz, 3x3 MIMO OFDM Technology, up to 1300Mbps physical data rate

Manufacturer Lead Time:: 60weeks

Ships from Canada.

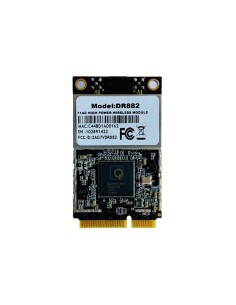

• Qualcomm-Atheros QCA9882
• 2.4GHz max 21dBm output power & 5GHz max 20dBm output power (per chain)
• IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n
• 2X2 MIMO Technology & up to 867Mbps
• MiniPCI Express 1.1 interface

Ships from Canada.

Dual Band 3×3 802.11ac Module
Qualcomm-Atheros QCA9880

Ships from Canada.

WLE200NX is a full-size mini PCIe wireless network adapter providing the leading performance of 802.11/a/b/g/n. It supports up to 300Mbps physical data rates and about 200Mbps of actual user throughput for both the uplink and downlink.

Limited Stock
Ships from Canada.

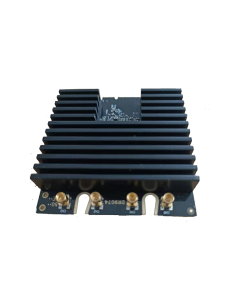

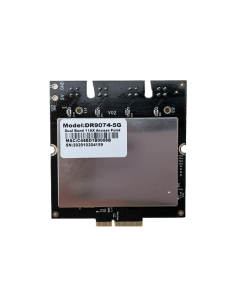

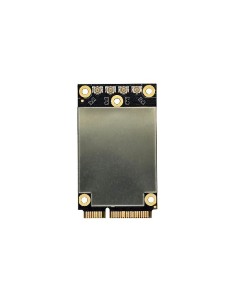

Qualcomm Atheros QCN9024/9074
• 5GHz, 4x4 MU-MIMO OFDMA Technology, up to 4804Mbps physical data rate
• Single Band 5GHz 4x4 WiFi 6 (802.11ax)
• M.2 E Key interface with PCIe 3.0
• 4 spatial streams (4SS)
• Supports Dynamic Frequency Selection (DFS)

Manufacturer Lead Time:: 60weeks

Ships from Canada.

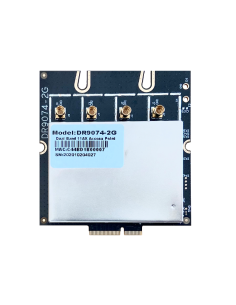

Qualcomm Atheros QCN9024/9074
• 2.4GHz, 4x4 MU-MIMO OFDMA Technology, up to 1376.4Mbps physical data rate
• Single Band 2.4GHz 4x4 WiFi 6 (802.11ax)
• M.2 E Key interface with PCIe 3.0
• 4 spatial streams (4SS)

Manufacturer Lead Time:: 60weeks

Ships from Canada.

Qualcomm Atheros QCA9377
• Single-die wireless local area network (WLAN) and Bluetooth (BT) combination solution
• Supports 1x1 IEEE 802.11b/g/n at 2.4GHz
• Supports 1x1 IEEE 802.11a/n/ac at 5GHz
• Provides a highly integrated WLAN system-on-chip (SoC)for 5 GHz 802.11ac, or 2.4 GHz/5 GHz 802.11n WLAN applications
• Supports Bluetooth 5.0 + HS, BLE, and ANT+ with backward compatibility for BT 1.x, BT 2.x, BT4.2 + Enhanced Data Rate
• Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
• Supports multiuser MIMO
• Supports BT-WLAN coexistence and ISM-LTE coexistence
• Supports IEEE 802.11d, e, h, i, k, r, v, and w
• Supports Dynamic Frequency Selection (DFS)

Manufacturer Lead Time:: 60weeks

Ships from Canada.

Dual Band Dual Concurrent 2.4GHz, 5GHz WiFi + Bluetooth 5.1 Combo m.2 Double

• Qualcomm Athereos QCA6391 "Hasting" Series
• M.2 E Key interface with PCIe 2.0
• HCI UART bluetooth host interface
• OFDMA: DPSK, QPSK, 16-QAM. 64-QAM, 256-QAM, 1024-QAM of modulation techniques

Ships from Canada.

Qualcomm Atheros QCA6174A-5.
• Supports 2x2 multiple-user, multiple-input, multiple-output(MU-MIMO) with two spatial streams.
• Supports IEEE 802.11a/b/g/n/ac WLAN standards.

Ships from Canada.

Qualcomm Atheros QCA9994

• 2.4GHz, 4x4 MU-MIMO OFDM Technology, up to 800Mbps physical data rate
• 5GHz, 4x4 MU-MIMO OFDM Technology, up to 1733Mbps physical data rate
• Dual Band 2.4/5GHz 4x4 WiFi 5 (802.11ac Wave 2)
• MiniPCIe interface with PCIe 2.0
• Heat sink allows free air operation
• Supports IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards
• Supports Dynamic Frequency Selection (DFS)

Ships from Canada.

Qualcomm Atheros QCA9984

• 2.4GHz, 4x4 MU-MIMO OFDM Technology, up to 800Mbps physical data rate
• 5GHz, 4x4 MU-MIMO OFDM Technology, up to 1733Mbps physical data rate
• Dual Band 2.4/5GHz 4x4 WiFi 5 (802.11ac Wave 2)
• MiniPCIe interface with PCIe 2.0
• Heat sink allows free air operation
• Supports IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards
• Supports Dynamic Frequency Selection (DFS)

Ships from Canada.

 Qualcomm Atheros QCA9994

• 2.4GHz, 4x4 MU-MIMO OFDM Technology, up to 800Mbps physical data rate
• Single Band 2.4GHz 4x4 WiFi 5 (802.11ac Wave 1)
• MiniPCIe interface with PCIe 2.0
• Heat sink allows free air operation
• Supports Spatial Multiplexing, Cyclic-Delay Diversity (CDD),Low-Density Parity Check (LDPC) Codes, Maximal Ratio Combining (MRC), Space Time Block Code (STBC)
• Supports IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards

Ships from Canada.

Qualcomm Atheros QCA9994

• 5GHz, 4x4 MU-MIMO OFDM Technology, up to 1733Mbps physical data rate
• Single Band 5GHz 4x4 WiFi 5 (802.11ac Wave 2)
• MiniPCIe interface with PCIe 2.0
• Full size form factor with 80+80MHz bandwidth support
• Heat sink allows free air operation
• IEEE 802.11ac compliant & backward compatible with 802.11a/n
• 4 spatial streams (4SS) at 80MHz

Ships from Canada.

Compex WLM series Wireless-G MiniPCI wireless network adapters are compact, lightweight has high-performance and low power consumption.

Compex introduces the WLM54G-30dBm-ESD wireless 802.11b/g miniPCI high power of 30dBm (1 Watt) with ESD protection.

Compex WLM54G-26dBm mini PCI wireless network adapter offers high output power of 400mW, extending the range of embedded devices much further. Combined with excellent receiver sensitivity.

WLM200NX MiniPCI wireless network adapter provides the leading performance of 802.11n/a/b/g.  It supports upto 300Mbps physical data rates and about 200Mbps of actual user throughput for both the uplink and downlink.

WLM200N5-23-ESD MiniPCI wireless network adapter provides up to 200mW output power with electrostatic discharged (ESD) protection. WLM200N5-23-ESD provides leading 802.11a/n performance.

WLM200N2-26dBm MiniPCI wireless network adapter provides the leading performance of 802.11g/n .  It supports upto 300Mbps physical data rates and upto about 200Mbps actual user throughput for both the uplink and downlink.

Winstron DCMA82 miniPCI wireless network adapter offers high output power of 400mW, extending the range of embedded devices much further. Combined with excellent receiver sensitivity, Winstron DCMA82-26dBm is the miniPCI of choice for long distance links, or those where signal levels are reduced due to minor obstructions such as tress or buildings.

DNMA-92 is an 802.11n a/b/g wifi 2x2 mini-PCI module designed specifically for directly dual-band (2.4/5GHz) integration on DSL motherboards, easing carrier manufacturer’s design cycles to accelerate time-to-market that demand robust link quality and maximum price/performance ratio.

WLE600NX is a full-size mini PCIe wireless network adapter providing the leading performance of 802.11/a/b/g/n/ac. It supports up to 300Mbps physical data rates and about 200Mbps of actual user throughput for both the up link and down link.

WLE200NX is a full-size mini PCIe wireless network adapter providing the leading performance of 802.11 a/b/g/n. It supports up to 300Mbps physical data rates and about 200Mbps of actual user throughput for both the uplink and downlink.
