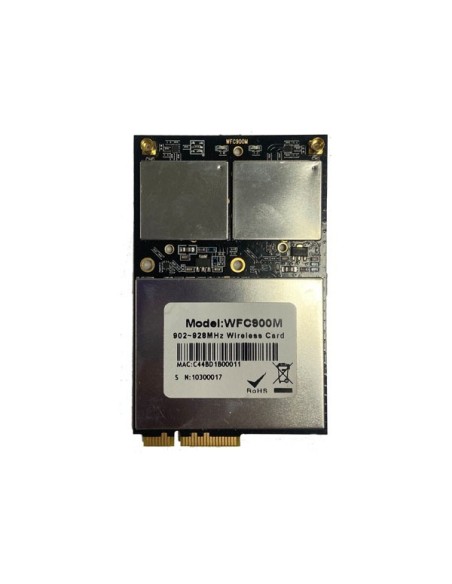

WFC900M Radio Card
WFC900M Radio Card

905~925MHz Radio Card

Ships in 10 ~ 15 Days
US$280.00

DR882-NAS based on AR9582 chipset is an enterprise wireless module integrated with 2x2 900M high power Radio card explicitly designed to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses establishment.

The minimum purchase order quantity for the product is 5.

Ask a Quote

Description

Features

  • Featuring with industrial-grade Atheros’s AR9582 chipset
  • Integrated with 2x 2 900M high power Radio Card
  • 905MHz to 925MHz Frequency Range
  • 2 x MMCX Connectors
  • 5M/10M/20MHz Bandwidth
  • Support 11AN
  • RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

.

Application

  • Security Surveillance
  • Commercial radio coverage
  • Hotel Wireless application
  • Country coverage
  • Forest fire protection engineering
  • Some special scene application

Product Details

Burst Frequency
905MHz ~ 925MHz
Supply Voltage
3.3V(MINIPCIE)
Storage Humidity
0 to 90% (non-condensing)
Operating Humidity
5 to 95% (non-condensing)
Operating Temperature
-40 ~ +60 Celsius
Storage Temperature
-65 ~ +105 Celsius
Dimension
79mm x 51mm x 10mm (W x H x D)
Antenna Connectors
2 x MMCX connectors
WFC900M
3481724172308
WFC900M
