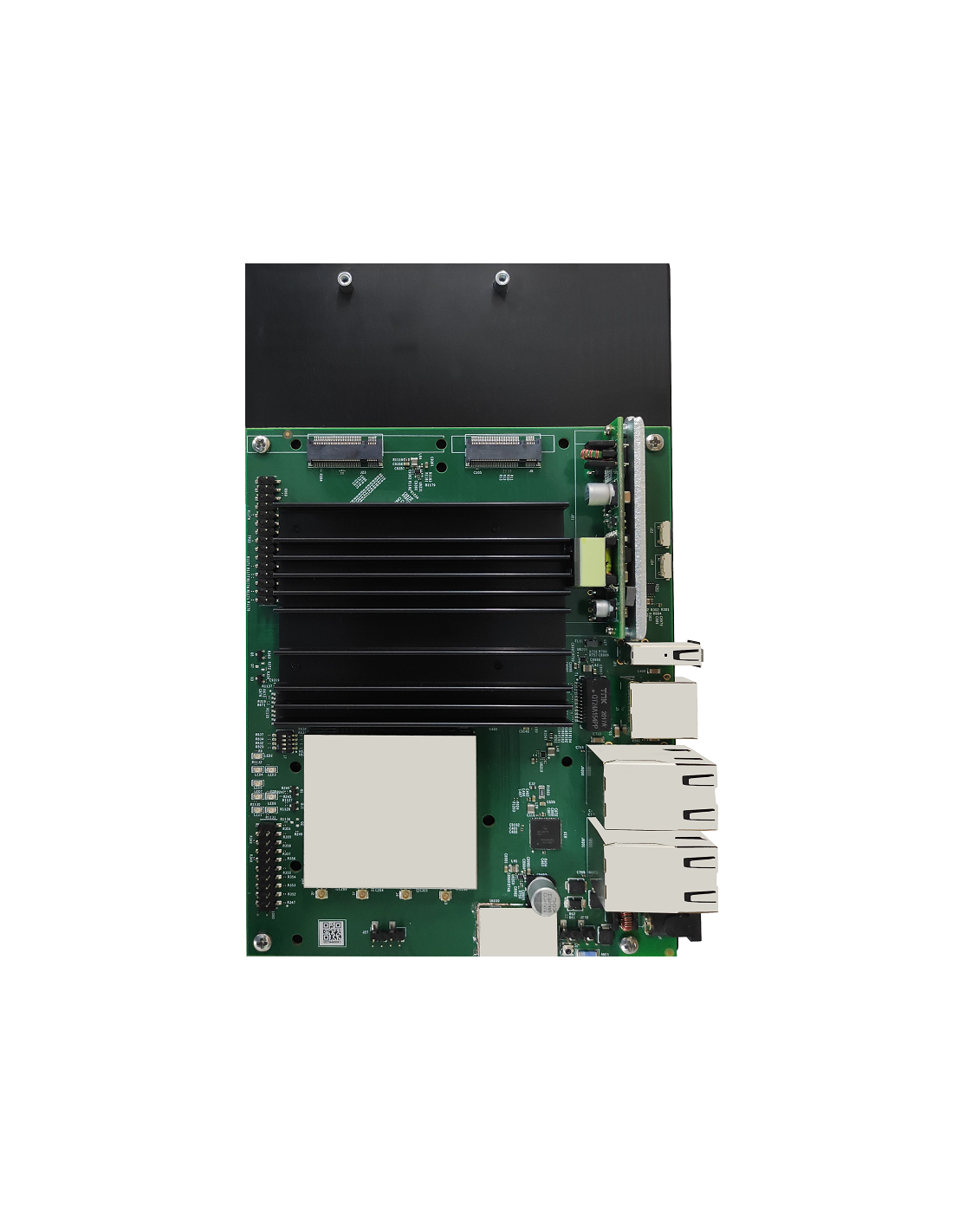

WPQ618 Embedded Board
  • New
WPQ618

Data sheet

Reference Design
Qualcomm Atheros CP01
Chipset
Qualcomm Atheros IPQ6018 Quad Core ARM 64 bit A53 1.8GHz processor ‘Cypress’ Series
NAND Flash
256MB
NOR Flash
32MB
NGFF Slot
See Datasheet
DC Power
1x DC Jack Connector: 12V
Frequency Range
2.412~2.472GHz, 5.150~5.825GHz
Wireless Standard
See Datasheet
Modulation
OFDMA: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM,1024-QAM
Bluetooth
CSR8811 BLE 4.2
Interface
See Datasheet
Operating Humidity
Operating: 5% to 95%, Storage: Max. 90%
Operating Temprature
Operating: -20ºC to 70ºC, Storage: -40ºC to 90ºC
Depth
33.9mm (With Heatsink)
Reset Button
1x H/W Reset Button, 1x S/W Reset Button
Width
128mm (With Heatsink)
Height
210mm (With Heasink)
Power Over Ethernet
Supports IEEE 802.3at 48~56V
Certificate
REACH and RoHS Compliance
Power Consumption
17.5W (Max) (Including Bluetooth)
System Memory
1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design

Download

WPJ Catalog

Download (1.45M)

WPQ618 Datasheet

Download (853.31k)

WPQ618 Hardware Guide

Download (512.04k)
