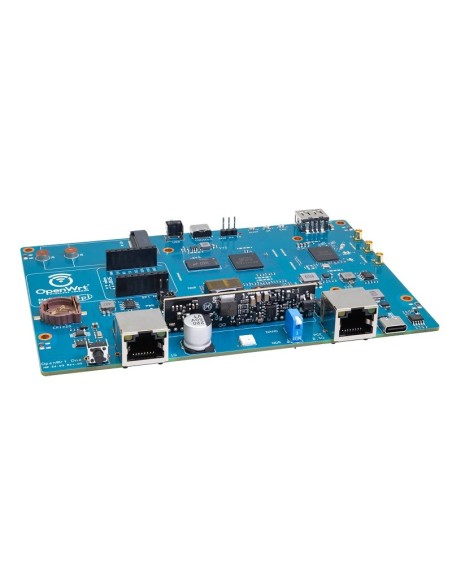

OpenWrt One/AP-24.XY router board based on MediaTek MT7981B

OpenWrt One/AP-24.XY router board based on MediaTek MT7981B

Name: OpenWrt One/AP-24.XY router board based on MediaTek MT7981B
Brand: Banana Pi
SKU: BPI-WRT-ONE
Price: 87 USD
Availability: InStock

Ships Directly from Canada

US$87.00

OpenWrt One/AP-24.XY router board based on MediaTek MT7981B (Filogic 820) SoC and MediaTek MT7976C dual-band WiFi 6 chipset

OpenWRT official board and support

MediaTek MT7981B (Filogic 820) SoC

Dual-band WiFI 6 via MediaTek MT7976C (2×2 2.4 GHz + 3×3/2×2 + zero-wait DFS 5Ghz)

1GB DDR4

1 x 2.5GbE RJ45 port and |1 x Gigabit Ethernet RJ45 port

256MB SPI NAND and 16 MB SPI NOR flash are used to make the board almost unbrickable

M.2 2242/2230 socket for NVMe SSD (PCIe gen 2 x1)

RTC support

PoE support

MikroBUS socket for expansion modules

*Banana Pi Official Distributor

Ask a Quote

Description

OpenWrt One is a device based on the MediaTek Filogic 820 SoC that has WiFi 6, dual-band, 3×3/2×2, 1 x 2.5Gbit WAN, 1 x 1Gbit LAN, 1GB DDR4 RAM, 256 MiB NAND, 16 MiB NOR, M.2 SSD and USB 2.0.

OpenWrt One is the first board design with OpenWrt opensource communtity.and designed in collaboration with Banana Pi that will also handle manufacturing and distribution of the router board. The OpenWrt One/AP-24.XY router should provide a source of income for the project, for example, to cover the cost of hosting and OpenWrt conferences, with Banana Pi selling the board through their distribution network, and for every device sold, donating to the Software Freedom Conservancy (SDC) with the funds earmarked for OpenWrt.

Key Features

OpenWrt official board and support
MediaTek MT7981B (Filogic 820) SoC
Dual-band WiFI 6 via MediaTek MT7976C (2×2 2.4 GHz + 3×3/2×2 + zero-wait DFS 5Ghz)
1GB DDR4
1 x 2.5GbE RJ45 port and |1 x Gigabit Ethernet RJ45 port
256 MB SPI NAND and 16 MB SPI NOR flash are used to make the board almost unbrickable
M.2 2242/2230 socket for NVMe SSD (PCIe gen 2 x1)
RTC support
PoE support
MikroBUS socket for expansion modules

Hardware interface

Specifications:

SoC

MediaTek MT7981B (Filogic 820) dual-core Cortex-A53 processor @ 1.3 GHz

System Memory

1GB DDR4

Storage

256 MB SPI NAND flash for U-boot and Linux

16 MB SPI NOR flash for write-protected (by default) recovery bootloader (reflashing can be enabled with a jumper)

Two types of flash devices are used to make the board almost unbrickable

M.2 2242/2230 socket for NVMe SSD (PCIe gen 2 x1)

Networking

1 x 2.5GbE RJ45 port

1 x Gigabit Ethernet RJ45 port

Dual-band WiFI 6 via MediaTek MT7976C (2×2 2.4 GHz + 3×3/2×2 + zero-wait DFS 5Ghz)

3x MMCX antenna connectors

USB

1x USB 2.0 Type-A host port

USB Type-C (device, console) port using Holtek HT42B534-2 UART to USB chip

Expansion

MikroBUS socket for expansion modules

Debugging

Console via USB-C port or 3-pin header, 10-pin JTAG/SWD header for main SoC

RTC

support RTC onboard

Misc

Reset and User buttons

Boot select switch: NAND (regular) or NOR (recovery)

2x PWM LEDs, 2x Ethernet LED (GPIO driven)

EM6324 External hardware watchdog

NXP PCF8563TS (I2C) RTC with battery backup holder for CR1220 coin-cell

Power Supply

15V USB-PD on USB-C port

Optional 802.3at/af PoE via RT5040 module

Dimensions

148 x 100.5 mm compatible with Banana Pi BPI-R4 case design

Certifications

FCC/CE/RoHS compliance

Online wiki developen documents: https://docs.banana-pi.org/en/OpenWRT-One/BananaPi_OpenWRT-One

Product Details

Reference BPI-WRT-ONE
