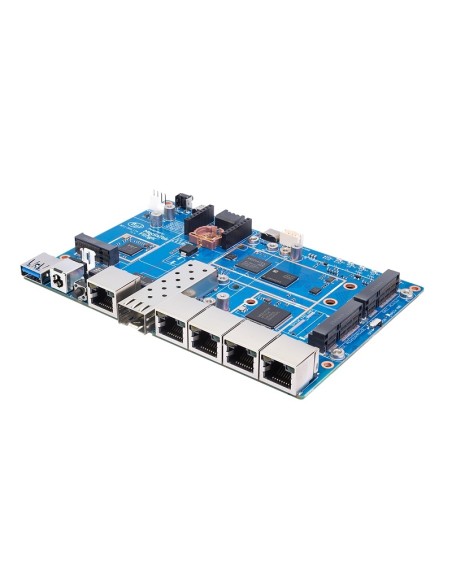

Banana Pi BPI-R4 Lite smart router board design with MediaTek MT7987A Quad-core Arm Cortex-A53,it support 2GB DDR4 and 8G eMMC Flash on board. 1 2.5G SFP and 1 2.5G RJ45 WAN , support 4 x 1G RJ45 LAN port. support M.2 for 4G/5G module.1x miniPCIe slot with PCIe3.0 2lane interface for Wi-Fi 7 NIC.
Key Features:
* MediaTek MT7987A Quad-core Arm Cortex-A53
* 2GB DDR4(SOC support can up to 4GB)
* 8GB eMMC flash
* 256MB SPI-NAND Flash
* 32MB SPI-NOR Flash
* Micro SD card slot
* 1x 2.5G SFP
* 1x 2.5G RJ45 WAN(support POE with POE Module soldered)
* 4x 1G RJ45 LAN
* 1x USB3.0 slot
* 1x M.2 KEY-B slot with USB3.0 for 5G Module
* 1x miniPCIe slot with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Option: 2x miniPCIe slots with PCIe3.0 1lane)
* 1x miniPCIe slot with USB2.0 interface
* 1x USB TypeC Debug Console
* 2x8 PIN MikroBUS Header for expanding application
Application direction:
- Internet service Router
- Wifi 7 Wireless Router
- 4G/5G Wireless Router
- Wireless Repeater
- Home security Gateway
- Home Automation
- Nas device
- Network and communication applications

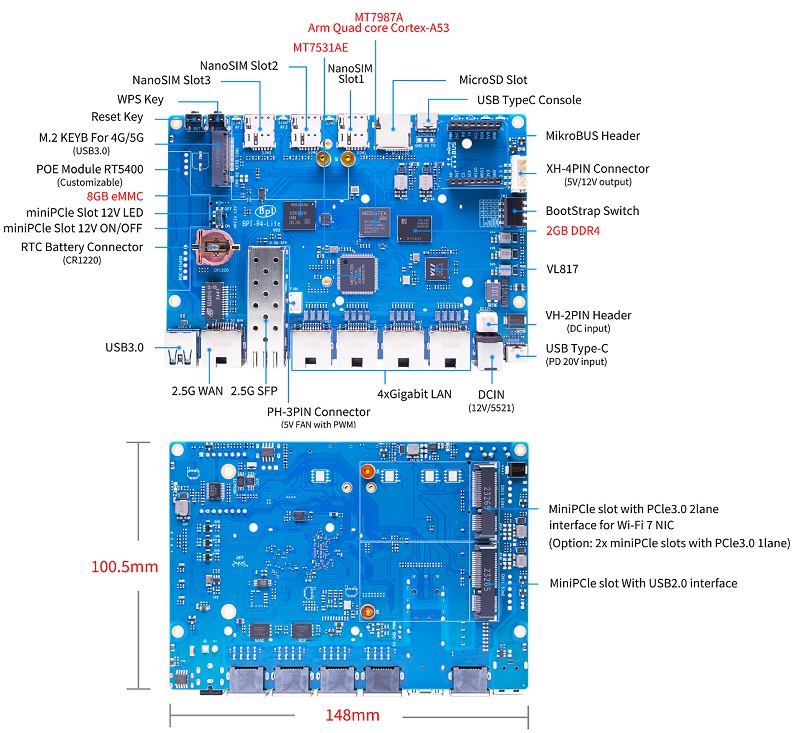

Hardware interface:
Hardware interface:
Hardware Spec:
Online Wiki documents: https://docs.banana-pi.org/en/BPI-R4_Lite/BananaPi_BPI-R4_Lite
|
CPU |
MediaTek MT7987A Quad-core Arm Cortex-A53 |
|
SDRAM |
2GB DDR4(SOC support can up to 4GB) |
|
On board Storage |
MicroSD (TF) card,8GB eMMC onboard |
|
GPIO |
2x8 PIN MikroBUS Header for expanding application,some of which can be used for specific functions including UART, I2C, SPI, PWM. |
|
On board Network |
1x 2.5G WAN and 4 x 10/100/1000Mbps Ethernet LAN |
|
SFP |
1x 2.5G SFP |
|
Wifi |
Wifi6/Wifi 7 |
|
mini PCIE |
1x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card) and 1x miniPCIe slot with USB2.0 interface |
|
M.2 interface |
1x M.2 KEY-B slot with USB3.0 for 5G Module |
|
USB |
1xUSB 3.0 slot |
|
Buttons |
Reset button,WPS botton, boot switch |
|
Leds |
Power status Led and RJ45 Led |
|
DC Power |
12V/5.2A |
|
Sizes |
100.5x148mm |
|
Weight |
250g |
Online Wiki documents: https://docs.banana-pi.org/en/BPI-R4_Lite/BananaPi_BPI-R4_Lite
