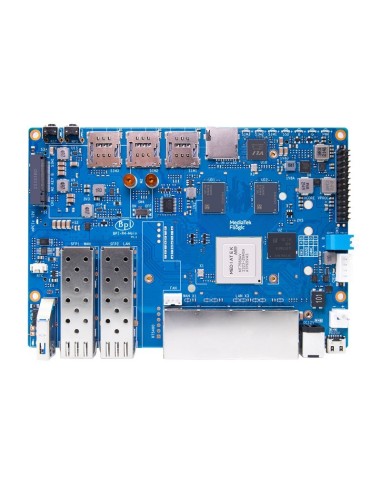

Banana Pi BPI-R4(4G DDR4+8G eMMC)

Mediatek Filogic 880. the 36Gbps Wi-Fi 7 access point/router/gateway platform delivers the fastest and most reliable connection experience

The MediaTek MT7988A is a world-Leading network processing platform for high-performance and reliable networking experiences,both in wired and wireless applications. The MT7988A comprises a rich connection interface sets include 4 Gigabit Ethernet ports. 2 USXGMII 10G interface. 4 PCIe Interfaces,and 2 USB 3.2 en1 Ports

the MT7988A further enables seamless Wi-Fi 7 tri-band,2.4 GHz.5 GHz and 6 GHz,connectivity,with its Wi-Fi 7 companion chip that features 320-MHz bandwidth,4096-QAM ,MLO,MRU,and AFC.

To answer the need of fast-evolving tunneling applications,the MT7988A comes with MediaTek Tunnel offload processor System(TOPS),which facilitates the processing of a wide range of tunneling protocols.The MT7988A optimizes networking performance with exquistitely tuned ISA of MediaTek TOPS,and is dedicated to lifting networking offloading performance to premium level.

Key Features

• MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor
• 4GB DDR4
• 8GB eMMC flash
• 128MB SPI-NAND Flash
• Micro SD card slot
• 2x 10Gbe SFP slot (option 1x 10Gbe SFP and 1x SOC embedded 2.5Gbe PHY. NOTE: Need to modify hardware)
• 4x Gbe network port
• 1x USB3.2 slot
• 1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G
• 1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD
• 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card)
• 26 PIN GPIO Header for expanding application
• POE function customizable (present version not support POE function)

.

Application direction

• Internet service Router
• Wifi 7 Wireless Router
• 4G/5G Wireless Router
• Wireless Repeater
• Home security Gateway
• Home Automation
• Nas device
• Network and communication applications

.

Hardware Interface

.

Hardware Spec

• CPU: MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor
• SDRAM: 4 GB DDR4
• On board Storage: MicroSD(TF) card,8GB eMMC onboard
• GPIO: 26 Pin GPIO,some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
• On board Network: 4 Port 10/100/1000Mbps Ethernet
• SFP: 2x10G SFP or 1x10G SFP and 1x 2.5GbE
• Wifi: Wifi6/Wifi 7
• mini PCIE: 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card)
• M.2 interface: 1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G,1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD
• USB: 1xUSB 3.2 slot
• Buttons: Reset button,WPS botton, boot switch
• Leds: Power status Led and RJ45 Led
• DC Power: 12V/5.2A or 19V 3.2A
• Sizes: 100.5x148mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2
• Weight: 250g
