Features

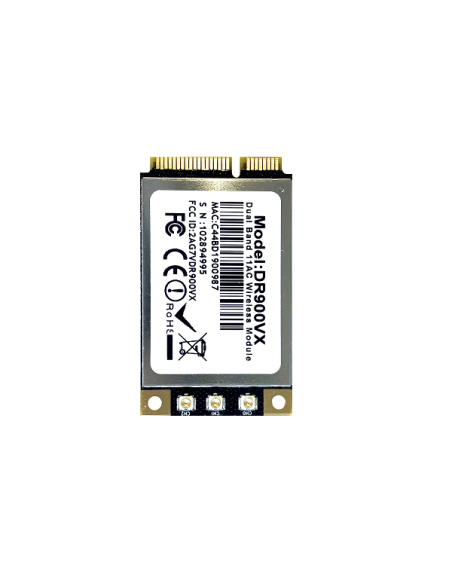

- Qualcomm-Atheros QCA9880 chipset
- 2.4GHz max 26dBm & 5GHz max 25dBm output power
- IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n
- 3x3 MIMO Technology, up to 1.3Gbps
- Mini PCI Express edge connector
- RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
- Supports Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes, Maximal Ratio Combining (MRC), Space Time Block Code (STBC)
- Supports IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards
- Supports Dynamic Frequency Selection (DFS)
- Cards are individually calibrated for Quality Assurance
.
Applications
- Security Surveillance
- Commercial radio coverage
- Hotel Wireless application
- Country coverage
- Forest fire protection engineering
- Some special scene application
.
Specification
- Chipset: QCA9880
- Host Interface: Mini PCI Express 1.1 Standard
- Antenna Connector: 3 x UF.L
- Frequency Range: 2.4GHz: 2.412GHz to 2.472GHz, 5GHz: 4.920GHz to 5.825GHz
- Operating Voltage 3.3V DC
- Modulation Techniques:OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM,256-QAM
- Environmental Temperature Operating: -40°C to 70°C, Storage: -40°C to 90°C
- Environmental Humidity, non-condensing Operating: 5% to 95%, Storage: Max. 90%
- ROHS Compliance: YES
- Dimensions (W×H×D): 30.0mm × 50.9mm × 3.2mm
