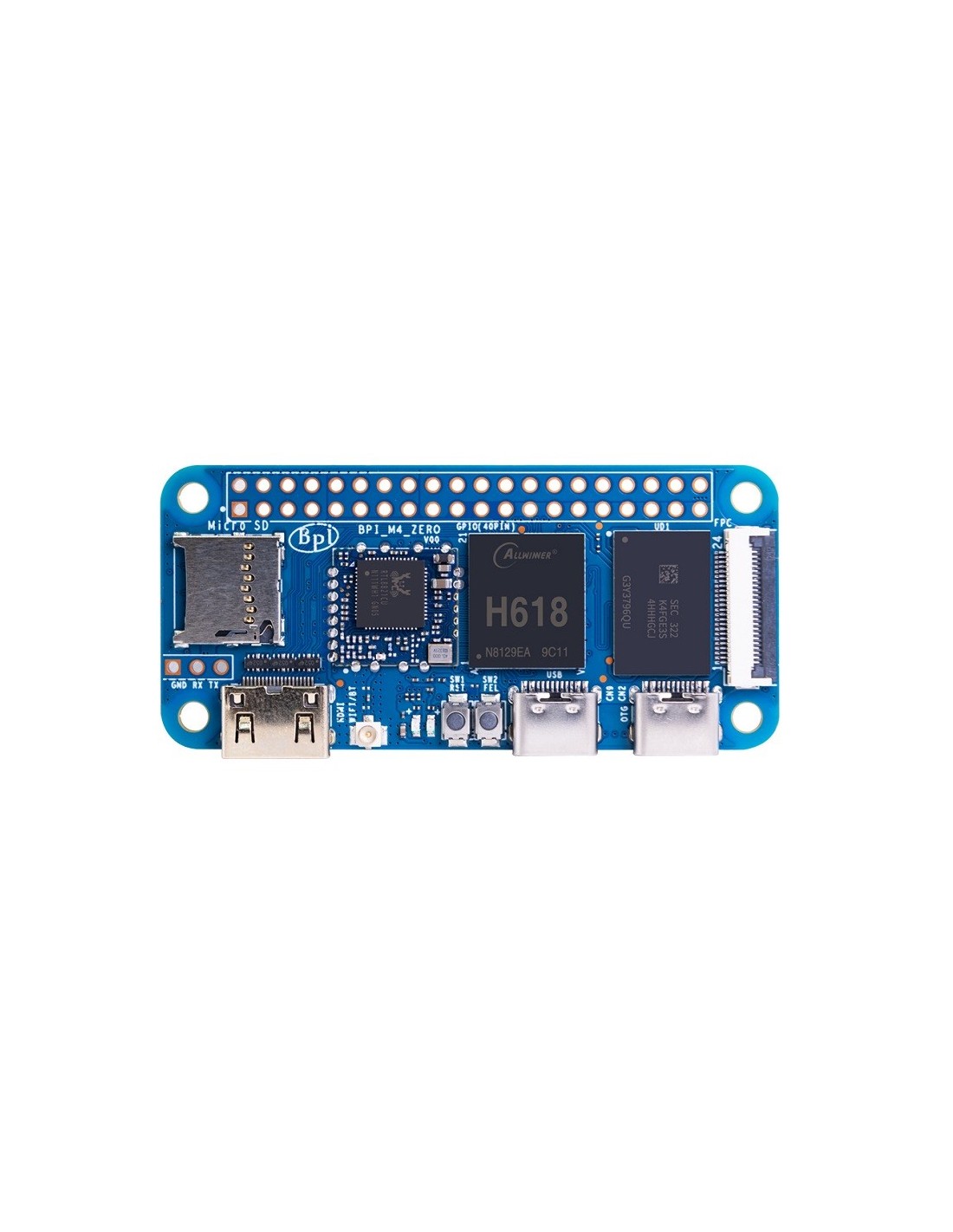

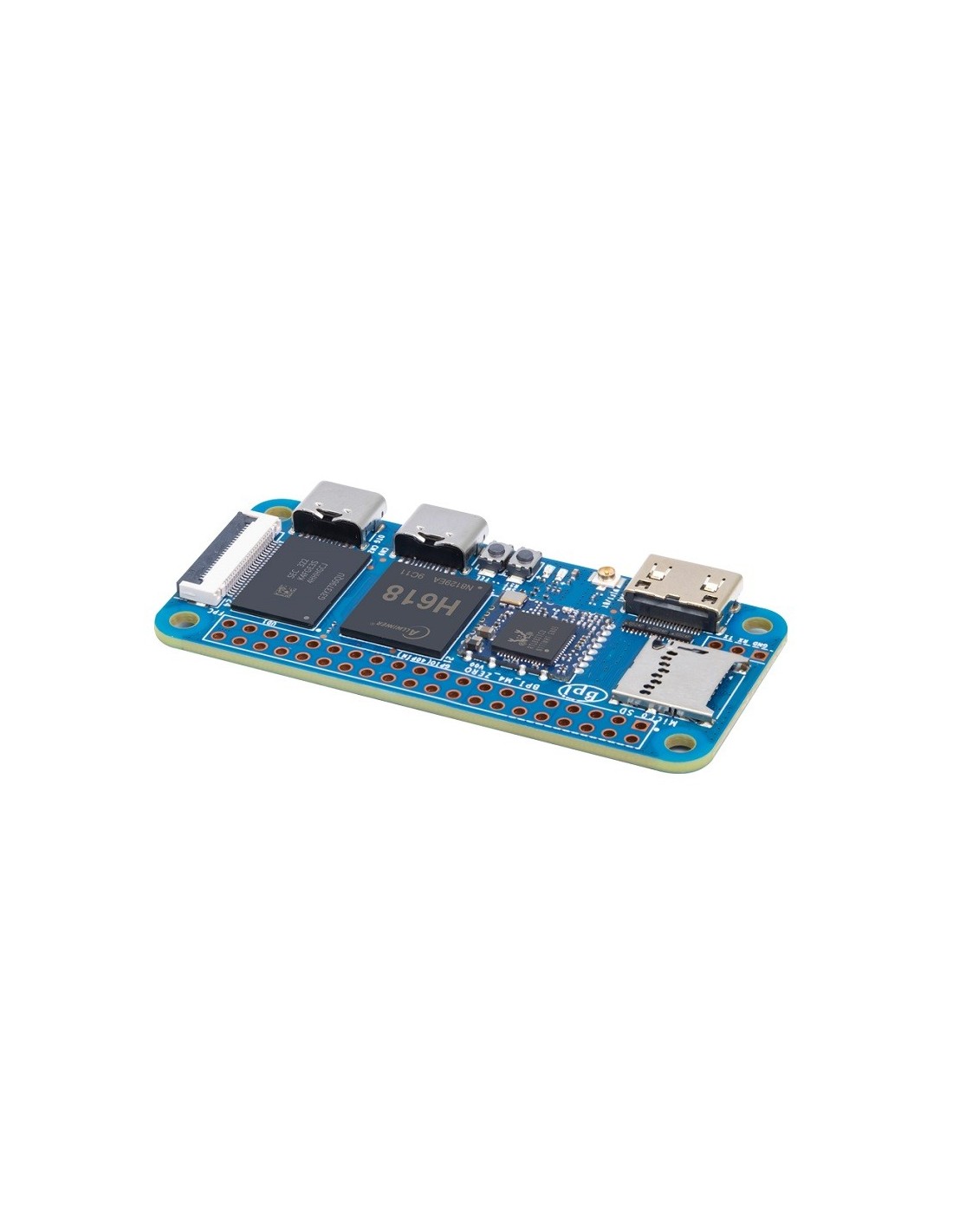

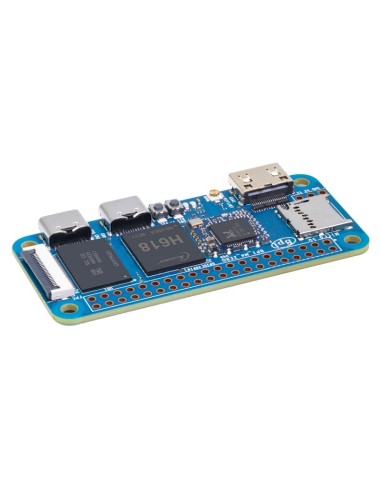

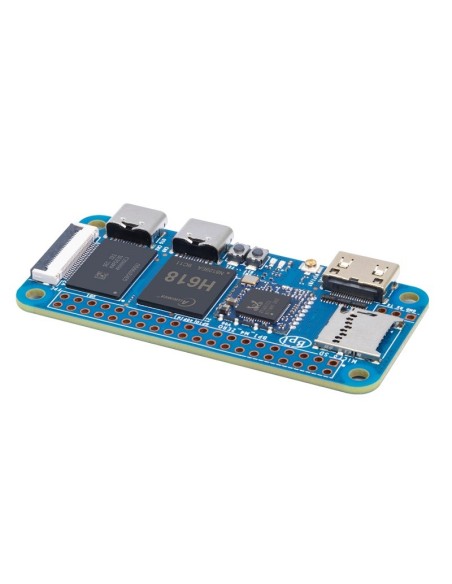

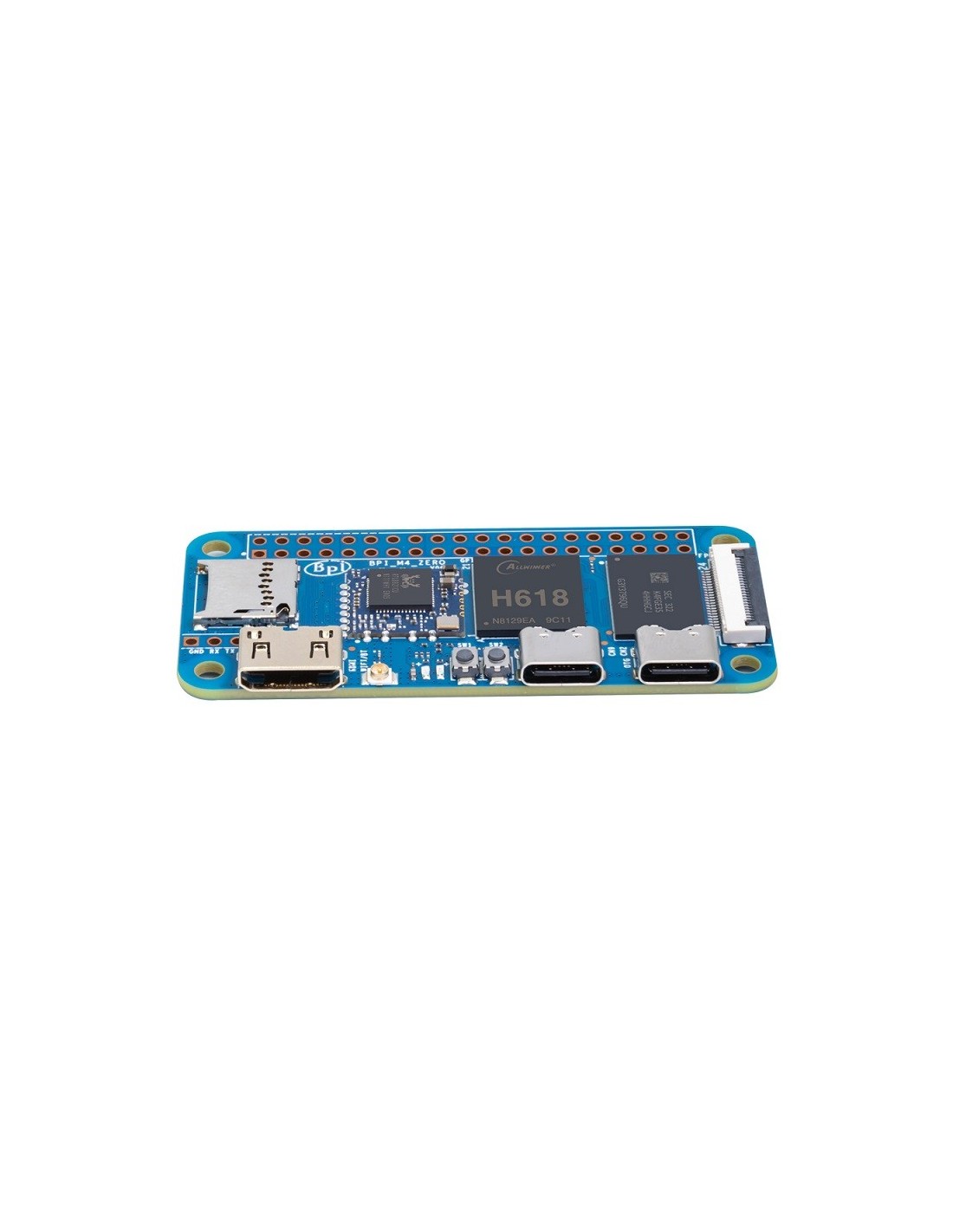

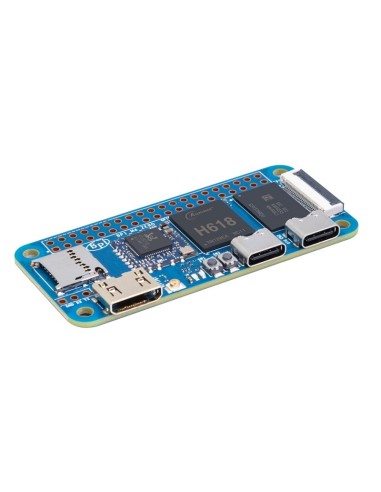

Banana Pi BPI-M4 Zero (4G DDR3+32G eMMC)

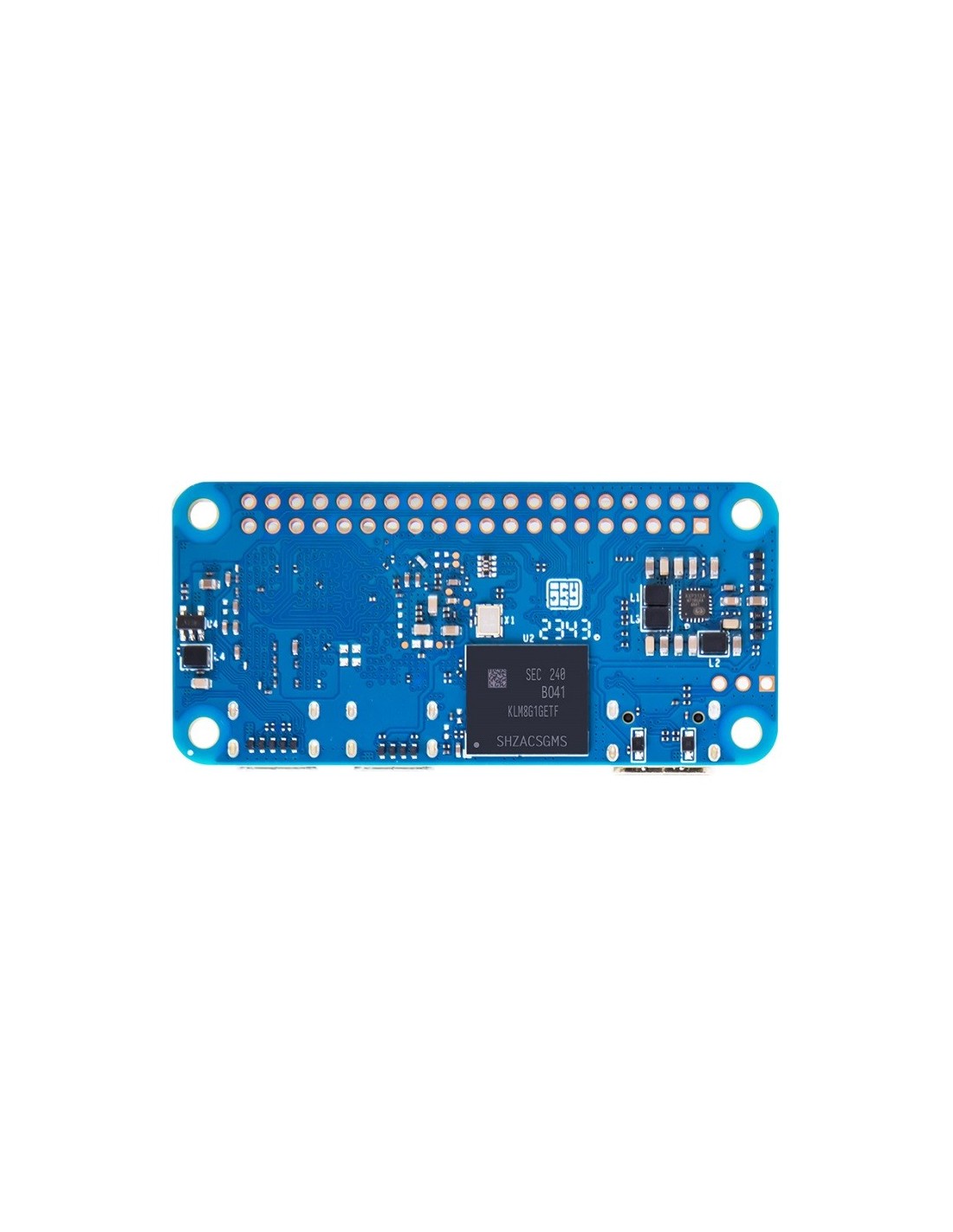

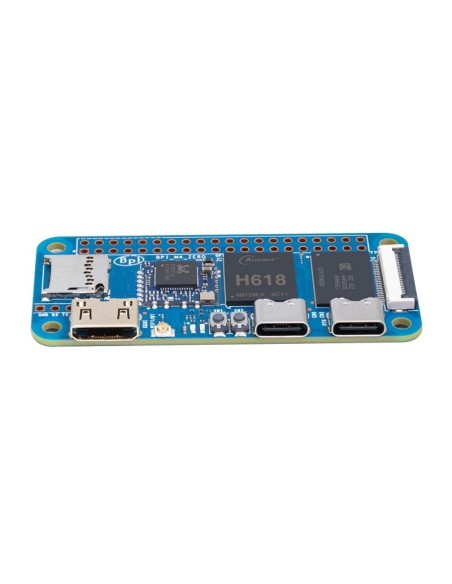

Banana Pi BPI-M4 Zero (4G DDR3+32G eMMC) Back View

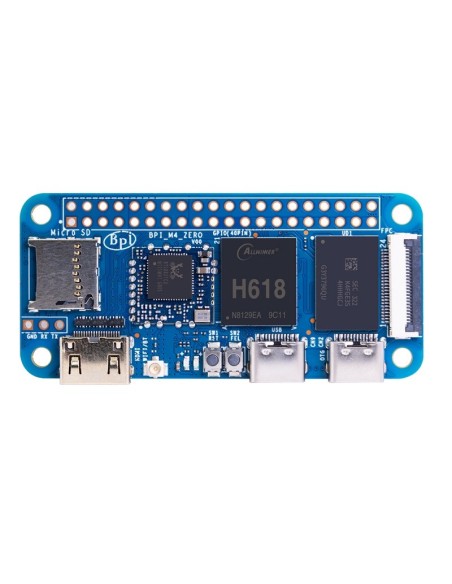

Banana Pi BPI-M4 Zero (4G DDR3+32G eMMC) Top View

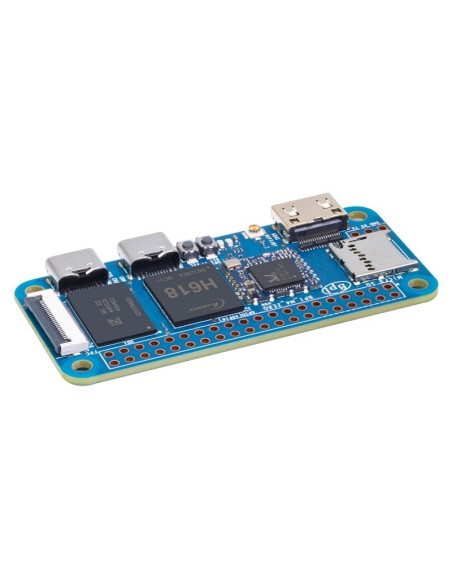

Banana Pi BPI-M4 Zero (4G DDR3+32G eMMC)

Name: Banana Pi BPI-M4 Zero (4G DDR3+32G eMMC)
Brand: Banana Pi
SKU: BPI-M4-Zero
Price: 51.2 USD
Availability: InStock

Ships Directly from Canada

US$51.20

Banana Pi BPI-M4 Zero (2G DDR3+8G eMMC)is the successor model of M2 Zero. It has a huge improvement in performance. The SOC is upgraded to H618 and the CPU frequency is increased by 25%. The memory is upgraded to DDR4, the capacity is quadrupled, and 8G eMMC is added. It supports 5G WiFi, and the USB interface has also been upgraded to type-C.

*BananaPi Official Distributor

Ask a Quote

Description

It has same form factor and 40-pin connector as the Raspberry Pi Zero W, and it can fit most of the RPI Zero W cases and accessories..

Key Features

Allwinner H618, Quad-core ARM Cortex™-A53 processor
ARM Mali G31 GPU
2.4G/5G WIFI & Bluetooth 4.2
2G LPDDR4 RAM
8G eMMC flash memory
1x USB2.0 Type-C OTG, 5V power supply
1x USB2.0 Type-C
1x miniHDMI 2.0a
1x 24-pin FPC connector
1x USB2.0 (in FPC connector)
1x 100Mbps Ethernet (in FPC connector)

.Hardware interface

.Hardware Specifications

CPU: Allwinner H618, Quad-core ARM Cortex™-A53 processor, 64-bit, up to 1.5GHz
GPU: ARM Mali G31 GPU
Memory: 2 GB LPDDR4
Storage: 8G eMMC flash
SD card: MicroSD card slot, SDIO3.0
Wireless: 2.4G/5G WiFi and Bluetooth 4.2and Bluetooth 4.2
HDMI: 1x miniHDMI 2.0a (up to 4K@60Hz with HDR10, CEC, DDC, SCDC), HDMI digital Audio output
USB: 1x USB2.0 Type-C HOST, 1x USB2.0 Type-C OTG
40-pin header
28 pins GPIO and Power (+5V, +3.3V and GND)
UART, SPI, TWI/I²C, PWM, PCM/I²S
24-pin FPC
0.5mm pitch FPC connector， 1x USB2.0, 1x IR, 1x 100Mbps Ethernet
9 pins GPIO, UART,TWI/I²C, PWM, PCM/I²S
Buttons: Reset, FEL
LED: Power Status and Activity status
Power: 5V@3A via USB Type-C
Size: 65mm × 30mm

Product Details

CPU: Allwinner H618, Quad-core ARM Cortex™-A53 processor, 64-bit, up to 1.5GHz
Memory: 2 GB LPDDR4
Storage Capacity: 8G eMMC flash
Advanced GPU: ARM Mali G31 GPU
LED: Power Status and Activity status
USB Ports: 1x USB2.0 Type-C HOST, 1x USB2.0 Type-C OTG
GPIO: 40-pin header 28 pins GPIO
Power: 5V@3A via USB Type-C
Wi-Fi: 2.4G/5G WiFi and Bluetooth 4.2
Bluetooth: 4.2
HDMI: 1x miniHDMI 2.0a (up to 4K@60Hz with HDR10, CEC, DDC, SCDC), HDMI digital Audio output
SD Card Slot: MicroSD card slot, SDIO3.0

Reference BPI-M4-Zero
