Directly Ships from Canada
US$63.00

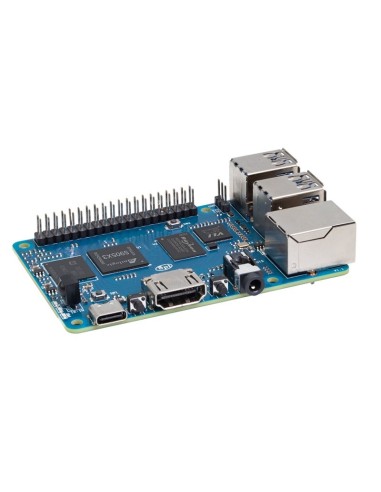

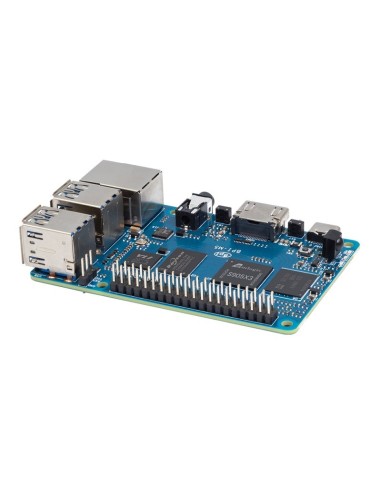

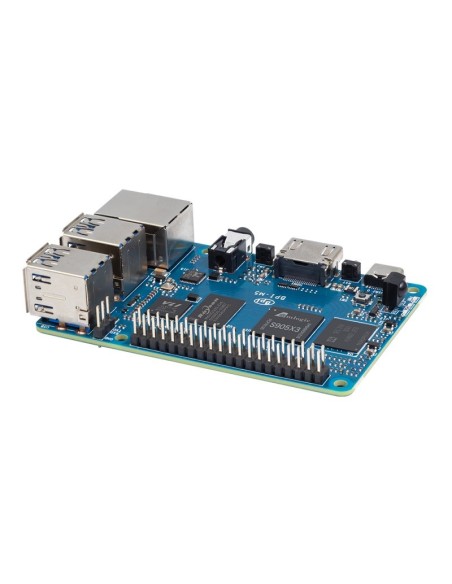

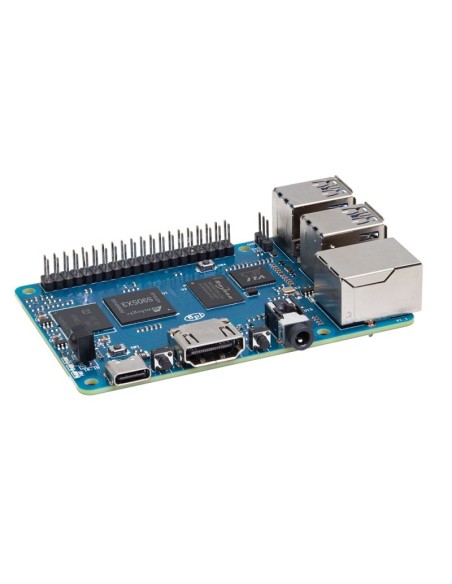

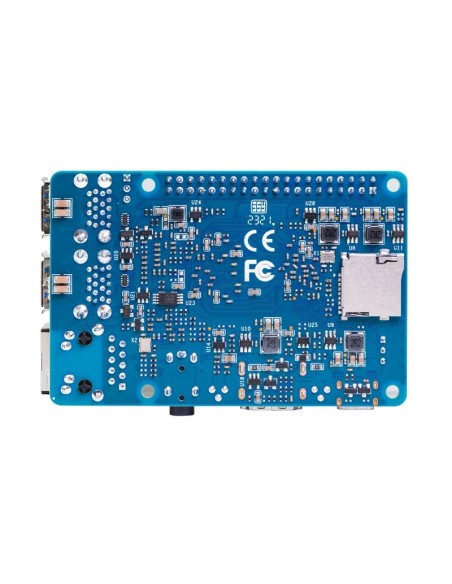

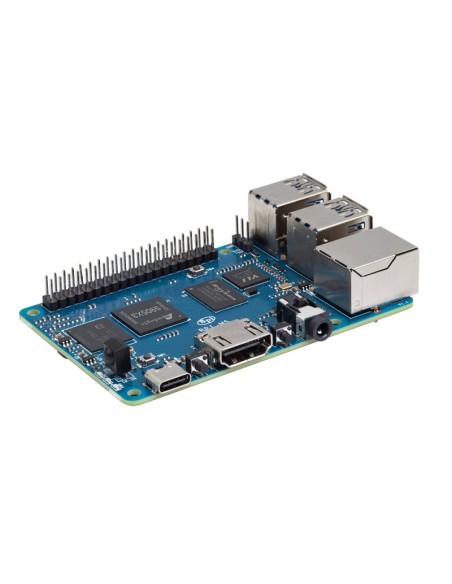

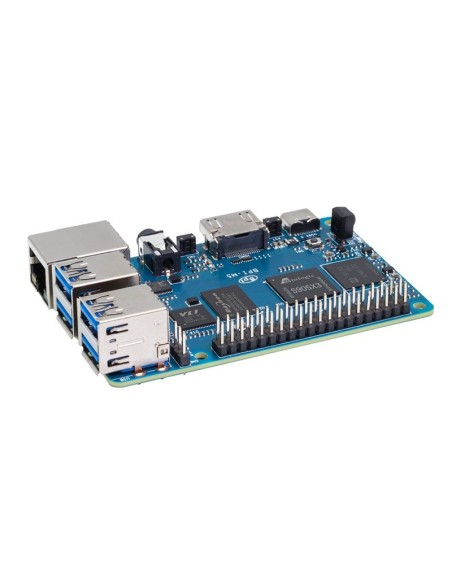

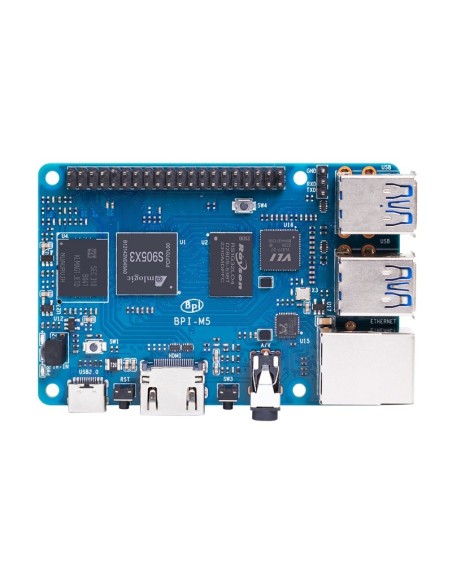

Banana Pi BPI-M5 is the next generation single board computer from Banana Pi in 2020. It is powered by Amlogic S905X3 quad-core Cortex-A55 (2.0 XXGHz) processor.Onboard 4GB LPDDR4 memory and 8GB EMMC storage, and supports 4 USB 3.0 interface, a gigabit network port.

*Banana Pi Official Distributor

Description

Key Features

  • Amlogic S905X3 64-bit Quad core Cortex-A55 (2.0xxGHz)
  • Mali-G31 GPU
  • 4GB LPDDR4
  • 16GB eMMC flash
  • 4 USB 3.0
  • 1 GbE ethernet
  • HDMI output

.

Hardware interface


.

Hardware Specifications

  • CPU: Amlogic S905X3 64-bit Quad-Core Cortex-A55 (2.0xxGHz)
  • GPU: Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
  • Memory: 4 GB LPDDR4
  • Storage: MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
  • Network: 10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle
  • Video Output(s): 1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)
  • Audio Output(s): 3.5mm jack and 1 x HDMI digital output
  • USB ports: USB 3.0 PORT (x4)
  • GPIO: 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND).GPIO pins can be used for UART, I2C, SPI or PWM
  • Switches: Reset, Power and U-boot
  • LED: Power Status and Activity status
  • Power Source: 5 volt @3A via Micro USB (TYPE C)
  • Size & Weight: 85x56 mm, 48g
  • OS: Android and Linux

Product Details

CPU
Amlogic S905X3 64-bit Quad-Core Cortex-A55 (2.0xxGHz)
Memory
4 GB LPDDR4
Storage Capacity
MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
Advanced GPU
Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
LED
Power Status and Activity status
Audio Output
3.5mm jack and 1 x HDMI digital output
USB Ports
USB 3.0 PORT (x4)
Display Output
1 x HDMI 2.1 (up to 4K@60Hz with HDR, EDID)
GPIO
40 Pin Header : GPIO (x28)
Switches
Reset, Power and U-boot
OS Support
Andriod and Linux
Android and Linux
Networking
10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle
Dimension
85x56 mm
Weight
48g
