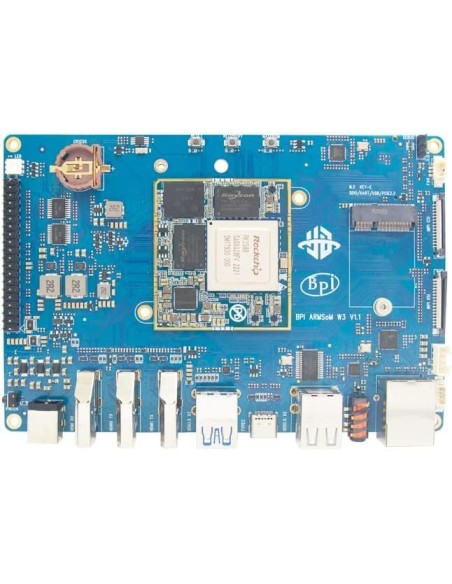

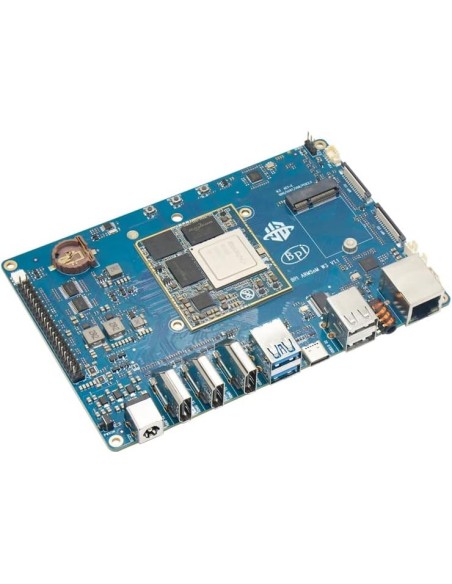

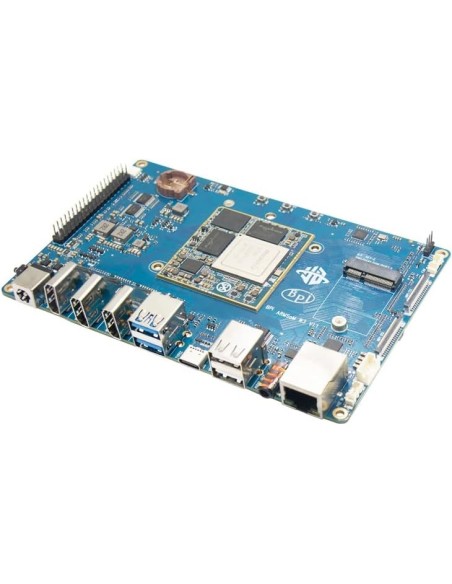

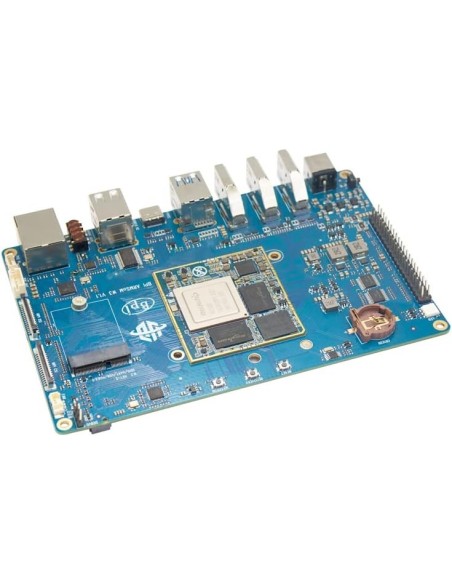

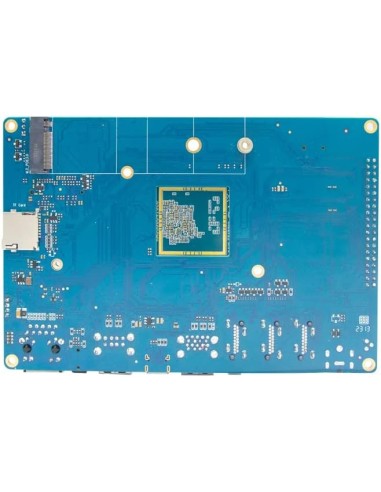

Banana Pi BPI-W3 (8G DDR4+32G eMMC) Top View

Banana Pi BPI-W3 (8G DDR4+32G eMMC)

Name: Banana Pi BPI-W3 (8G DDR4+32G eMMC)
Brand: Banana Pi
SKU: BPI-W3
Price: 195 USD
Availability: InStock

Ships directly from Canada.

US$195.00

The Banana Pi BPI-W3 is a router based development board, it design with Rochchip RK3588 quad ARM Cortex-A76 and quad Cortex-A55 consists of an eight-core CPU processor. ,6Tops@INT8 NPU,8G memory,32G eMMC storage on board .which can run on a variety of open source operating systems including OpenWrt, Android, and linux. It has 1 Gigabit LAN ports, 1 Gigabit WAN., it also with 2 HDMI out and 1 HDMI in port.

* BananaPi Official Distributor

Ask a Quote

Description

Key Features：

Rockchip RK3588 quad ARM Cortex-A76 and quad Cortex-A55 consists of an eight-core CPU processor
ARM Mali-G610 MP4,
NPU for AI : 6Tops@INT8
8G RAM and 32G eMMC flash onbord
1x 2.5Gbps Ethernet
support HDMI in and HDMI out

Hardware interface

Hardware Spec

SoC: RockChip RK3588
CPU: quad ARM Cortex-A76 and quad Cortex-A55 consists of an eight-core CPU processor
GPU: ARM Mali-G610 MP4,support OpenGL ES 1.1/2.0/3.2，OpenCL 2.2，Vulkan 1.1 Embedded high-performance 2D acceleration hardware
NPU: 6Tops@INT8 ，
Video decode: Caffe/TensorFlow/TFLite/ONNX PyTorch/Keras/Darknet mainstream architecture model of a key transformation VPU support 8 k 60 FPS h. 265 / AVS2 Profile0 / VP9 video decoding
Video encode: Supports 8K 30FPS H.265/H.264 video encoding
RAM: support 2GB / 4GB / 8GB LPDDR4C
eMMC flash: support 32GB / 64GB / 128GB eMMC
System: Android 12.0 ,Linux support
Power: current and voltage 12V/2A
operating temperature: 0℃ ～ 80℃（Measurement can reach -20 degrees to 85 degrees）

Product Details

SoC: RockChip RK3588
CPU: quad ARM Cortex-A76 and quad Cortex-A55 consists of an eight-core CPU processor
NPU: 6Tops@INT8
RAM: support 2GB / 4GB / 8GB LPDDR4C
EMMC: support 32GB / 64GB / 128GB eMMC
Advanced GPU: ARM Mali-G610 MP4,support OpenGL ES 1.1/2.0/3.2，OpenCL 2.2，Vulkan 1.1 Embedded high-performance 2D acceleration hardware
Video Characteristics: Video decode: Caffe/TensorFlow/TFLite/ONNX PyTorch/Keras/Darknet mainstream architecture model of a key transformation VPU support 8 k 60 FPS h. 265 / AVS2 Profile0 / VP9 video decoding
Video encode: Supports 8K 30FPS H.265/H.264 video encoding
Power: current and voltage 12V/2A
OS Support: Android 12.0 ,Linux support
Operating Temperature: 0℃ ～ 80℃

Reference BPI-W3
