Intel® Atom™ C2358 2-Core 6 LAN (FW2700)

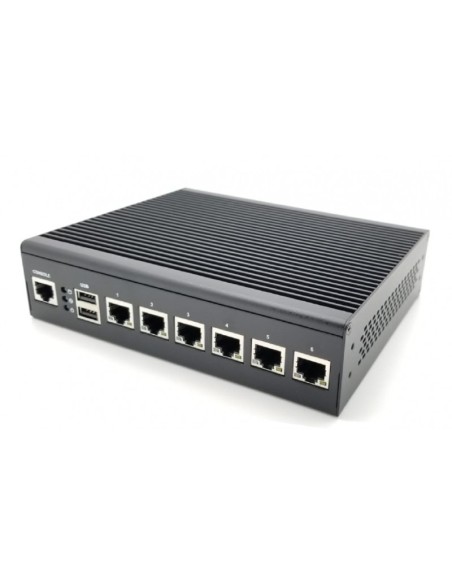

FW2700 - Compact Network Appliance

Name: FW2700 - Compact Network Appliance
Brand: CorpShadow
SKU: FW2700
Price: 575 USD
Availability: InStock

In Stock

US$575.00

Ships in 5~7 Days

The FW2700 is a compact and versatile computer system capable and flexible system with a range of features that make it suitable for a variety of applications, including networking, security, and industrial automation.

Rack Mount:

Ask a Quote

Description

Atom C2358 CPU built-in Intel Quick Assist Crypto acceleration
Fanless design
Optional rack mounting kit support
Screw-locked power plug
Intel AES-NI new instructions, improves security without slowing response times
Support up to 8 GB DDR3 Memory
Intel i210AT LAN controller
Support Gen.2 LAN Bypass function

The FW2700 is a fanless desktop network security system utilizing the cutting edge capabilities of the Intel Rangeley platform (Based on Intel Atom C2358 2-core CPU, System-On-Chip solution). The Atom C2358 CPU built-in Intel Quick Assist Crypto acceleration, it targets at Entry-level UTM, Firewall, VPN, IPS and WAN optimization applications in SMB environment. The system built-in 6 GbE LAN ports, 1 x Non-ECC DDR3 1333 DIMMs, and 36 W power adapter.

Overview:

Barebone System
Peace of mind for future expansion.
Low power consumption to achieve best ROI.
Embedded ultra-low voltage Intel Atom 1.8 GHz CPU with Intel ICH8M system logic.
6 Gigabit Ethernet (Flexibility to configure as LAN or WAN) ports with by-pass capability.
Console cable included for troubleshooting or development purposes.

Does Include:

1x server system
1x Power supply
Null Modem Cable to connect to the serial console.

Product Details

CPU: 2-core Intel® Atom™ processor C2358 (Codenamed "Rangeley")
RAM: Single Channel DDR3 1333 MHz, 1.5 V (Select size from Options)
Max. RAM Support: 8GB
Storage Capacity: (Select from options)
Storage Controller: 1 x SATA, 1 x CF Slot
Ethernet Ports: 6 x GbE RJ-45 onboard
Ethernet Controller: 2 x Intel i210AT, 1 x Marvell 88E1543
USB Internal Connector: 2 x Type A
Socket Contact: Memory Socket 1 x 204-pin DIMM
Firmware: AMI BIOS 16MB
Watchdog: Yes
Internal RTC: Yes
Expansion: 1 x Mini-PCIe
OS Support: Linux Kernel 2.6 or above
Depth: 5.67" (145.5 mm)
Width: 6.90" (177 mm)
Height: 1.72" (44 mm)
Storage Humidity: 5% to 95% (non-condensing)
Operating Humidity: 5% to 90% (non-condensing)
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 70°C
Certificate: CE Class B, FCC Class B, RoHS
Color: Black
Return Warranty: No Returns
Manufacturer Warranty: 1 Year Limited Warranty
Weight: 1.2 kb (2.64 lbs)
Security Acceleration: Intel QuickAssist Technology

Reference FW2700

EAN13 3481724172605

MPN FW2700

Attachments

FW2700 Datasheet

Download (2.6MB)
