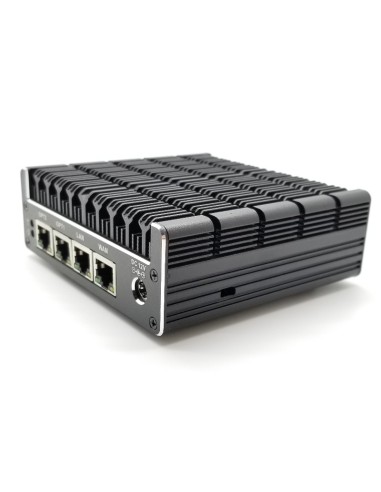

FW3160 Compact Fanless Appliance

The FW3160 is a versatile network appliance that can be used for a variety of applications, including as a firewall, thin client, network appliance, desktop, display client, and CPE. With its small form factor and fan-less design, it is a perfect choice for environments where space is limited or noise needs to be minimized.

The appliance is powered by an Intel Celeron J3160 quad-core processor with a base clock speed of 1.6GHz and Turbo Boost up to 2.24GHz. It also has an integrated Intel chipset, which ensures reliable performance and compatibility with various operating systems. The system memory includes 1x DDR3L 1600MHz SODIMM, which can support up to 8GB of RAM.

The FW3160 features a single mSATA slot for storage, making it easy to upgrade or replace the drive. It also comes with two HDMI display ports, allowing it to support dual displays. Additionally, the appliance has a console port and a serial port (RJ45), providing flexibility for managing and connecting to other devices.

For security purposes, the FW3160 includes Intel AES-NI security acceleration, which can provide hardware-based encryption and decryption for improved performance and security. The appliance is compatible with various operating systems, including Windows 10, Linux Kernel 2.6 and above, PfSense, OPNSense, and more.

With a weight of only 0.5 kg and dimensions of 107.5mm x 39mm x 115mm, the FW3160 is highly portable and can be easily deployed in different locations. It requires a DC 12V input power and has an operating humidity range of 5% to 95% non-condensing. The appliance comes with a standard 30-day return warranty, ensuring customer satisfaction and peace of mind.

Note* WLE900Vx Network Card is not compatible

Main Features

•   Intel® Celeron J3160 Processor (4 Cores)
•   Compact fanless design

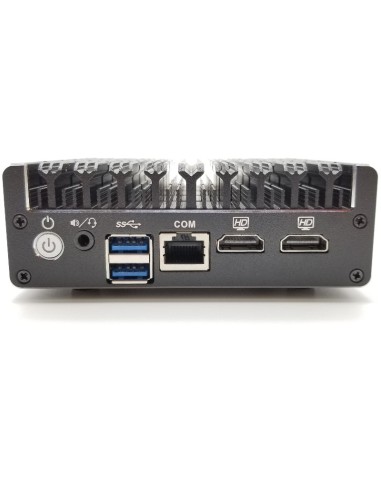

•   2 x HDMI Ports, 1 x Power Adapter included, 1 x Audio Jack
•   4 x GbE Intel LAN ports, 2 x USB 3.0, 2 x antenna hole
•   1 x Mini-PCIe slot for Wi-Fi, 1 x mSATA mini slot for storage
•   1 x DDR3L-1600, non-ECC, max. capacity up to 8 GB
•   1 x RJ45 Console Port (Console Cable not included)
