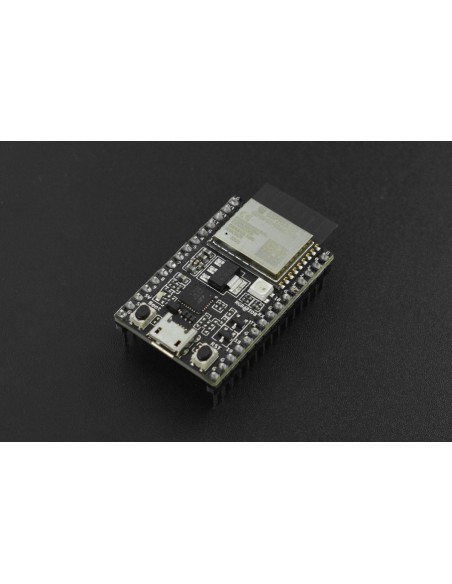

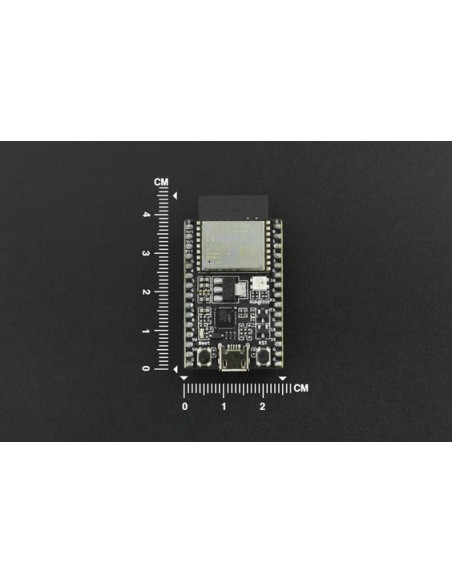

ESP32-C3-DevKitC-02 Development Board

Name: ESP32-C3-DevKitC-02 Development Board
Brand: DFRobot
SKU: DFR0808
Price: 17.05 USD
Availability: InStock

Ships in 7 Days

US$17.05

The ESP32-C3-DevKitC-02 is your gateway to streamlined development, powered by the versatile ESP32-C3-WROOM-02 module. Boasting integrated Wi-Fi and Bluetooth LE capabilities, this board offers seamless connectivity for your projects. With most I/O pins conveniently accessible via pin headers, interfacing with peripherals is a breeze. Whether you prefer jumper wires or a breadboard setup, the ESP32-C3-DevKitC-02 simplifies the development process, empowering you to bring your ideas to life effortlessly.

The minimum purchase order quantity for the product is 5.

Ask a Quote

Description

Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C3-DevKitC-02 on a breadboard.

Description of Components

Key Component	Description

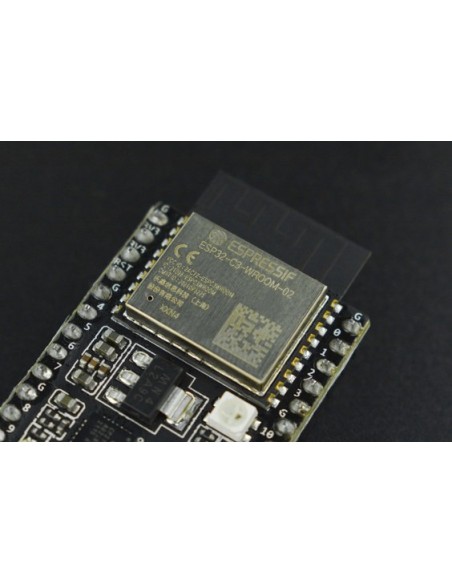

ESP32-C3-WROOM-02	ESP32-C3-WROOM-02 from Espressif is a powerful and general-purpose module that offers Wi-Fi and Bluetooth LE coexistence. It has a PCB antenna and a 4 MB SPI flash.
5 V to 3.3 V LDO	Power regulator that converts a 5 V supply into a 3.3 V output.
5 V Power On LED	Turns on when the USB power is connected to the board.
I/O Connector	All available GPIO pins (except for the SPI bus for flash) are broken out to the pin headers on the board.
Boot Button	Download button. Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port.
Micro-USB Port	USB interface. Power supply for the board as well as the communication interface between a computer and the ESP32-C3 chip.
Reset Button	Press this button to restart the system.
USB-to-UART Bridge	Single USB-to-UART bridge chip provides transfer rates up to 3 Mbps.
RGB LED	Addressable RGB LED, driven by GPIO8.

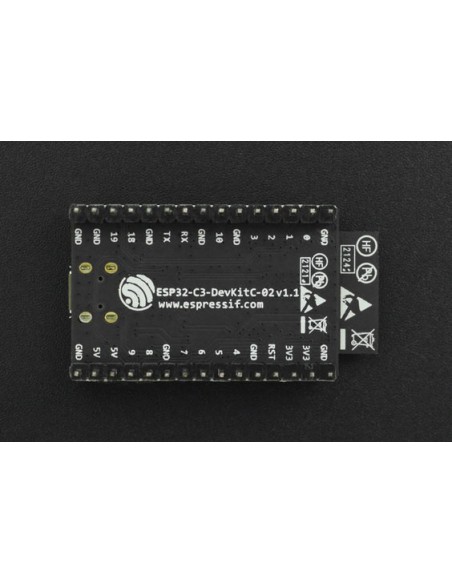

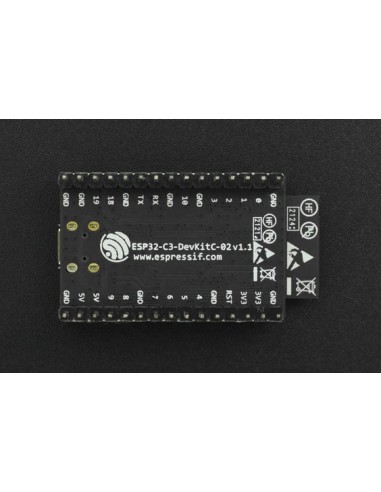

Pin Header

FEATURES

Integrates complete Wi-Fi functions.
Integrates complete Bluetooth LE functions.
.

SPECIFICATION

ESP32-C3 embedded, 32-bit RISC-V single-core processor, up to 160 MHz
384 KB ROM
400 KB SRAM
8 KB RTC SRAM
40 MHz crystal oscillator
4 MB SPI flash
Operating Voltage/ Power supply: 3.0~3.6 V
Operating Temperature Range: –40~85°C
.

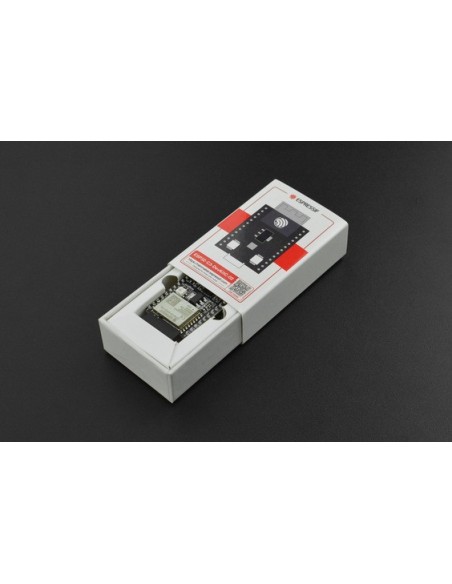

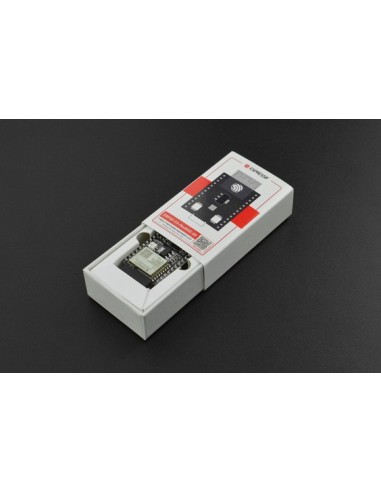

SHIPPING LIST

ESP32-C3-DevKitC-02 Development Board ×1

Product Details

Reference DFR0808

Reviews (0)

No reviews
