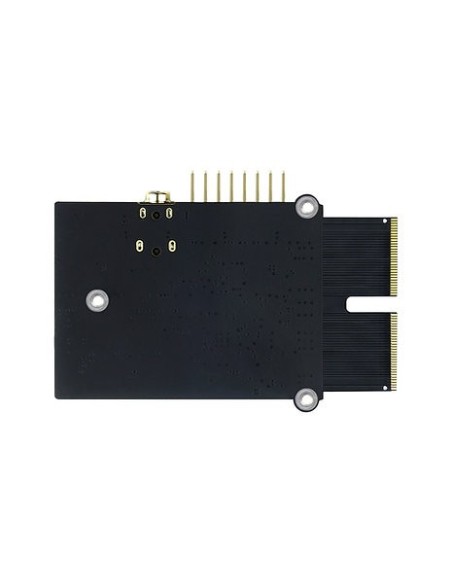

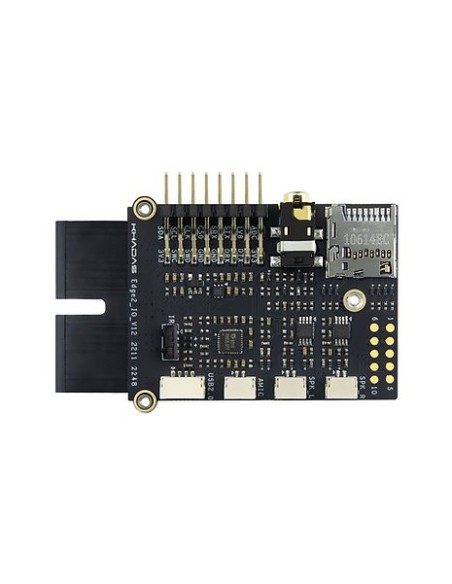

Features:
- SD Card Reader (UHS-I)
- 4-pin, 1.25mm pitch, detachable Crimp Connector (USB HOST)
- 2-pin, 1.25mm pitch, detachable Crimp Connector (Analog Speaker Output)
- 2-pin, 1.25mm pitch, detachable Crimp Connector (Analog Microphone Input)
- 3.5mm Headphone Jack
- IR Receiver (Dual Channel)
.
Expand I/O
- 16-pin, 2.54mm pitch, GPIO Header (CPU: UART, ADC, SPI, I2C; MCU: SWDIO, SWCLK)
- 10-pin, 2.54mm pitch, Pogo Pads (CPU: I2S, PWM, WPR_KEY; MCU: UART)
Dimensions:
- 52.2mm (l) / 66.7mm (with FPC) x 46.5mm (w) x 6.3mm (h)
.
Compatibility:

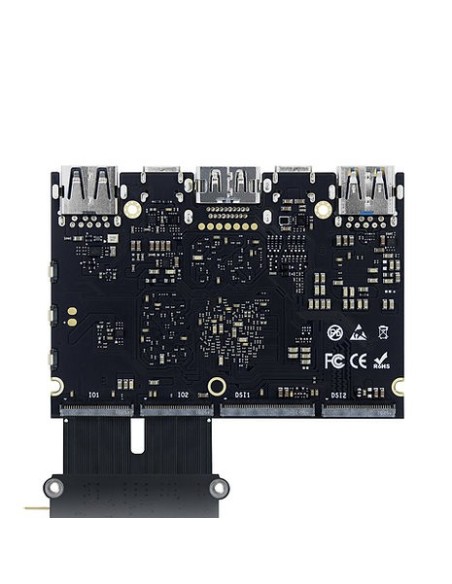

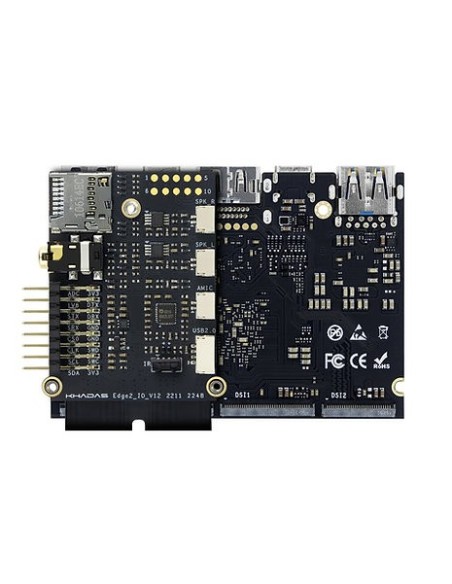

- Edge2
.
Documentation:
- Schematic
- Silkscreen
- 3D CAD Files
- 2D DXF Files
.
In The Box:
- Edge2 IO Module x1
- M2 screws(short) x2
- M2 screws(long) x2
