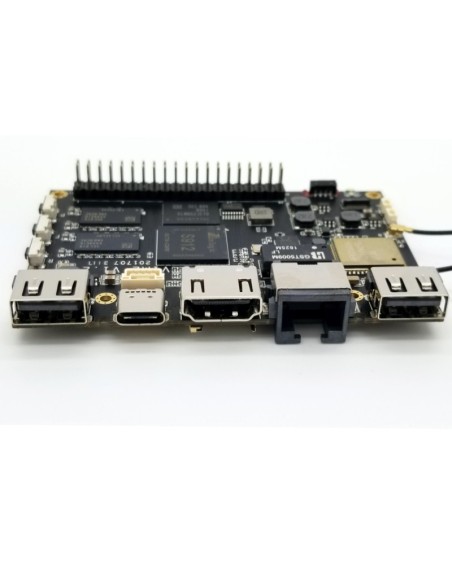

Khadas VIM2 Pro
Khadas VIM2 Pro
Khadas VIM2 Pro
Khadas VIM2 Pro

Khadas VIM2 Pro

US$99.99
Tax excluded

3GB DDR4
32GB EMMC 5.1
AP6398S Wi-Fi, w/ Bluetooth 5.0

Multi O/S Supported

  • Mainline Linux (Linux 5.0+)
  • Ubuntu 18.04+ / Armbian
  • Android TV / LibreELEC
  • Android Nougat (7.1)
  • Google Fuchsia OS
In Stock, Shipping Now

  • Excellent performance: Amlogic S912 1.5GHz 64-bit Octa-Core CPU, T820MP3 GPU, and up to 3GB DDR4 & 64GB eMMC.
  • Unlimited connectivity: 2X2 MIMO AP6398S (Pro / Max) 802.11ac Wi-Fi, 5.x Bluetooth, Gbit Lan and a USB-C(2.0) port.
  • Advanced Specs: WOL(Wake on Lan) and RSDB Wi-Fi will improve the user experience steps forward.
  • Maker friendly: Equipped with 40-pin GPIO header, cooling fan slot and a programmable MCU.
  • Multimedia experts: HDMI2.0a and a powerful VPU with 10-bit 4K H.265/VP9@60fps playback support.
  • Tiny form factor: Thin and light with a dimensions of credit card.



KVIM2-P-002

Data sheet

Chipset
Amlogic S912 - 1.5 GHz 64Bit Octa Core ARM Cortex-A53
RAM
3GB DDR4
Storage
32GB eMMC
Ethernet Ports
10 / 100 / 1000Mbps
Graphic Chipset
750MHz ARM Mali-T820MP3 GPU, HW UHD H.265/VP9 60fps 10bit video decoder, HDR10 and HLG HDR
LED
Blue LED x1, White LED x1
USB-C
DC IN & Type-C with USB 2.0 OTG (Cable Included)
Max Voltage
9v
Button
x3 (Power, Func, Reset)
HDMI CEC
Support
HDMI 2.0a
Type-A Female, up to 4K@60Hz
TF Card
Up to 128GB, Molex Push/Push Connector
WOL
Support (Boot on or wake up VIM2 remotely over Lan through APP or webpage)
IR Receiver
2 Channels
Working voltage
5v (Recommanded)
RTC Battery
3V, with a 2 Pins 0.8mm Pitch JST Header
MCU
8-bit STM8S003 with Programmable EEPROM
Wireless Standard
AP6359SA, 802.11b/g/n/ac 2X2 MIMO with RSDB
Bluetooth
V4.2
Current Limit Switch
Programmable, 3.0A as default Configuration(up to 4.0A)
VIN (Extra Power IN)
4 Pins 1.25mm Pitch JST Header
Cooling Fan
3 Levels Speed, with a 2 Pins 0.8mm Pitch JST Header
Pogo Pads for VIN
6 Pins 2.54mm Pitch / System Power Input
FPC Connector
10 Pins 0.5mm Pitch / I2C, IOs
Pogo Pads for MCU
7 Pins 2.54mm Pitch / SWIM, UART, ADC, NRST
Pogo Pads Array
20 Pins 2.54mm Pitch / USB, I2C, DVB-Bus, IOs
Dimension
82.0 x 57.5 x 11.5 mm
USB Device Port
x2 (900mA & 500mA Load)
Mounting Holes
Size M2 x 4
SPI
2MB
GPIO
40 Pins 2.54mm Pitch / USB, I2C, I2S, SPDIF, UART, PWM, ADC, ISO7816, IOs
