Khadas VIM3 Basic
Khadas VIM3 Basic
Khadas VIM3 Basic
Khadas VIM3 Basic
Khadas VIM3 Basic
Khadas VIM3 Basic
Khadas VIM3 Basic
Khadas VIM3 Basic
Khadas VIM3 Basic
Khadas VIM3 Basic

Khadas VIM3 Basic

US$99.99
Tax excluded

Faster CPU Performance
Neural Processing Unit for A.I. (NPU)
Switchable PCIe and USB 3.0
USB-C Power Delivery
Dual Independent Displays
Dual Cameras

(Directly Ship from Canadian Warehouse)



In Stock, Shipping Now



Secure Transaction



Shipping Directly from Canada



Customer-Friendly Return Policy

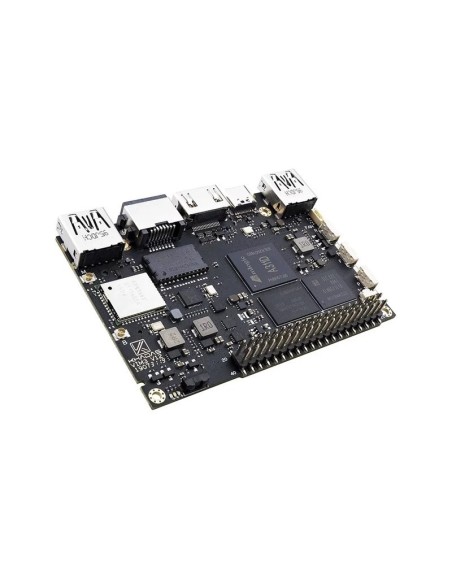

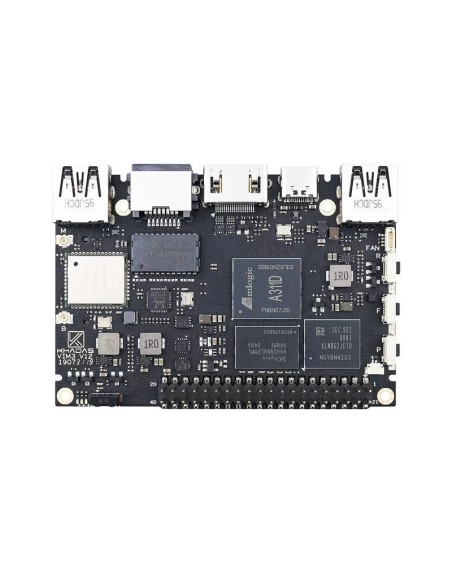

The VIM3 SBC is the latest addition to our popular Khadas VIM series. It has a powerful Amlogic A311D SoC: x4 Cortex A73 performance-cores (2.2Ghz), and x2 Cortex A53 efficiency-cores (1.8Ghz) are merged into a hexa-core configuration, and fabricated with a 12nm process to maximise performance, thermal and electrical efficiency.

VIM3 is designed with the same form-factor as our popular VIM2 and VIM1. It is the size of a credit-card, and fits perfectly inside our DIY Case. Although diminutive, VIM3 is competitively-priced and fully-featured; everything you need is already built-in.

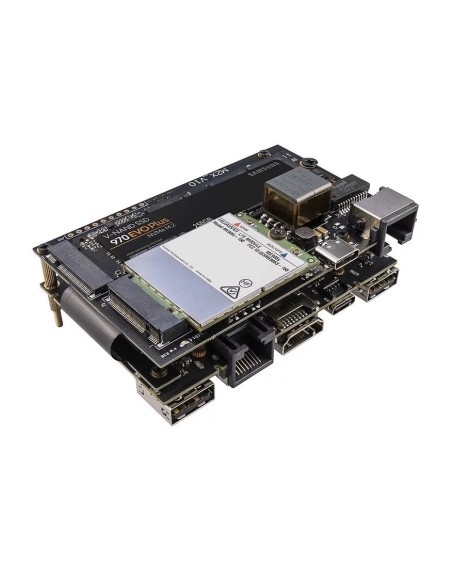

Digital-signage developers will love the programmable MCU, MIPI-CSI for dual cameras, real-time clock, wake-on-lan functionality and 3-axis g-sensor to detect signage orientation. The M2X Extension Board has an NVMe SSD slot, power-over-ethernet, 100-mbit ethernet, 4G module slot, nano-sim slot, and GPIO.

The new VIM3 SBC goes beyond what our original VIM models have to offer. It has an onboard 5.0 TOPS NPU for neural network applications, an M.2 slot for NVMe SSDs that can switch between PCIe and USB 3.0 via Khadas KBI commands, and a USB-C port with 5-20 volt USB power-delivery input.

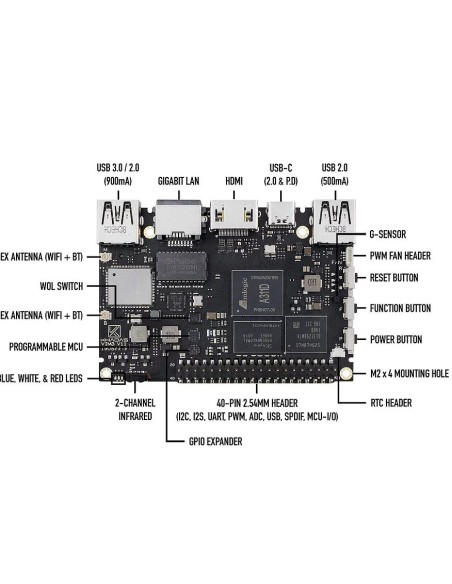

Key Features:

High Performance:

  • Amlogic A311D - x4 2.2Ghz Cortex A73, x2 1.8Ghz Cortex A53
  • 12nm SoC fabrication process for low heat
  • 2T2R AC Wi-Fi with RSDB Features
  • Bluetooth 5.0
  • USB 3.0 Available
  • Gigabit Ethernet with WOL support
  • LPDDR4/X
  • USB-C PD for heavy applications

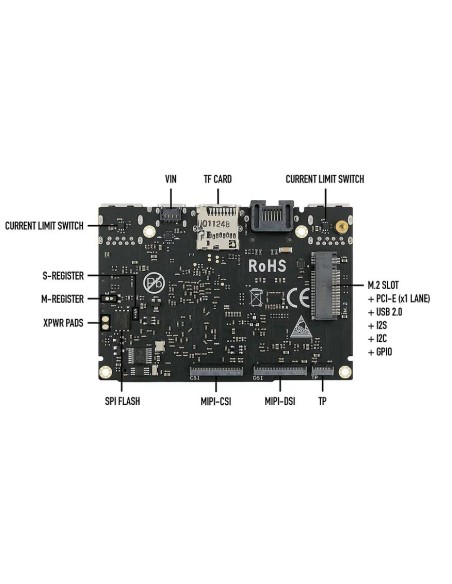

NVMe SSD:

  • M.2 Connector

Neural Network Accelerator:

  • NPU: Supports a maximum frequency of 800MHz at 5.0 TOPS
  • INT8 inference up to 1536 MAC
  • Internal L2 cache (512KB) and system workspace buffer (1MB)
  • Supports all major deep learning frameworks including TensorFlow and Caffe

Maker Friendly:

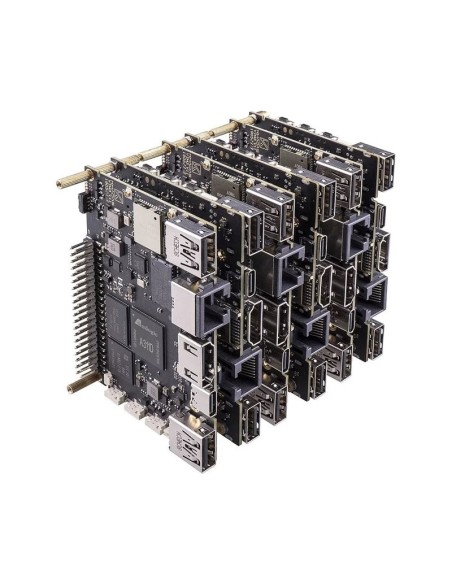

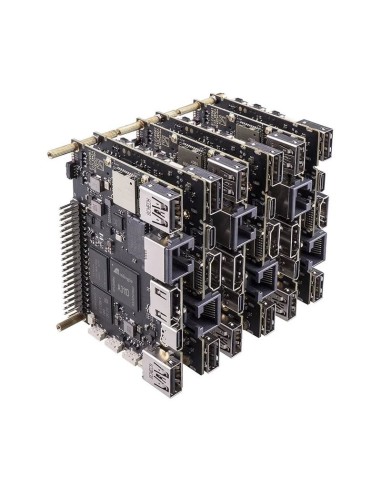

  • Stackable Design
  • Programmable MCU
  • 3 Programmable LEDs (Blue, Red and White)
  • XPWR for external Power button
  • Onboard SPI Flash
  • Khadas TST
  • Khadas KBI

Business Applications

  • Dual independent displays with GSensor
  • H.264 / H.265 Encoding
  • Supports multi-video decoding up to 4Kx2K@60fps+1x1080P@60fps
  • VIN Power Input

Rich IO:

  • 40 Pin GPIO Header (USB, I2C, I2S, UART, ADC etc)
  • 8-ch I2S for Microphone Array application (over M.2 Connector)
  • MIPI-DSI
  • MIPI-CSI
  • Designed with GPIO Extender Chip
KVIM3-B-002
2019-08-23

Data sheet

NVMe SSD
M.2 Connector
Processor (CPU)
Amlogic A311D x 4 A73 @ 2.2GHz + x2 A53 @1.8GHz
RAM
2 GB LPDDR4/X 1608MHz, 32bit
Storage
16GB eMMC
Board Size
82.0 x 58.0 x 13.0 mm
GPU
Mali G52 MP4 at 800MHz
Package Includes

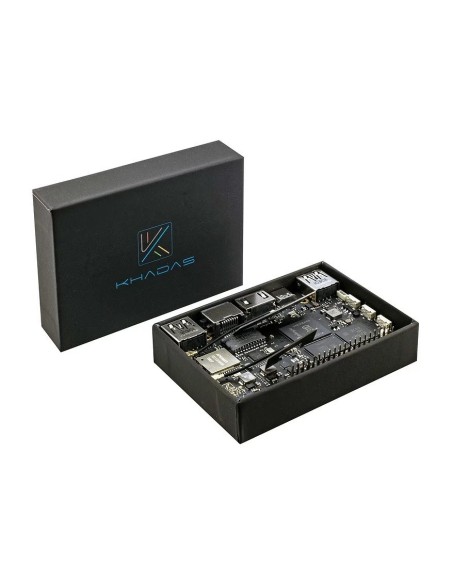

1 x VIM3 Basic SBC, 2 x Wi-Fi Antenna
Input Power
USB-C, VIN
Button
Reset, Power, Function
WOL
Yes
IR Receiver
Dual Channels
HDMI output Port
x1 Type-A
Wireless Standard
2T2R 802.11 ac with RSDB
Bluetooth
V5.0
USB Device Port
x1 USB 3.0 + x1 USB 2.0
SPI
16MB
