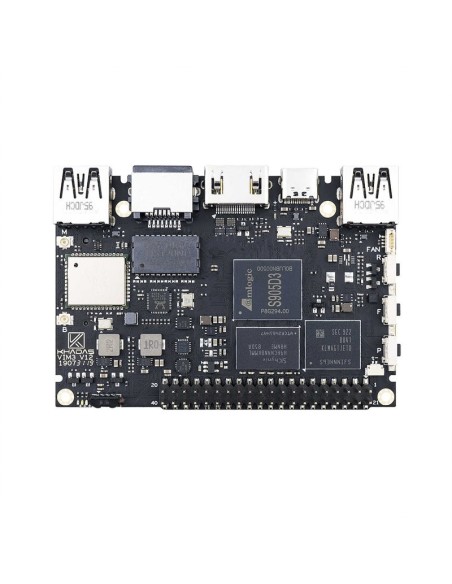

Khadas VIM3L - Bare Board
Khadas VIM3L - Bare Board
Khadas VIM3L - Bare Board
Khadas VIM3L - Bare Board
Khadas VIM3L - Bare Board
Khadas VIM3L - Bare Board
  • New

Khadas VIM3L - Bare Board

US$59.99
Tax excluded

VIM3L bare-board for developers and makers, comes with Android 9.0 pre-installed.

Pre-Order order shipment by the end of October.

In Stock



Secure Transaction



Shipping Directly from Canada



Customer-Friendly Return Policy

High Performance:

  • Amlogic S905D3
  • 12nm process for low heat & high efficiency
  • 2T2R AC Wi-Fi with RSDB Features
  • Bluetooth 5.0
  • USB 3.0 Available
  • Gigabit Ethernet with WOL support
  • LPDDR4/X
  • USB-C PD for heavy applications

NVMe SSD:

  • M.2 Connector

Neural Network Accelerator:

  • NPU: Supports a maximum frequency of 800MHz at 1.2 TOPS
  • INT8 inference up to 1536 MAC
  • Internal L2 cache (512KB) and system workspace buffer (1MB)
  • Supports all major deep learning frameworks including TensorFlow and Caffe

Maker Friendly:

  • Stackable Design
  • Programmable MCU
  • 3 Programmable LEDs (Blue, Red and White)
  • XPWR for external Power button
  • Onboard SPI Flash
  • Khadas TST
  • Khadas KBI
  • 3D CAD Files

Business Applications

  • Dual independent displays with GSensor
  • H.264 / H.265 Encoding
  • Supports multi-video decoding up to 4Kx2K@60fps+1x1080P@60fps
  • VIN Power Input

Rich IO:

  • 40 Pin GPIO Header (USB, I2C, I2S, UART, ADC etc)
  • 8-ch I2S for Microphone Array application (over M.2 Connector)
  • MIPI-DSI
  • MIPI-CSI
  • Designed with GPIO Extender Chip

Compatible Accessories (sold separately):

  • New VIM Heatsink
  • 3705 Cooling Fan
  • M2X Extension Board
  • TS050 Touchscreen
  • Khadas Tone Board
  • DIY Case
  • IR Remote
  • USB-C 24W Adapter (White)
  • USB-C Cable (White, Male to male)
  • USB 10W Adapter (Black, light workloads only)
  • USB-C Cable (Grey 2.0 to Type-C)
  • HDMI Cable (19-Pin)

What's in the Box:

  • VIM3L
  • Wi-Fi Antenna x2
Khadas-VIM3L
