Ships Directly from Canada
US$16.50

This passive fanless heatsink is a zero-noise cooling solution specifically designed for the LattePanda IOTA , providing reliable and stable thermal protection during sustained high-load operations.

Ask a Quote

Description

Introduction

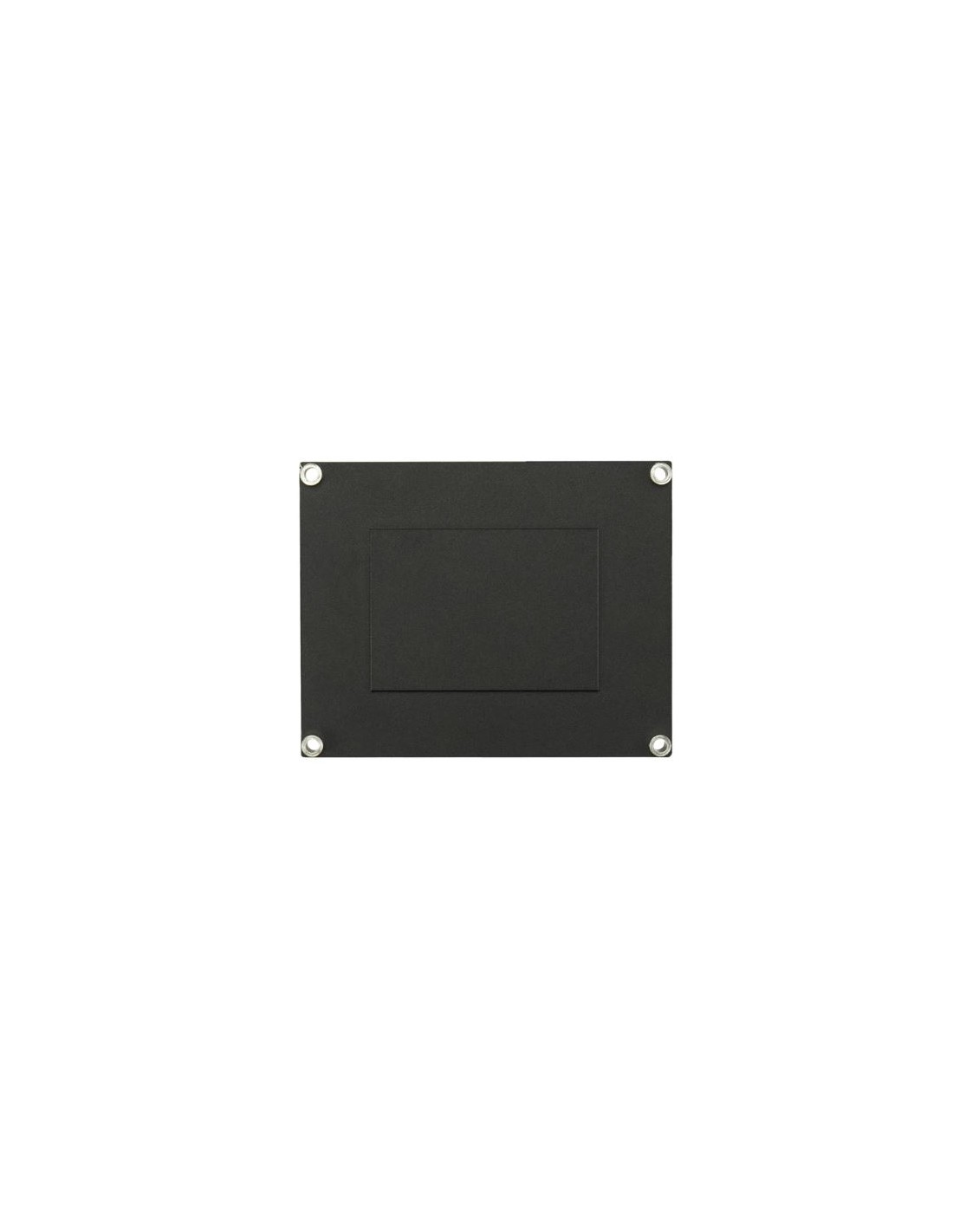

The LattePanda IOTA Fanless Heatsink is a passive cooling solution specifically designed for the LattePanda IOTA. Made from high-quality aluminum alloy with a thickened design, it significantly enhances thermal capacity and heat dissipation area through its expanded volume and precision-machined fins.

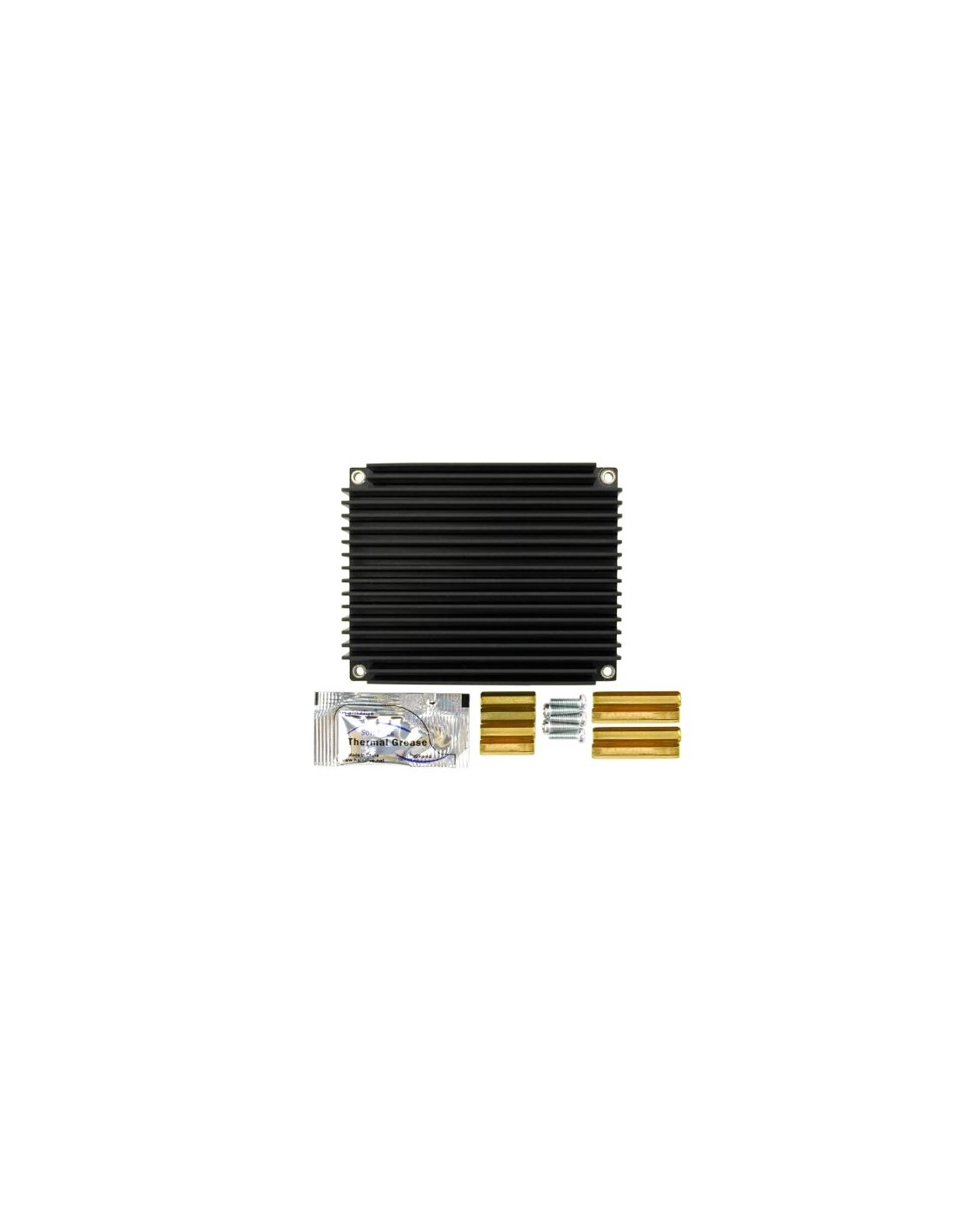

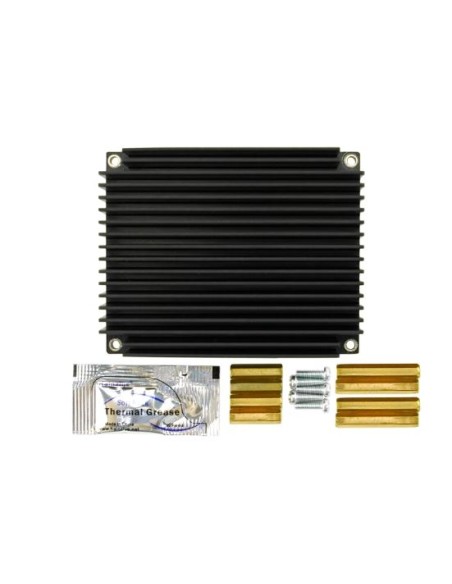

Coupled with the included high-performance thermal paste, it ensures efficient heat transfer from the processor and uniform distribution across the entire heatsink.

Its fully passive, zero-noise construction and robust build provide reliable cooling stability for the LattePanda IOTA during continuous high-performance operation.



Installation steps:

1. Apply an even layer of thermal paste to the processor.

2. Mount it onto the back of the LattePanda board and secure with screws and standoffs.

Figure: LattePanda IOTA and Fanless Heatsink

Note:

  • 1. This fanless heatsink is designed exclusively for use with the LattePanda IOTA.
  • 2. When installing or removing the heatsink, the LattePanda IOTA must be powered off.
  • 3. While in use, please avoid direct contact between your skin and the heatsink to prevent burns.



Specification

  • Compatible: LattePanda IOTA
  • Heat Dissipation Capacity: TDP 10W, Ambient Temperature 25℃, Heatsink Temperature Rise 40°C

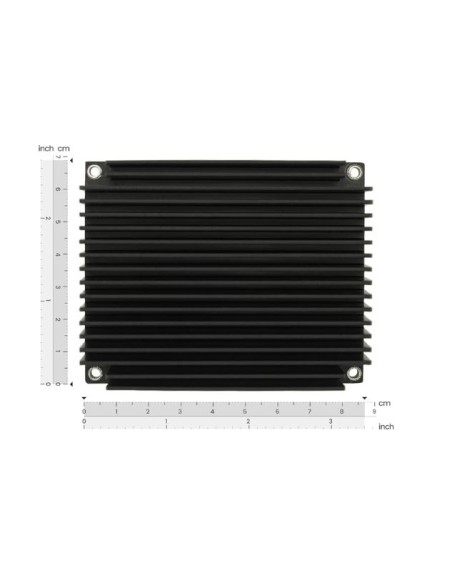

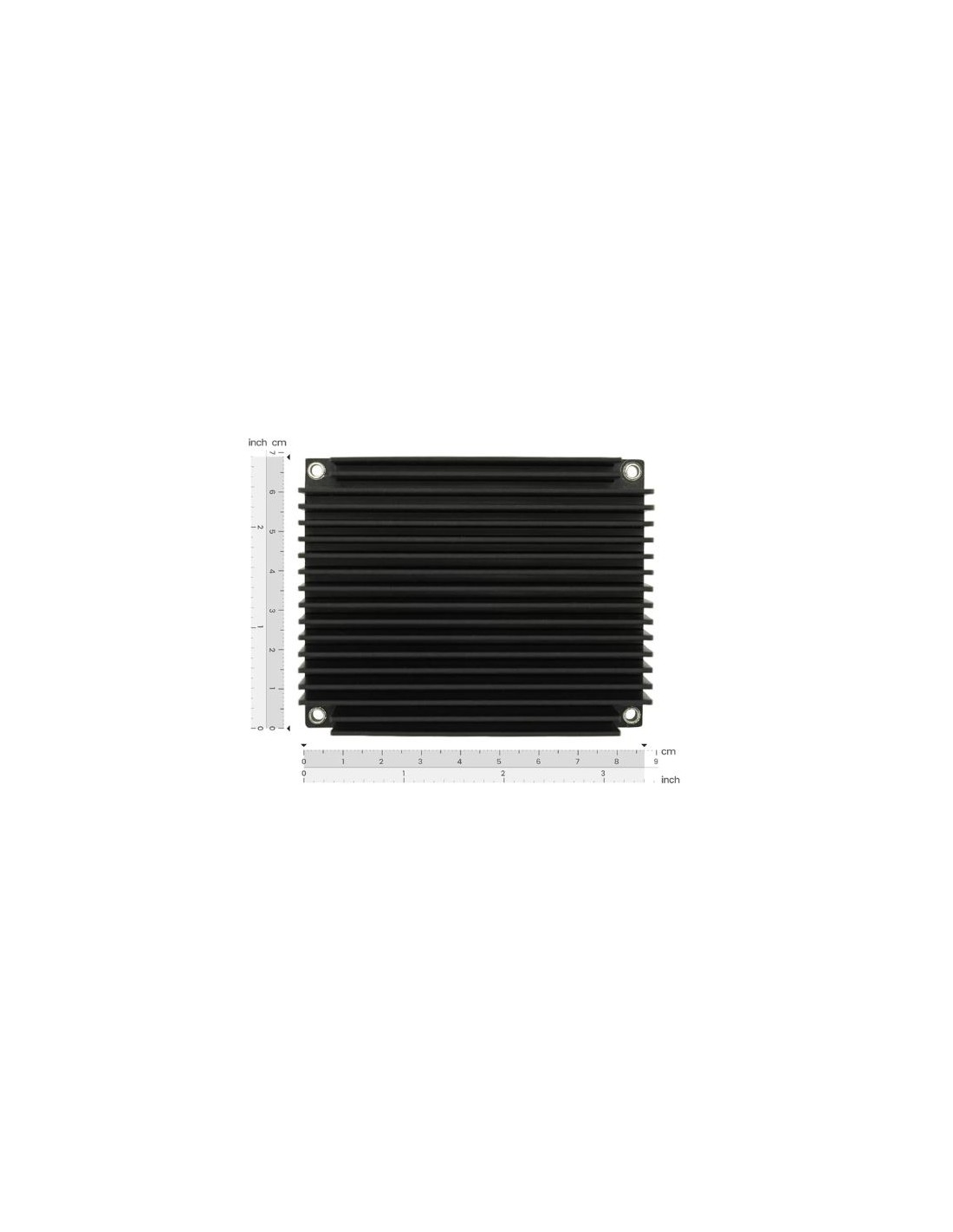

  • Dimensions: 87.0*69.4*31.5mm
  • Material: Aluminum Alloy
  • Weight: 203g (Heatsink Only)
