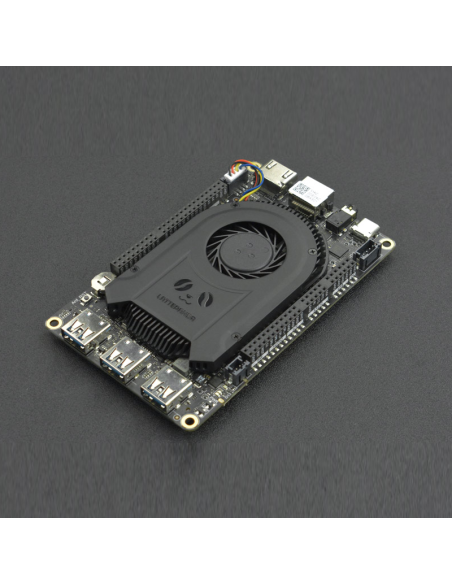

LattePanda 3 Delta 864 - Windows/Linux SBC (8GB RAM/64GB eMMC)

LattePanda 3 Delta 864 - Windows/Linux SBC (8GB RAM/64GB eMMC)

Name: LattePanda 3 Delta 864 - Windows/Linux SBC (8GB RAM/64GB eMMC)
Brand: LattePanda
SKU: DFR0981
Price: 331.95 USD
Availability: InStock

Ships in 5~10 Days

US$331.95

The LattePanda 3 Delta is a compact single-board computer ideal for multimedia and gaming. It excels as a Home Theater PC with its HD capabilities, functions as a Mini Game Console for casual play, streams 4K video seamlessly, and can be configured as a Monitoring System for home security. Its versatility and power make it suitable for various applications in a small, efficient package

APPLICATIONS

Home Theater
Mini Game Console
4K Portable Video Streamer
Monitoring System

(Contact Sales for Bulk pricing)

License:

Ask a Quote

Description

FEATURES

Enhanced CPU performance, It features the Intel 11th generation mobile quad-core processor N5105 and offers significantly improved performance.
Upgraded to 8GB RAM and 64GB eMMC, substantial high-bandwidth RAM and speedy solid-state drive to smoothly run your multiple applications at once, and ensure seamless performance and reliable multitasking.
ULTRA-FAST connectivity: With a lightning-fast Wi-Fi 6 and Gigabit Ethernet, stream videos or download massive files quickly
Higher data transfer rate: 1 x USB3.2 gen2, 2x USB 3.2 gen1, and 1x USB Type C for high data transfer speed, up to 10X faster than USB2.0
Support Dual 4K HDR and 3-Way Video Output, including HDMI, Display port over USB-C, and eDP for superb flexibility
Rich IOs and Integrated Arduino Coprocessor ATmega32U4, compatible with 200+ sensors and actuators
Support Windows (Win 10 and Win 11) & Linux OS

SPECIFICATION

CPU: Intel® Celeron® N5105
Core: 2.0~2.9GHz Quad-Core, Four-Thread
Graphics: Intel® UHD Graphics (Frequency: 450 – 800MHz)
Memory: LPDDR4 8GB 2933MHz
Storage: 64GB eMMC V5.1
Expansion Slots:
-1x M.2 M Key, PCIe 3.0 2x, Supports NVMe SSD
-1x M.2 B Key, PCIe 3.0 1x, USB 2.0, USB 3.0, SATA, SIM, Supports SATA, 4G & 5G module
Connectivity:
-1x Wi-Fi 6 @ 2.4GHz &5 GHz(160MHz)
-1x Bluetooth 5.2
-1x Intel Gigabit Ethernet
USB Ports:
-2x USB 3.2 Gen1 Type A
-1x USB 3.2 Gen2 Type A
-1x USB Type C, Supports PD, DP, USB 2.0
-1x USB 2.0 Pin Header
Display:
-1x HDMI 2.0b: Up to 4096x2160 @ 60Hz HDR
-1x DP 1.4: Up to 4096x2160 @ 60Hz HDR
-1x eDP: Extendable Touch Displays up to 1920*1080
TPM: built-in TPM(2.0)
Co-processor: Arduino Leonardo ATMEGA32U4
Audio: Microphone + Headphone Combo Connector
GPIO & Other Features:
-12x Analog Inputs*
-Up to 23x Digital Input/Output (7 PWM)*
-1x UART
-1x I2C
-1x SPI
-1x Audio Connector
-1x 4-Pin RS232 Header
-1x Fan Port (4 Pin 1.25mm PWM 5V）
-1x 4-Pin Header (Power and Switch)
OS Support: Windows 10 & Windows 11 & Linux

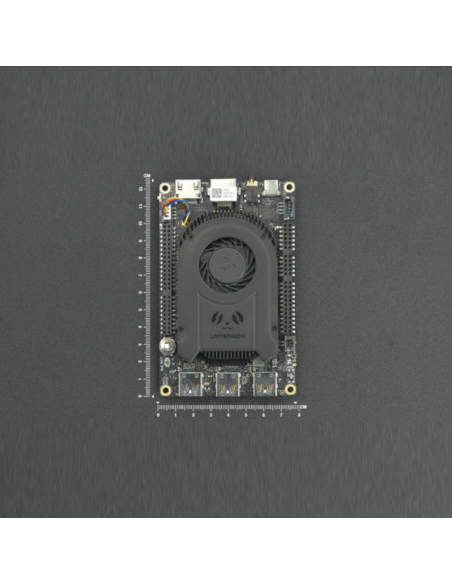

Dimension: 125 x 78 x 16mm
Operating Temperature: 0°C~75°C
