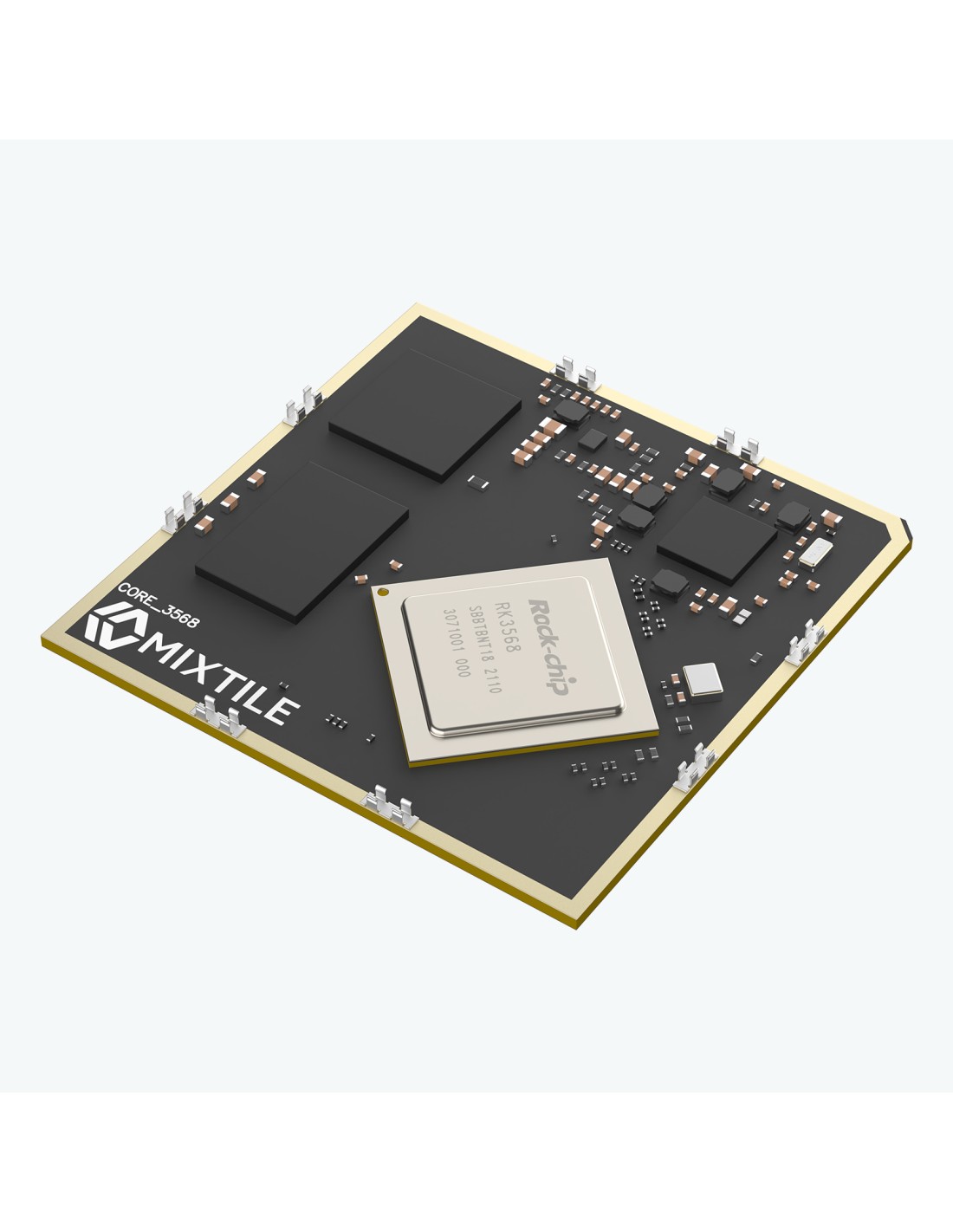

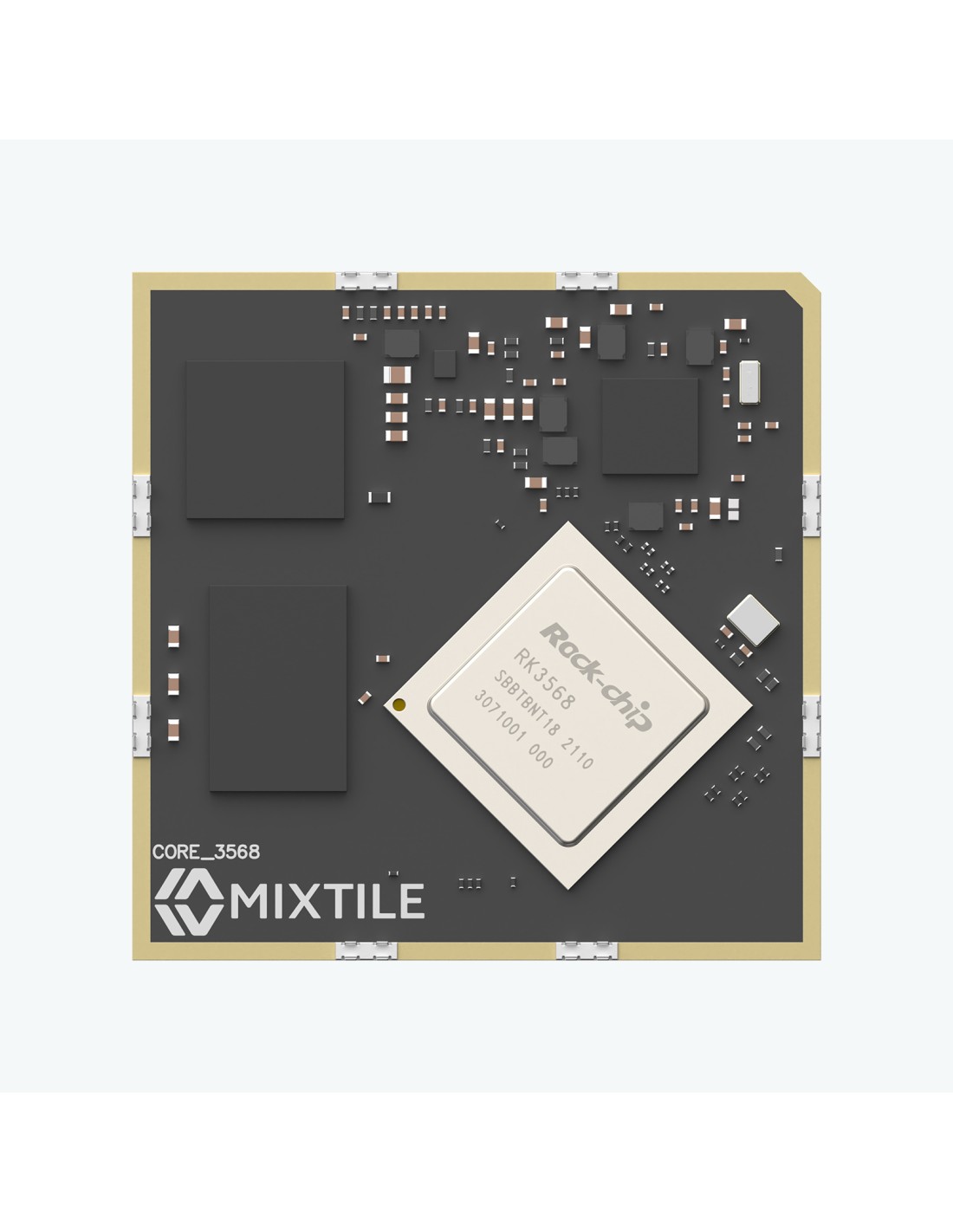

Mixtile System-on-Module, Core 3568, is designed for supporting multiple applications based on ARM high-performance and low-power processors.
Technical Specification
- Quad-core Cortex-A55 up to 2.0GHz
- Mali-G52 GPU
- 2/4 GB LPDDR4
- 16/32 GB eMMC 5.1
- 4K@60fps H.264/H.265 video encoder
- 8M ISP with HDR
- Dual display, LVDS/MIPI-DSI/RGB/eDp/RGB/Multimedia Port/T-CON
- 1x8ch I2S/TDM, 1x8ch PDM, 2x2ch I2S
- USB3.0 x3/SATA3.0 x2/PCIE2.1/QSGMII
- PCIE3.0 1x2Lanes/2x1Lane
- Dimension: 50mm x 50mm
| CPU | Quad-core ARM Cortex-A55, Neon and FPU |
| GPU | G52 2EE |
| NPU | RK NN, 1 Tops |
| DDR | 2/4GB 32-bit LPDDR4 |
| Storage | 16/32GB eMMC 5.1 |
| Supply | 3.3 VDC / 5.0 VDC |
| Temperature range | 0 to +60℃ operating |
| Dimensions | 50mm x 50mm x 5mm |
| BSPs | Android 11 |

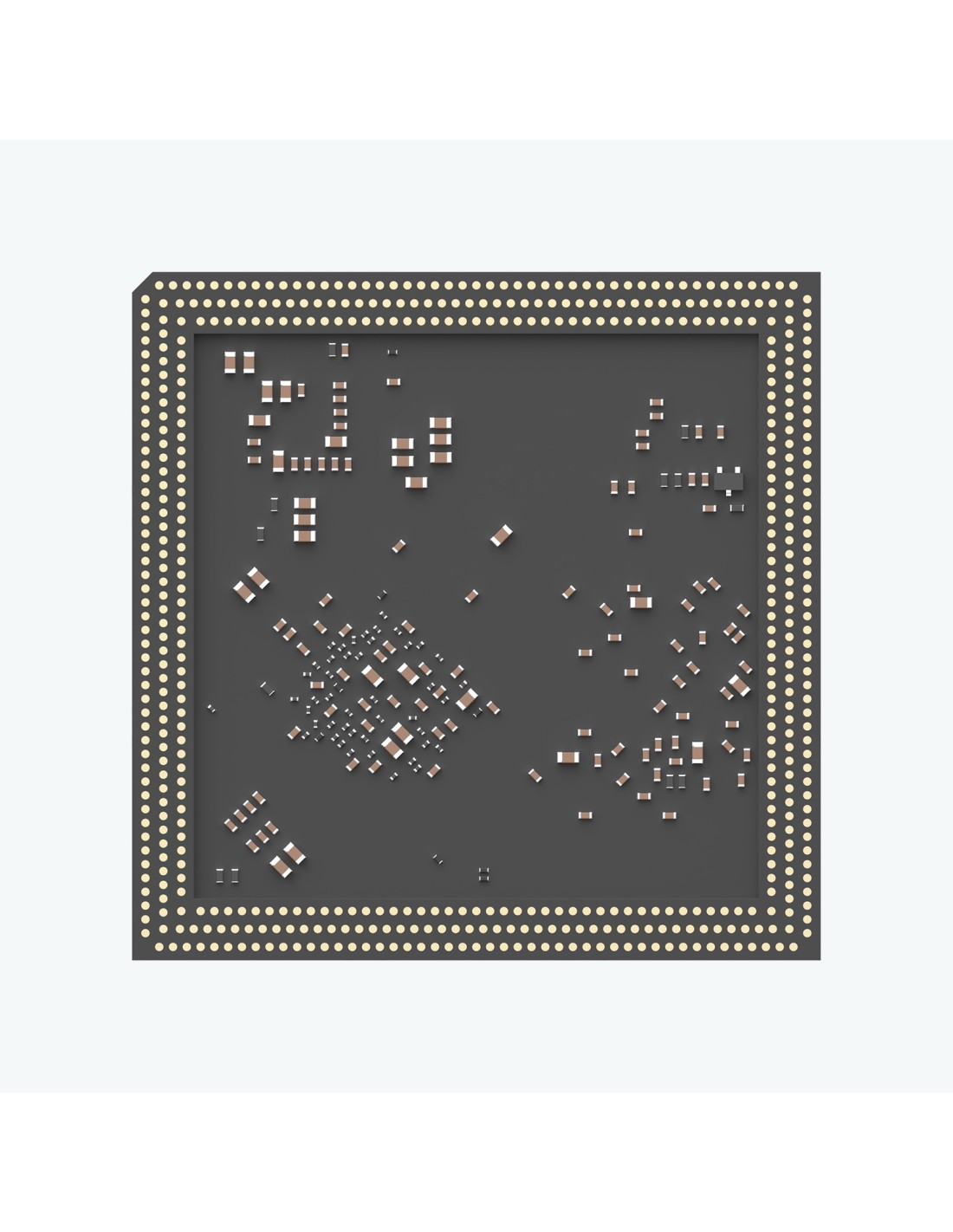

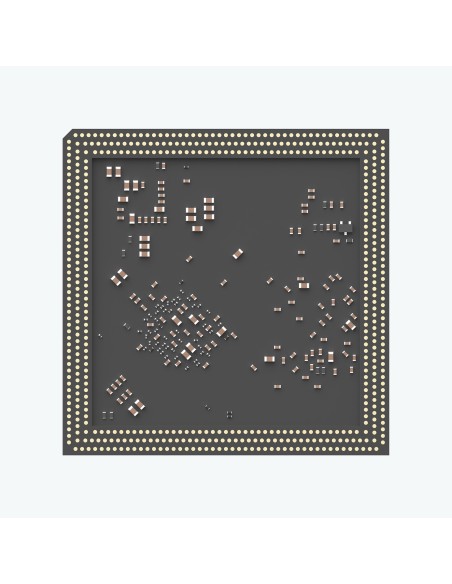

| Total interfaces on BGA | 536 pins |
| Video Decoder | 4KP60 H.264/H.265/VP9 |
| Video Encoder | 1080P60 H.264/H.265 |
| ISP | 8M ISP, HDR |
| MIPI_CSI | MIPI-CSI2, 1×4-lane/2×2-lane@2.5Gbps/lane |
| DVP/CIF | IO:150MHz, Support BT.656/601/1120 |
| Display | RGB, LVDS/MIPI DSI, HD multimedia port, eDP, Eink |
| SDIO | SDIO 3.0 x3 |
| Peripheral | USB 2.0 HOST, USB2.0 OTG |
| USB3.0 OTG, USB3.0 HOT, SATA 3.0 x3, PCIE 2.1(1x1Lane), QSGMII x1, Combo with 3 Serdes Lanes | |
| PCIE3.0 1 ×2Lanes/2 ×1Lane@8Gbps | |
| Ethernet | 2x GMAC (10/100/1000M) |
| Audio | 1x 8ch I2S/TDM, 2x2ch I2S 8ch PDM, 1x SPDIF OUT |
| Others | 10x UART, 4x SPI, 16x PWM,6x I2C,3x CAN FD,8x SAR-ADC |
| OTP | OTP (Size 8K) |
| Crypto | SM3/4, TEE, Trustzone |
