US$225.00

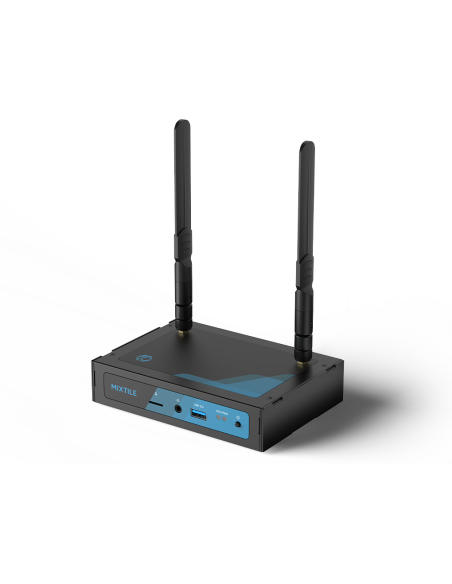

Mixtile Edge 2 Kit is an interface-rich IoT edge computer with a considerable possibility of applications that can be developed with high performance, low power consumption, and low cost. It has two external Wi-Fi antennas and reserved space for six antennas. Utilizing these antennas opens up a lot of opportunities for integrating wireless technologies.

Contact Sales for Bulk Pricing.

Memory+Storage :

Description

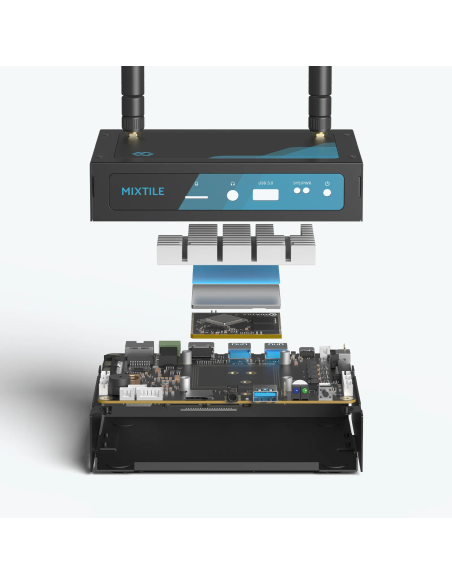

Mixtile Edge 2 Kit is built around the Edge 2 single-board computer, adding more capabilities such as a customizable enclosure and two external Wi-Fi antennas for rich wireless connectivity. The edge computing device, Edge 2 Kit provides a high-performance ready-to-run IoT edge computer with a 3.5-inch form factor, 6 reserved Antenna ports, expandable with mini-PCIe and M.2 modules, and preload Android 11 and Linux container. It is stable and can be an off-the-shelf product with your application software.



The compact size of the ARM SBC-based Mixtile Edge 2 Kit makes it applicable for a wide variety of small-scale applications and diverse possibilities. Additionally, it offers various interfaces supporting the expansion of dual hard drives, dual network ports, or Hi-Fi music decoding and other functions. It meets the needs of a variety of application scenarios at a low cost.

Product Details

CPU
Rockchip Quad-core Cortex-A55 SoC Processor RK3568
NPU
1 Tops
Memory
2/4GB LPDDR4 DRAM Memory and 16/32GB eMMC
Storage Controller
Micro-SD 3.0 Flash Expansion Socket, M.2 Socket: PCIe 3.0, USB2.0, SIM Socket.
HDMI Signal Input
HDMI2.0 / eDP / MIPI-DSI + TP / MIPI-DSI / MIPI-CSI
On-Board View Encoder
1080P100 H.264/H.265 video encoder
On-Board View Decoder
4KP60 H.265/H.264/VP9 video decoder
USB Ports
Three USB3.0 ports
GPIO
One RS485 and two TTLDigital I/O, SPDIF, I2C, DMIC
Power
12V DC / SATA power socket, Type-C PD3.0 Power input(max 3A @ 20V)
Operating Temperature
0 to +80°C
Wireless
WiFi 6 802.11ax, Bluetooth 5.0, Support 4G/5G module
IEC-EDGE2-0216
3481724142684
IEC-EDGE2-0216
