Technical Details

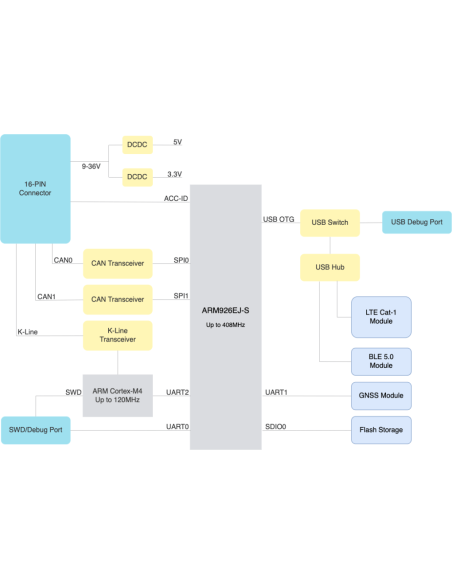

- ARM926EJ-S MPU @408MHz with integrated 64MB DDR1 memory
- ARM Cortex-M4 32-bit MCU @120Mhz with 64KB flash
- 128MB flash storage
- 2x CAN 2.0B @1Mbps
- 1x K-Line
- LTE Cat.1 module, support LTE-FDD: B1/B3/B5/B8, LTE-TD: B34/B38/B39/B40/B42, GSM:900/1800MHz or other bands
- GNSS module, support GPS/Beidou/GLONASS/Galileo/QZSS/SBAS
- EAL4+ authentication/encryption chip
- BLE 5.0 module (optional)
- 6-Axis MEMS sensor combines a 3-axis gyroscope and 3-axis accelerometer
- Debugging port
- 1x SWD
- 1x UART

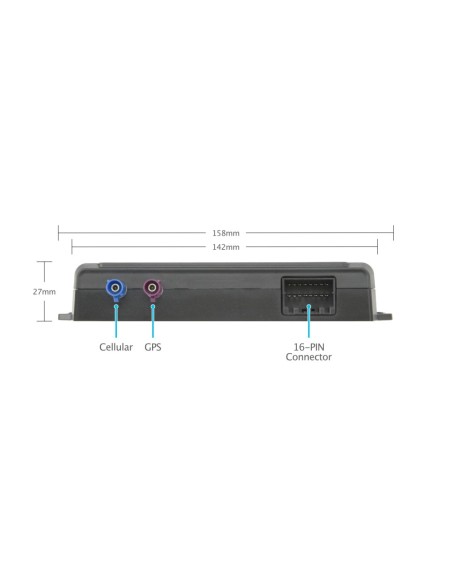

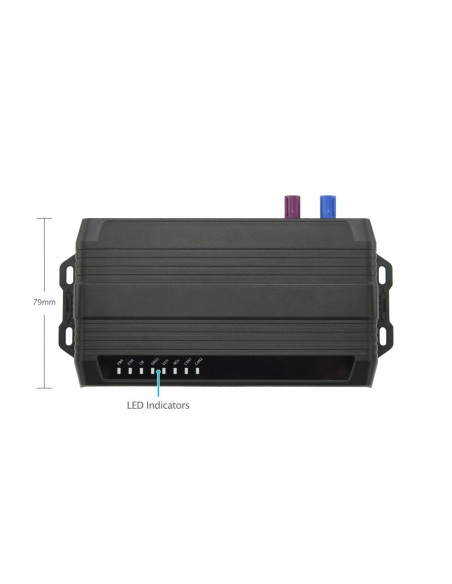

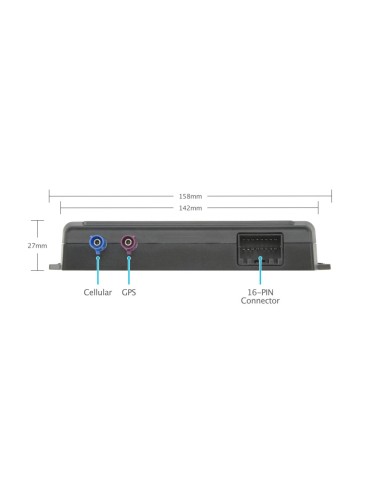

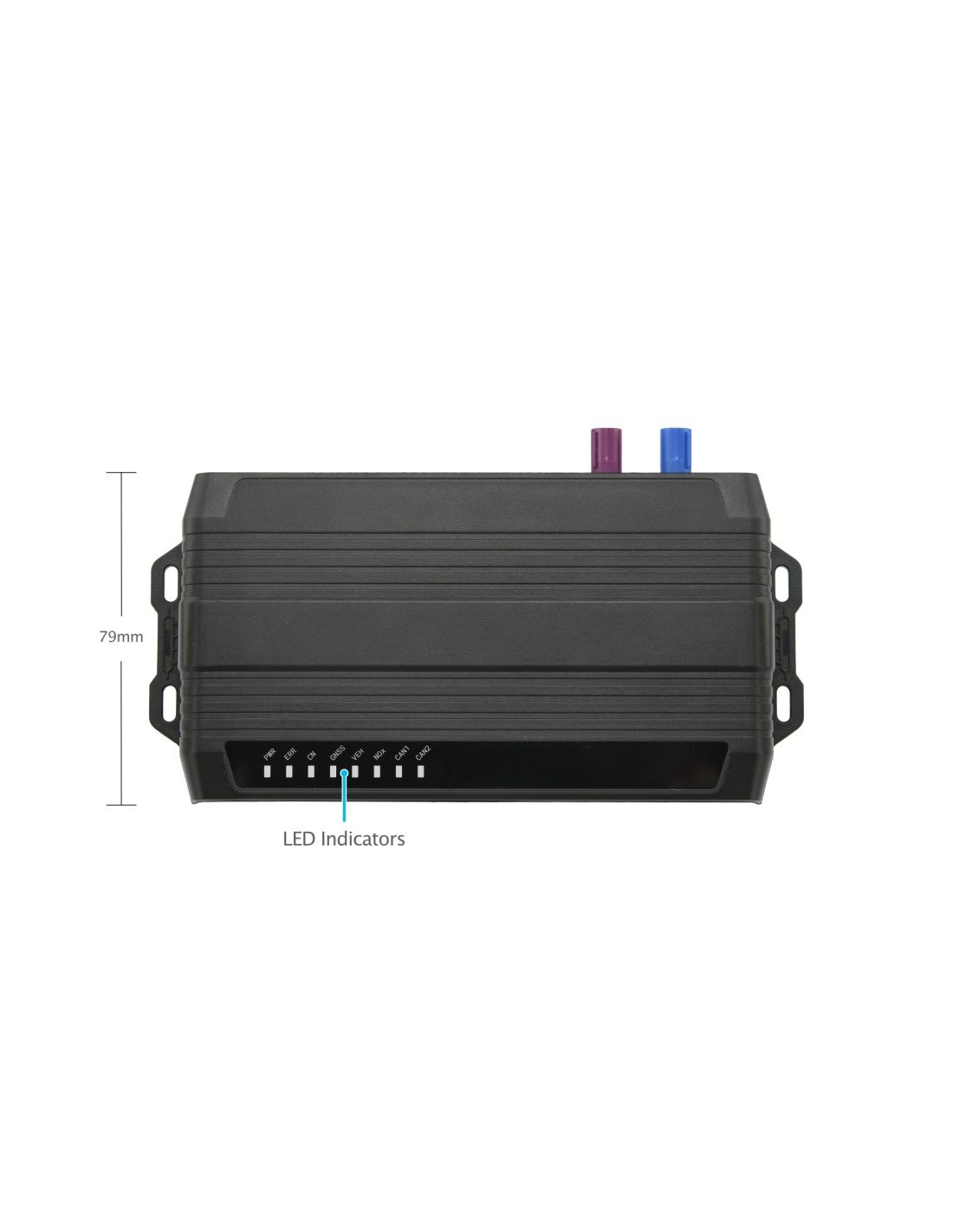

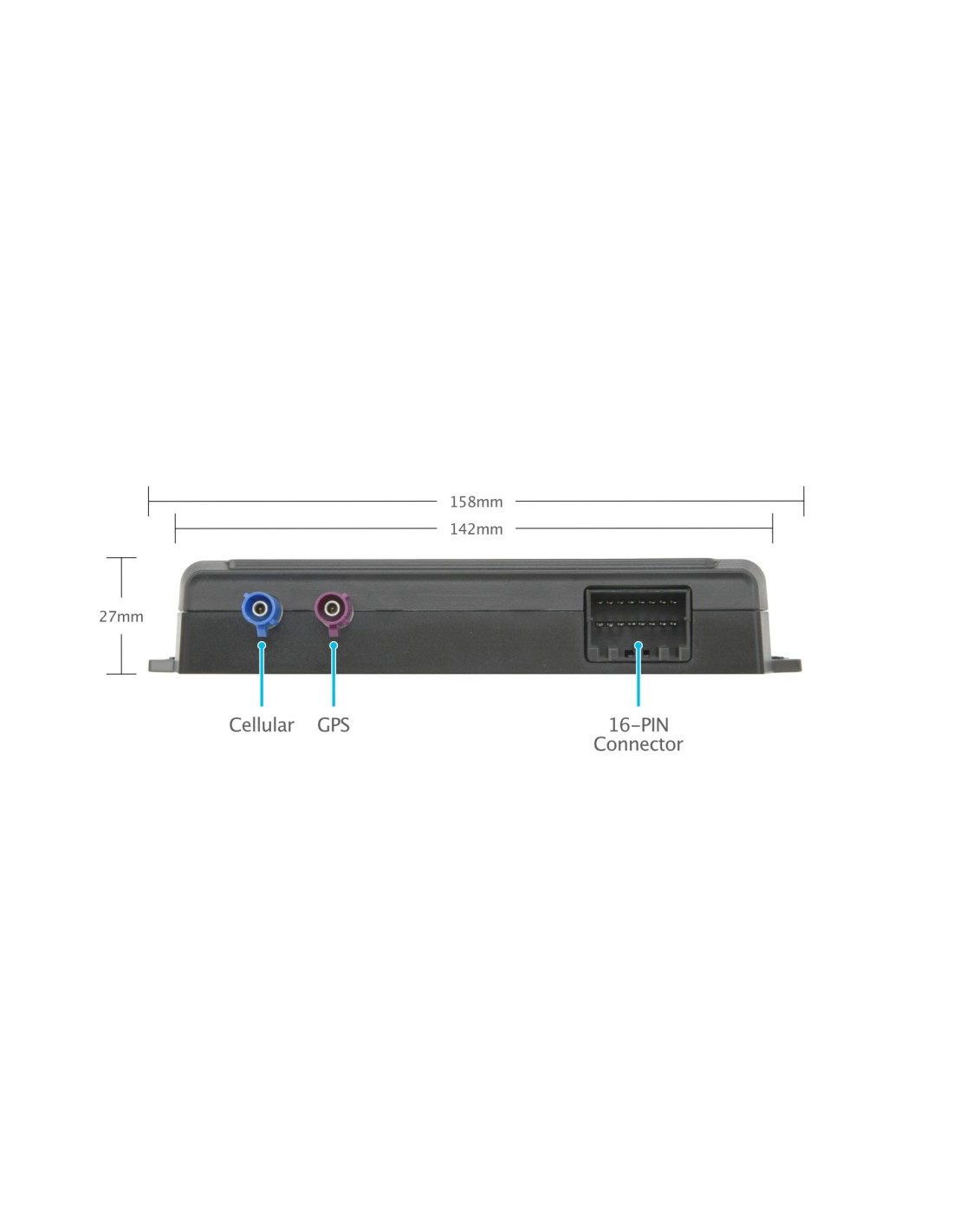

- 142 x 79 x 27mm
- 9 to 36V DC power in
- -30°C to +65°C operating temperature
- Linux 3.10
