Ships in 7 Days

The Khadas VIM4 Board is the new Khadas board which comes with fantastic features. Such as, Faster CPUI performance, Powerful GPU, Quad Display Interfaces, W-Fi 6, Larger Ram and more!

Quantity Unit price You Save
21 US$227.00 US$399.00
51 US$206.00 US$2,040.00
101 US$191.00 US$5,555.00

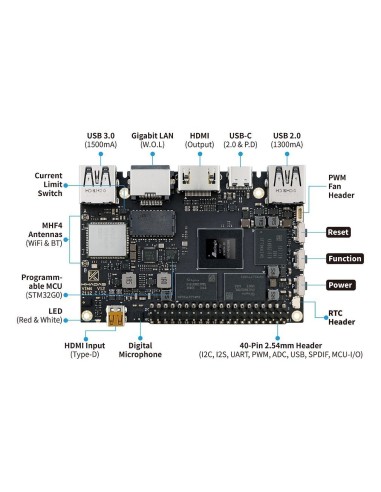

Key Features:

  • Amlogic A311D2 - 2.2GHz Quad core ARM Cortex-A73 and 2.0GHz Quad core Cortex-A53
  • ARM Mali-G52 MP8(8EE) GPU up to 800MHz
  • AP6275S Wi-Fi 6 Module (802.11a/b/g/n/ac/ax, 2T2R MIMO with RSDB)
  • Bluetooth 5.1
  • USB 3.0 Available
  • Gigabit Ethernet with WOL support
  • 8GB 64bit LPDDR4X frequency up to 2016MHz
  • USB-C PD for heavy applications
  • M.2 Connector (for NVMe SSD, 5G etc)
  • System with NPU


OOWOW Embedded System:

  • Install / reinstall OS
  • Download online OS images
  • Remote access control via HTTP/SSH
  • Backup and restore system
  • Display full device information
  • Configure device
  • Online script collection
  • Rescue shell
  • Developer and advanced features


Maker Friendly:

  • Stackable Design
  • Programmable 32bit MCU
  • 2 Programmable LEDs (Red and White)
  • XPWR for external Power button
  • Onboard SPI Flash
  • Khadas TST
  • Khadas KBI
  • 3D CAD Files


Business Applications

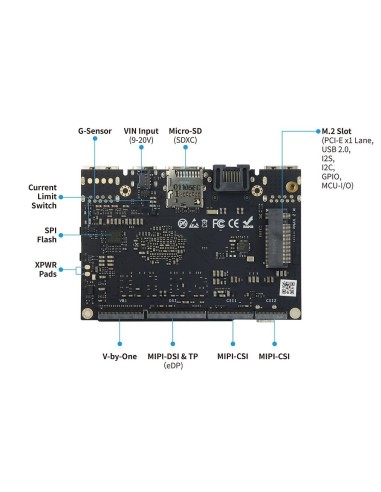

  • Triple independent displays with GSensor
  • Touch panel support (TP)
  • Dual MIPI-CSI inputs, for dual camera support
  • HDMI input, for HDMI passthrough and recording
  • V-by-One interface for machine vision applications
  • H.264 / H.265 Encoding
  • Supports multi-video decoding up to 4Kx2K@60fps+1x1080P@60fps
  • 9-20V VIN Power Input


Rich IO:

  • 40 Pin GPIO Header (USB, I2C, I2S, UART, ADC etc)
  • 8-ch I2S for Microphone Array application (over M.2 Connector)
  • eDP
  • VBO



  • New VIM Heatsink
  • Passive Heatsink
  • 3705 Cooling Fan
  • 4G LTE Module
  • 5G LTE Module (coming soon)
  • M2X WWAN Extension Board (coming soon)

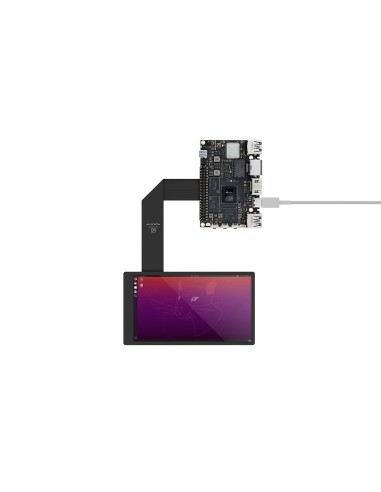

  • TS050 Touchscreen
  • Khadas Tone Board
  • DIY Case 2  (coming soon)
  • USB-C 30W Adapter (White)
  • USB-C 24W Adapter (White)
  • USB-C Cable (White, Male to male)
  • HDMI Cable (19-Pin)

Note: current TS050 Touchscreen Kit includes an additional FPC cable for VIM4. The original FPC cable is not compatible with VIM4; current DIY Case is not compatible with VIM4 due to the HDMI IN interface. We are working on DIY Case 2 for VIM4.


Incompatible Accessories:

  • DIY Case (HDMI IN won't work with this case)
  • IR Remote (VIM4 doesn't have IR Receiver)
  • M2X Extension (PoE can only supply power. No Ethernet Data Transfer on VIM4)


What's in the Box:

  • VIM4
  • Antenna x2
  • New VIM Heatsink (Bareboard version excluded)
  • 3705 Cooling Fan (Bareboard version excluded)
  • User Manual
  • Quickstart Guide

* USB-C adapter and cable sold separately.

Product Details

Processor (CPU)
Amlogic A311D2
Board Size
82.0 x 58.0 x 11.5 mm
8GB LPDDR4X 2016MHz, 64bit
Display Port
micro HDMI input port for smart display & video conferencing applications
Ethernet Controller
Gigabit Ethernet with WoL support
ARM Mali-G52 MP8(8EE) GPU up to 800MHz
x3 (Power / Func / Reset)
IR Receiver
2 Channels
Power management, and boot media (SPI Flash/eMMC) setup
OS Support
Ubuntu 22.04
Wireless Standard
AP6275 2T2R Wi-Fi 6 Module
Cooling Fan
4-Pins 0.8mm Pitch Header, with PWM Speed Control
82.0 x 58.0 x 11.5 mm
USB Device Port
2x USB 3.0 ports, 2x USB 2.0 ports
40 Pin GPIO Header (USB, I2C, I2S, UART, ADC etc)
Board Category
