Ships in 5~10 Days
US$286.90

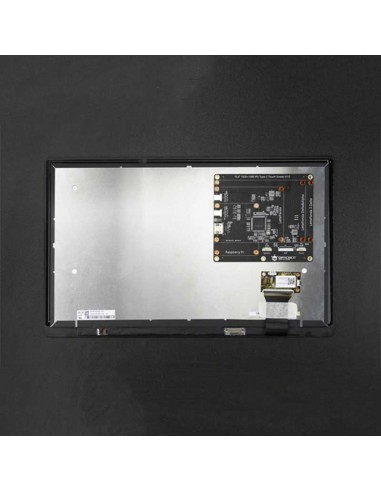

This is a 15.6-inch IPS capacitive touch display with a resolution of 1920×1080 that supports full-function Type-C or HDMI signal input. It is compatible with single-board computers such as LattePanda Sigma, LattePanda Alpha, LattePanda Delta, Raspberry PI 4B and Jetson Nano, as well as various types of desktop computers, laptops, mini PCs, industrial computers and tablets.

Description

The full-function Type-C display interface is a multi-functional interface standard. A Type-C data cable can achieve various functions, including audio transmission, video transmission, charging, and touch functions. In addition, the fully functional Type-C interface also supports reverse PD power to provide power for connected devices. This interface enables the integration of multiple functions through a single Type-C connection, thus simplifying the connection and providing a more convenient user experience with flexibility and versatility.

Drawn from these merits, the display is adorned with identical all-encompassing Type-C interfaces, meticulously engineered to accommodate blind insertion, obviating the need for a deliberate demarcation between the data conduit and the power supply port. Simultaneously, the product retains the conventional and widely embraced HDMI display interface, thereby ensconcing compatibility with a broader spectrum of HDMI output devices.

In addition, with the 15.6-inch large screen display and ten-point touch function, the product is very suitable for human-computer interaction scenarios. Its 1920x1080 high-definition resolution, IPS full view, entire fit process surface anti-glare treatment and other high-quality parameters make it more scene applicability.

.

.

FEATURES

  • Supports ten-point capacitive touch
  • Supports dual-channel audio output
  • Supports both Type-C and HDMI video transmission methods
  • The full-featured Type-C interface allows single-line connection for video, audio, and touch signals and supports reverse PD power delivery.
  • Type-C does not require distinguishing between power and data interfaces, supporting blind insertion.
  • Compatible with Raspberry Pi 4B, LattePanda, LattePanda Alpha/Delta, and LattePanda Delta 3 installations.
  • Compatible with various desktop computers, laptops, mini PCs, industrial computers, and tablets.

.

APPLICATIONS

  • Human-Machine Interaction Panel
  • Terminal Control Panel
  • IoT Control Panel

.

SPECIFICATION

  • LCD size: 15.6 inches
  • Resolution: 1920×1080
  • Pixel pitch (um): 179.25(H) × 179.25(V)
  • Pixel arrangement: RGB Vertical Stripe
  • Color gamut: 45%
  • Display colors: 262k (6-bit)
  • Active area(mm): 344.16(H)×193.59(V)
  • Surface treatment: Anti-Glare
  • Surface hardness: 3H
  • Brightness: 250cd/㎡
  • Refresh rate: 60Hz
  • Transmittance: ≥86%
  • View angle: Full-view angle
  • Number of touches: 10
  • Touch panel hardness: ≥6H
  • Bonding method: Optical bonding
  • Outline dimension(mm): 369.5(H)×288.6(V)×5.2(D)
  • Interface: eDP
  • LCD brand: BOE
  • Operating temperature: 0~+50℃
  • Weight: 766g

.

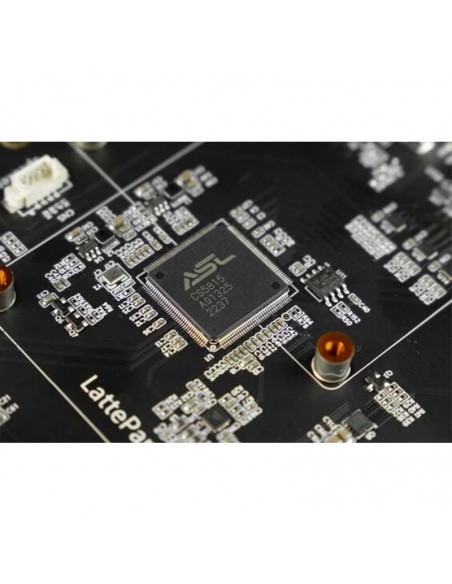

Display driver board parameters

  • Display interface: Type-C/HDMI
  • Speaker interface: MX1.25-4P
  • Touch interface: Type-C
  • Power interface: Type-C
  • Power voltage: PD3.0, 5~20V
  • Mounting hole size: Hole diameter 3.0mm
  • PCB size(mm): 125(V)×110(H)×1.6(D)

.

Touch control board parameters

  • Touch chip: ILI2511
  • Touch interface: MX1.25-4P
  • Mounting hole size: Hole diameter 3.0mm
  • PCB size(mm): 50(H)×26(V)×4.8(D)

.

SHIPPING LIST

  • 15.6" 1920×1080 IPS Type-C Capacitive Touch Screen ×1
  • Display Driver Board ×1
  • Touch Control Board ×1
  • eDP Screen Connection Cable 210mm ×1
  • Dual-Head MX1.25-4P Touch Screen Cable ×1
  • HDMI A to A Adapter Module for LattePanda Delta 3 ×1
  • HDMI A to A Adapter Module for LattePanda Delta/Alpha ×1
  • HDMI A to D Adapter Module for Raspberry Pi ×1
  • M3×6+8mm Single-Head Copper Pillar × 5
  • M3×6+9mm Single-Head Copper Pillar × 5
  • M2.5×6+8mm Single-Head Copper Pillar ×5
  • M3×6 Round Head Screw × 5
  • M2.5×6 Round Head Screw ×5
  • Product Certificate and Warranty Card ×1

Product Details

Display Resolution
1920×1080
Liquid Crystal Display (LCD)
15.6 inches
Transmittance
≥86%
Interface
eDP
Dimension
369.5(H)×288.6(V)×5.2(D)
Operating Temprature
0~+50℃
Weight
766g
DFR1045
