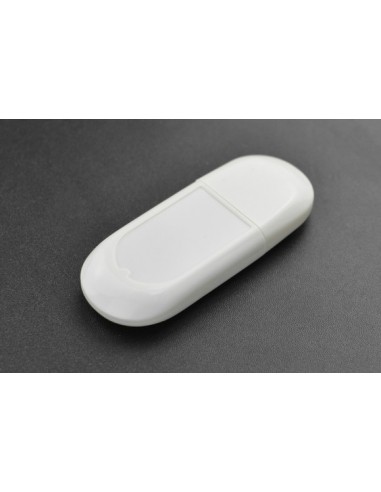

USB GPS Receiver (Compatible with Raspberry Pi/ LattePanda/ Jetson Nano)

USB GPS Receiver (Compatible with Raspberry Pi/ LattePanda/ Jetson Nano)

Name: USB GPS Receiver (Compatible with Raspberry Pi/ LattePanda/ Jetson Nano)
Brand: DFRobot
SKU: TEL0137
Price: 17 USD
Availability: InStock

Ships directly from Canada

US$17.00

This GPS receiver brings much more accurate and faster positioning performance with stronger signal compared with traditional GPS receivers. It is compact, lightweight and portable.

Ask a Quote

Description

Integrated with built-in receiving antenna, this product adopts a high-precision positioning chip and industrial-grade manufacturing process so that it can meet the positioning requirements of both industrial-grade and personal use. The GPS receiver has battery inside for supplying power for storing satellite data, such as satellite signal status, final position and time that would greatly increase the positioning speed at the module’s next boot. In addition, this receiver adopts USB interface, which can be conveniently used in maincontrollers like Raspberry Pi, LattePanda. It is suitable for vehicle navigation, handheld positioning, wearable devices and other fields.

TEL0137

Specification

Chip: UBX-G7020-KT
Frequency: L1, 1575.42MHz/L2,1561.10MHZ/L3,1602.00MHZ
Baud Rate: 4800,9600,19200,38400,57600,115200bps
Receiving Channel: 56CH
Sensitivity: tracking -162dBm; Acquisition: 160dBm; cold start: -148dBm
Cold Start: 29s average
Warm Start: 3s average
Hot Start: 1s average
Accuracy: horizontal position accuracy<2.5M, SBAS<2.0M
Timing Accuracy: 30ns
Update Rate: 1Hz
Outline Dimension: 60×24×9mm
Weight: 50g
Operating Temperature: -40℃~85℃
Storage Temperature: -40℃~85℃

Product Details

Reference TEL0137
