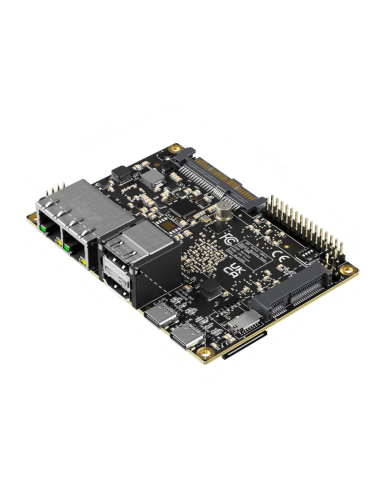

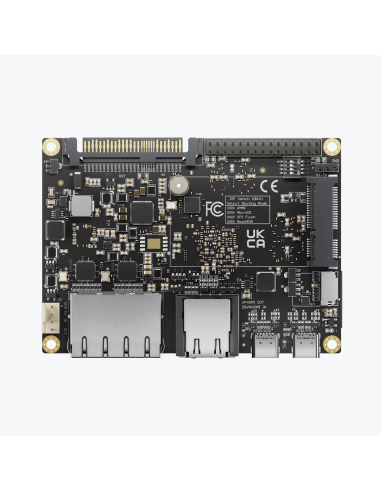

Blade 3

Name: Blade 3
Brand: Mixtile
SKU: M-BL3
Price: 239 USD
Availability: InStock

In Stock

US$239.00

8-Core CPU 4-Core GPU stackable single-board computer, preload Ubuntu 22.04.

Equipped with Octa-core 64-bit processor, maximum of 32GB RAM and 256GB eMMC storage, multiple peripheral interfaces including 4-lane PCIe Gen3, SATA 3.0, MIPI CSI, and dual 2.5Gb Ethernet.

Memory+Storage :

Ask a Quote

Description

Technical Specification:

- Rockchip Octa-core Cortex-A76/A55 SoC processor RK3588
- Up to 32GB LPDDR4 memory and up to 256GB eMMC storage
- NPU up to 6 TOPS
- HDMI 2.1 out 8K@60fps, HDMI 2.0 in 4K@60fps, 4-lane MIPI-CSI
  - H.265/H.264/VP9 video decoder up to 8K@60fps
  - H.264/H.265 video encoder up to 8K@30fps

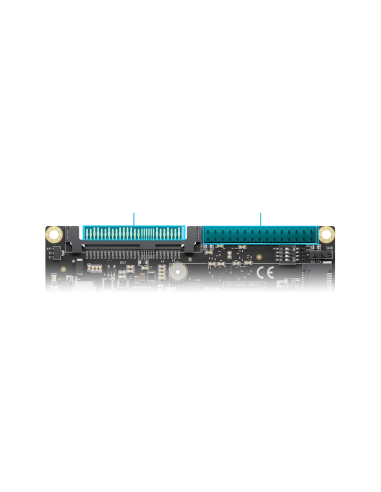

- 4-lane PCIe Gen3 in U.2 port
- SATA 3.0 in U.2 port
- Dual 2.5 Gigabit Ethernet Ports, link aggregation
- Micro-SD 3.0 Flash Expansion Socket
- Mini-PCIe socket with PCIe Gen2.1 and USB 2.0
- Dual USB 3.2 Gen1 Type-C ports with DisplayPort 1.4a
- 30-pin GPIO socket,
  - Digital I/O, I2C, USB 2.0, TTL UART, SPI, I2S
- 2.5-inch Pico-ITX (100 x 72mm), fanless
- Power input supports PD 2.0 over USB-1 Type-C Port, 12V DC standard SATA power over U.2 port
- Power: 10W (Max.)
- 0 to +80°C operating temperature
- Preload Ubuntu 22.04 , will support other Linux distributions and Android 12

  Mixtile Official Site

  Block Diagram:

Product Details

CPU: Rockchip Octa-core Cortex-A76/A55 SoC processor RK3588
NPU: Up to 6 TOPS
Memory: Up to 32 GB LPDDR4/LPDDR5 memory, up to 256 GB eMMC storage
Storage Capacity: 4-lane PCIe Gen 3 in U.2 port, SATA 3.0 in U.2 port, Micro-SD 3.0 flash socket
HDMI Signal Output: 8K @ 60 FPS or 4K @ 120 FPS
HDMI Signal Input: 4K @ 60 FPS
Integrated Camera Module: 4-lane MIPI-CSI
Ethernet Ports: Dual 2.5 gigabit Ethernet ports
On-Board View Encoder: H.264/H.265 video encoder up to 8K @ 30 FPS
On-Board View Decoder: H.265/H.264/VP9 video decoder up to 8K @ 60 FPS
USB Ports: Dual USB 3.2 Gen 1 Type-C ports, DisplayPort 1.4 A
GPIO: 30-pin GPIO socket, Digital I/O, I²C, USB 2.0, TTL UART, SPI, I²S
Power: USB1/PD Type-C Port support USB PD 2.0 protoco
PCIe: Mini-PCIe socket with PCIe Gen 2.1, USB 2.0 support
OS Support: Support other Linux distributions and Android 12
Dimension: 2.5-inch Pico-ITX form factor, 100 x 72 mm

Reference SBC-BLADE3-0432

mpn M-BL3-4G

Attachments

Datasheet

Datasheet Blade 3

Download (1.24MB)

User Manual

Usermanual Blade 3

Download (1.05MB)

Schematic

Schematic Blade 3

Download (970.51KB)

Breakout Board Pinout

Download (14.37KB)
