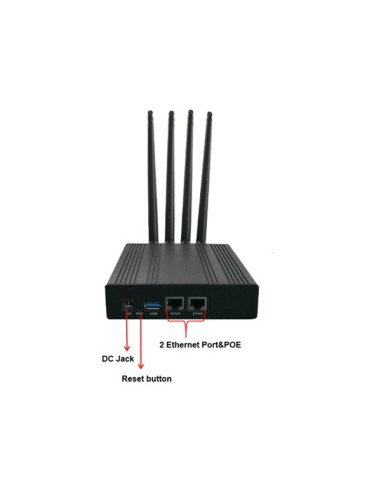

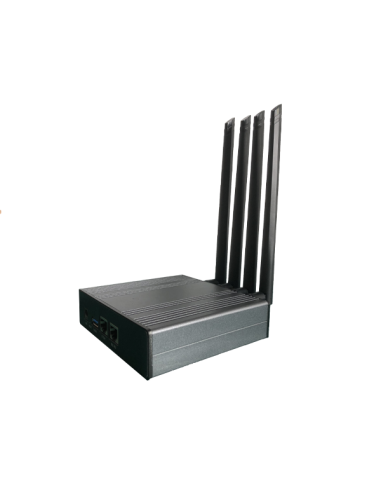

DR-AP40X9-A

Name: DR-AP40X9-A
Brand: CorpShadow Bizstore
SKU: DR-AP40X9-A
Price: 335 USD
Availability: InStock

In Stock

US$335.00

DR4029/DR4019 based on IPQ4029/IPQ4019 chipset is an enterprise wireless module integrated with 2x2 5G high power Radio module and 2x2 2.4G high power Radio module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses establishment

Ask a Quote

Description

Dipole antenna

2 x 2.4G&5G Antenna
5dBi 2.4GHz/5Ghz
SMA Plug interface
Plastic rod of black
RoHS compliance

Enclosure

Dimension: 132x 119 x 34 mm
Aluminum alloy material
Support WallysDR40X9

Features

Featuring with industrial-grade IPQ4029/ IPQ4019 chipset
Integrated with 2x 2 5G high power（27dbm per chain） Radio module and 2x2 2.4G high power （27dbm per chain）Radio module
Support 4.940GHz to5.825GHz Frequency Range
Support 2.412GHz to 2.482GHz
Support 2 x 5G MMCX Connectors and 2x2.4G MMCX
5MHz/ 10MHz/20MHz/40MHz/80MHz Bandwidth
Support 11ABGN/AC
RoHS compliance ensure a high level protection of human health and the environment fromrisks that can be posed by chemicals

Applications

Security Surveillance
Commercial radio coverage
Hotel Wireless application
Country coverage
Forest fire protection engineering
Some special scene application

Product Details

Reference DR-AP40X9-A

Attachments

Datasheet

DR-AP40X9-A

Download (158.98KB)

Reviews (0)

No reviews
