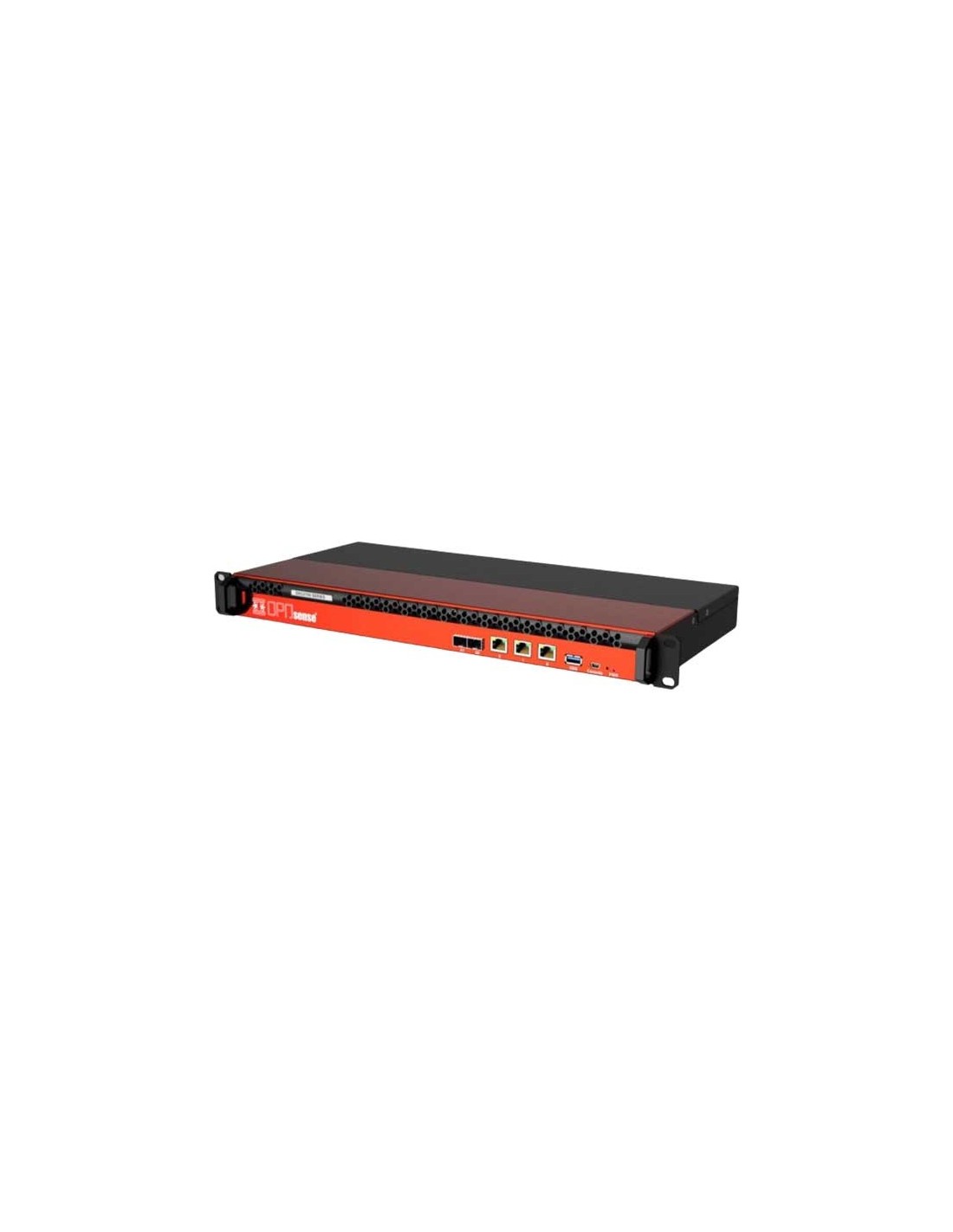

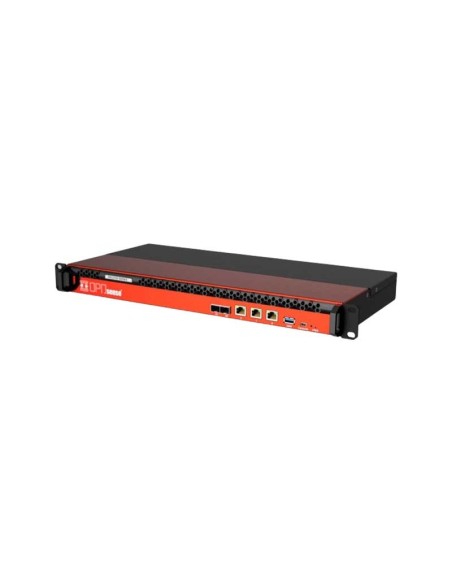

DEC2752 – OPNsense® Rack Security Appliance

Software

• Preinstalled software: OPNsense®
• License: Open Source + 1 year free Business Edition

Hardware Specifications

• Typical Applications: Firewall / Routing, VPN, IDPS
• SFP+ Ports [10Gbps]: 2
• 2.5GbE RJ45 Ports [100/1000/2500Mbps]: 3
• USB 3.0 Ports: 1
• Console Port: 1
• Internal Storage: 256GB Solid State Flash
• Memory: 8GB DDR4
• CPU Cores: 4 / 8 Threads (max frequency 2.2Ghz)
• Virtual Interfaces (802.1q VLANS)1: 4093.

System Performance

• Firewall Throughput: 10Gbps
• Firewall Packets Per Second: 830Kpps
• Maximum Firewall Port to Port Throughput: 8.5Gbps
• Firewall Port to Port Packets Per Second: 719Kpps
• Concurrent Sessions: 7000000
• New Connections Per Second: 50000
• Firewall Latency (average): 150us
• Firewall Policies (Recommended Maximum)1: 10000
• IPsec VPN Throughput (AES256GCM16): 1.2Gbps
• IPsec VPN Packet Per Second (AES256GCM16): 178Kpps
• Threat Protection Throughput Packet Per Second: ~85Kpps
• Threat Protection Throughput: ~1Gbps
• High Availability with State Synchronisation: Requires Two

Dimensions

• Height x Width x Depth (mm): 43.8 (1U) x 482.6 (19″) x 242 (214 excl.mount/handle)
• Height x Width x Length (inches): 1.73 x 19 x 9.53 (8.43 excl.mount/handle)
• Form Factor: 19″ Rackmountable
• Weight (appliance only): 2.65Kg

Environment

• Power Requirements: 100-240VAC, 50-60Hz
• Maximum Current: 0.8A
• Power Consumption (Typical): 15W
• Heat Dissipation: 51.2 BTU/hr
• Operating Temperature: 0 to +45°C
• Storage Temperature: -20 to +70°C
• Humidity: 10-90% non-condensing

Regulatory Compliance

• FCC part 15 Class A, CE, Rohs
