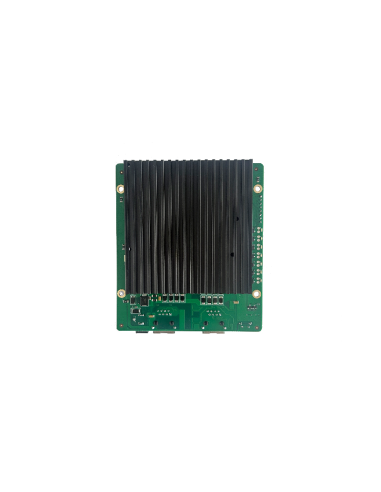

DR5018S - Industrial Grade Router Board

The DR5018S Router Board, built on the Qualcomm-Atheros IPQ5018 chipset, is a cutting-edge enterprise-grade wireless module designed for high-performance networking applications. Featuring a dual-core ARM 64-bit A53 processor clocked at 1.0GHz and 512MB DDR3L system memory, it ensures robust processing power and seamless multitasking capabilities.

Equipped with 2x2 On-board 2.4GHz radio (up to 573Mbps), 2x2 5GHz radio (up to 2402Mbps), and 2x2 6GHz radio (up to 2402Mbps), the DR5018S supports 802.11ax MU-MIMO OFDMA, offering superior wireless performance for bandwidth-intensive tasks. Its support for Bluetooth 5.1 and optional GPS integration further enhances connectivity and positioning capabilities.

The router board supports 11x 1Gbps Ethernet Ports and 1x 2.5Gbps Ethernet Port, along with USB 2.0, UART, and SGMII interfaces for versatile connectivity. With 20/40MHz channel support for 2.4GHz, 20/40/80/160MHz support for 5GHz, and 20/40/80/160MHz support for 6GHz, it delivers excellent spectrum efficiency.

Designed for demanding applications such as MU-MIMO OFDMA Access Points, Easy Mesh hotel wireless networks, and Smart AP TWT solutions, the DR5018S is well-suited for office spaces, hotels, factories, and warehouses, even under challenging RF conditions.

Key Specifications:

• Processor: Dual-core ARM 64-bit A53 @1.0GHz
• Memory: 512MB DDR3L System Memory
• Storage: 8MB NOR Flash, 128MB NAND Flash
• Wireless: 2x2 2.4GHz, 5GHz, 6GHz radios
• Bluetooth: Support BT5.1(Optional)
• GPS: Support GPS (Optional)
• Ethernet: 11x 1Gbps Ports, 1x 2.5Gbps Port
• Power: 12V-52V DC Jack, 802.3at/BT Passive PoE
• Temperature: Operating: -40°C to 70°C | Storage: -45°C to 105°C

Applications:

• 802.11ax MU- MIMO OFDMA Access Point

• Mesh router supporting Easy Mesh Hotel Wireless

• Smart AP TWT

Whether you’re deploying high-performance Access Points, creating a robust mesh network, or implementing smart wireless solutions, the DR5018S Router Board ensures consistent connectivity, scalability, and optimal performance.
