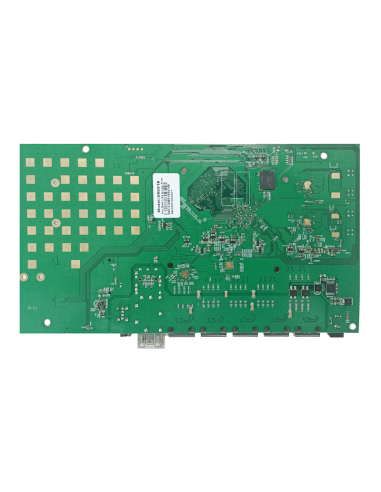

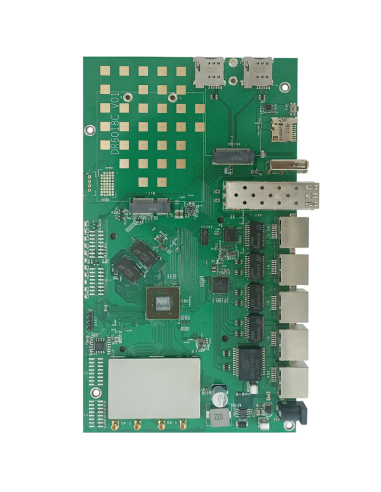

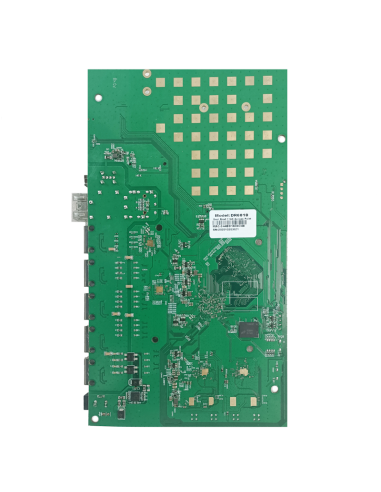

DR6018C Router Board – Qualcomm IPQ6010

This board features a quad-core ARM 64-bit A53 processor operating at 1.8GHz, ensuring robust processing capabilities for a variety of networking tasks.

Key Features:

• Processor: Qualcomm-Atheros IPQ6010 Quad-core ARM 64-bit A53 @1.8GHz
• Memory: 1GB DDR3L (2x 512MB) with a 32-bit memory bus design
• Storage: 32MB NOR Flash, 256MB NAND Flash
• Wireless Connectivity:
  • 2x2 On-board 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, up to 573Mbps physical data rate, max 23dBm per chain
  • 2x2 On-board 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, up to 1201Mbps physical data rate, max 20dBm per chain
• Ethernet Ports:
  • 1 x 1Gbps Ethernet Port with PoE
  • 3 x 1Gbps Ethernet Ports
  • 1 x 2.5Gbps Ethernet Port
• SFP Port: 1 x SFP port
• Expansion Slots:
  • M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0, supporting modules like QUECTEL RM500Q-GL
  • SD Card Slot
• USB Interface: 1 x USB 2.0 Port
• Power Options:
  • 24V~48V passive PoE/Active PoE (supports 802.3bt)
  • 24V DC Jack
• Additional Features:
  • Bluetooth CSR8811 BLE 4.2
  • Support for OpenWrt and QSDK
  • 4 x MMCX Connectors for external antennas
  • Dimensions: 208mm x 116mm

Applications:

• 802.11ax MU-MIMO OFDMA Access Points
• Mesh Routers supporting EasyMesh for hotel wireless applications
• Smart AP with Target Wake Time (TWT)
• Integration with 5G cellular modems for enhanced connectivity
