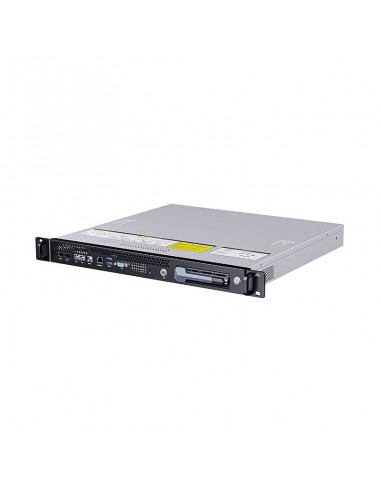

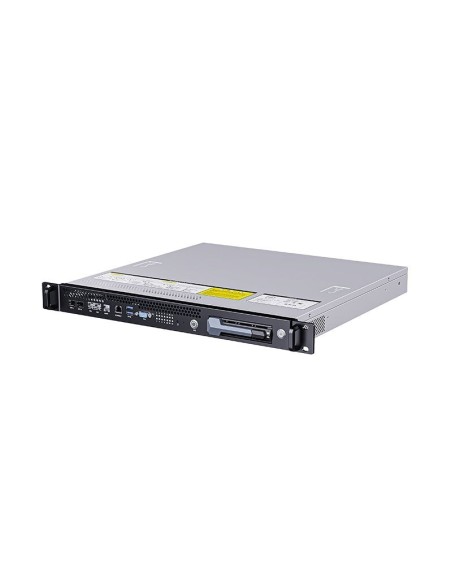

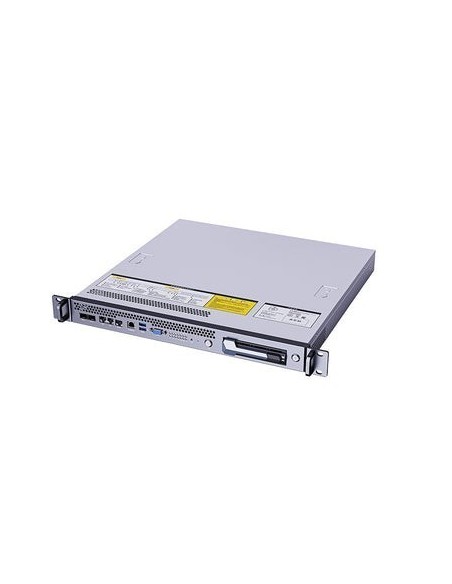

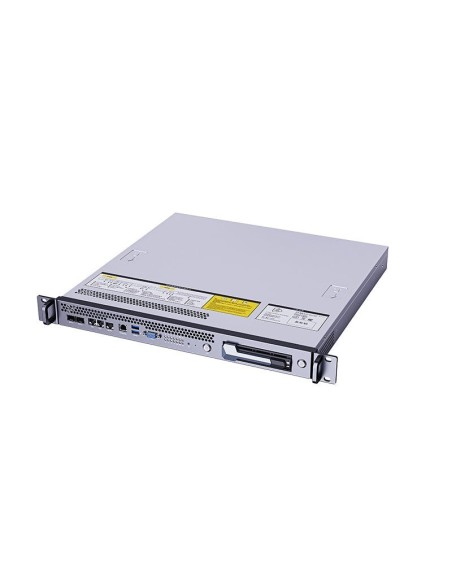

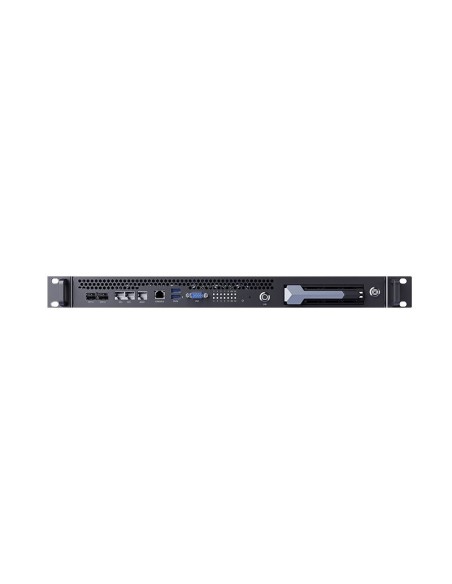

CSB1-N10NOrinNX Jetson Orin NX Server

Name: CSB1-N10NOrinNX Jetson Orin NX Server
Brand: Firefly
SKU: CSB1-N10NorinNX
Price: 14203.65 USD
Availability: InStock

Accepting Orders

US$14,203.65

The CS-B1N10-NORINNX Cluster Server is a high-performance computing solution designed for scalable and efficient data processing.

Memory+Storage :

Server Spec:

Ask a Quote

Description

The CS-B1N10-NORINNX Cluster Server is a high-performance computing solution designed for scalable and efficient data processing. It features:

Powerful Processing: Equipped with 10 nodes, each integrating high-performance processors for demanding workloads.
Flexible Storage: Supports multiple storage configurations, including NVMe SSDs, for fast data access and large-capacity storage needs.
High-Speed Connectivity: Includes Gigabit Ethernet and optional 10G networking for seamless data transfer and cluster communication.
Robust Expansion: Offers PCIe expansion slots for additional GPUs, FPGAs, or other accelerators to enhance computational capabilities.
Efficient Cooling: Designed with an optimized thermal solution to ensure stable operation under heavy workloads.
Compact & Scalable: A space-saving design allows for easy deployment in data centers or edge computing environments, with support for cluster expansion.

Ideal for AI training, cloud computing, big data analysis, and other high-performance computing applications.

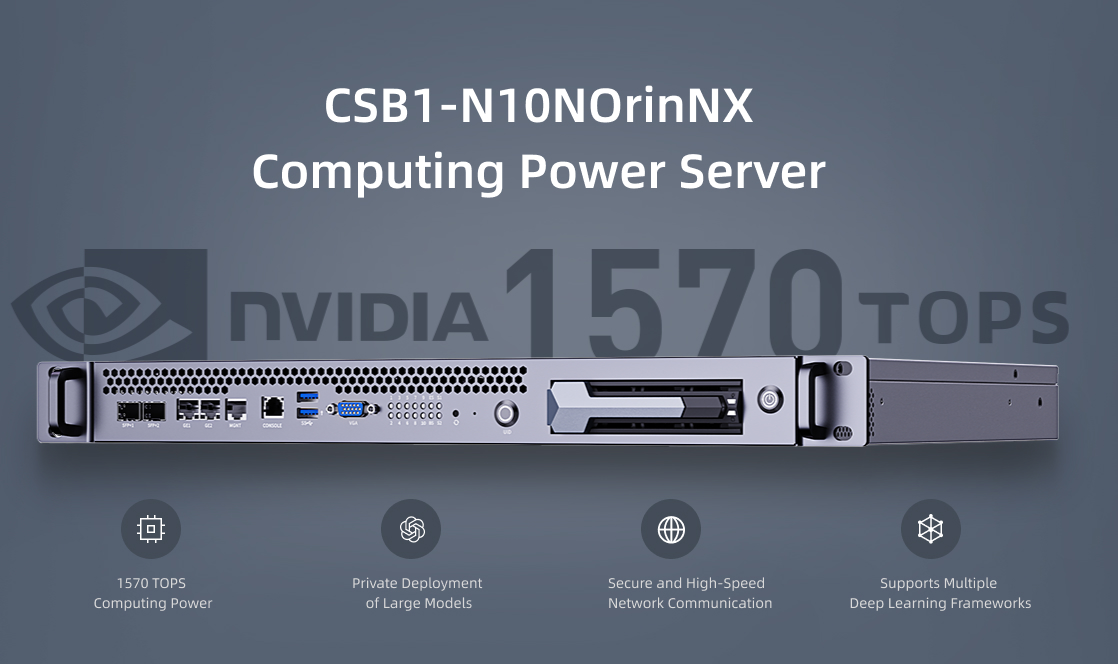

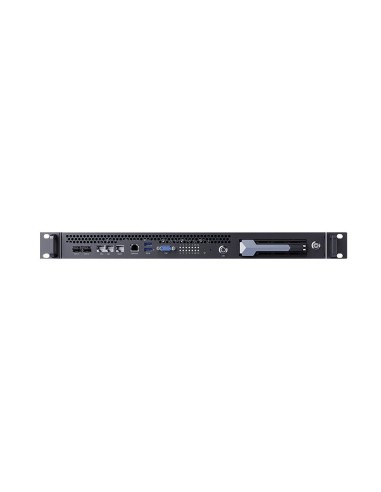

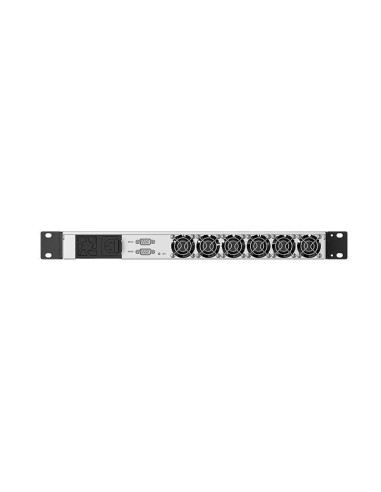

CSB1-N10NOrinNX Computing Power Server

CSB1-N10R3576 Computing Power Server 60T Large Model Privatization Deployment 1U BMC Ruixin Micro

Category	Specification

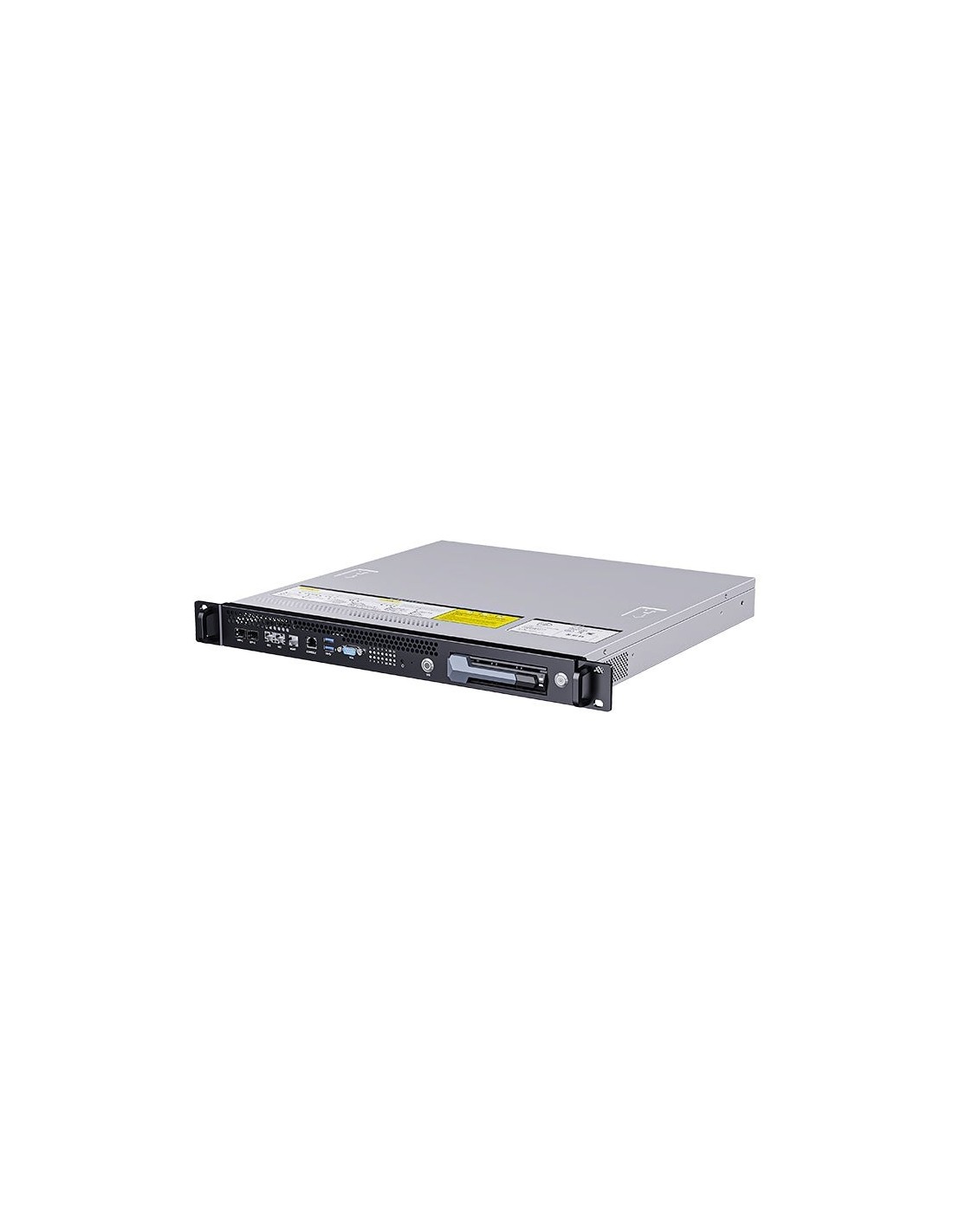

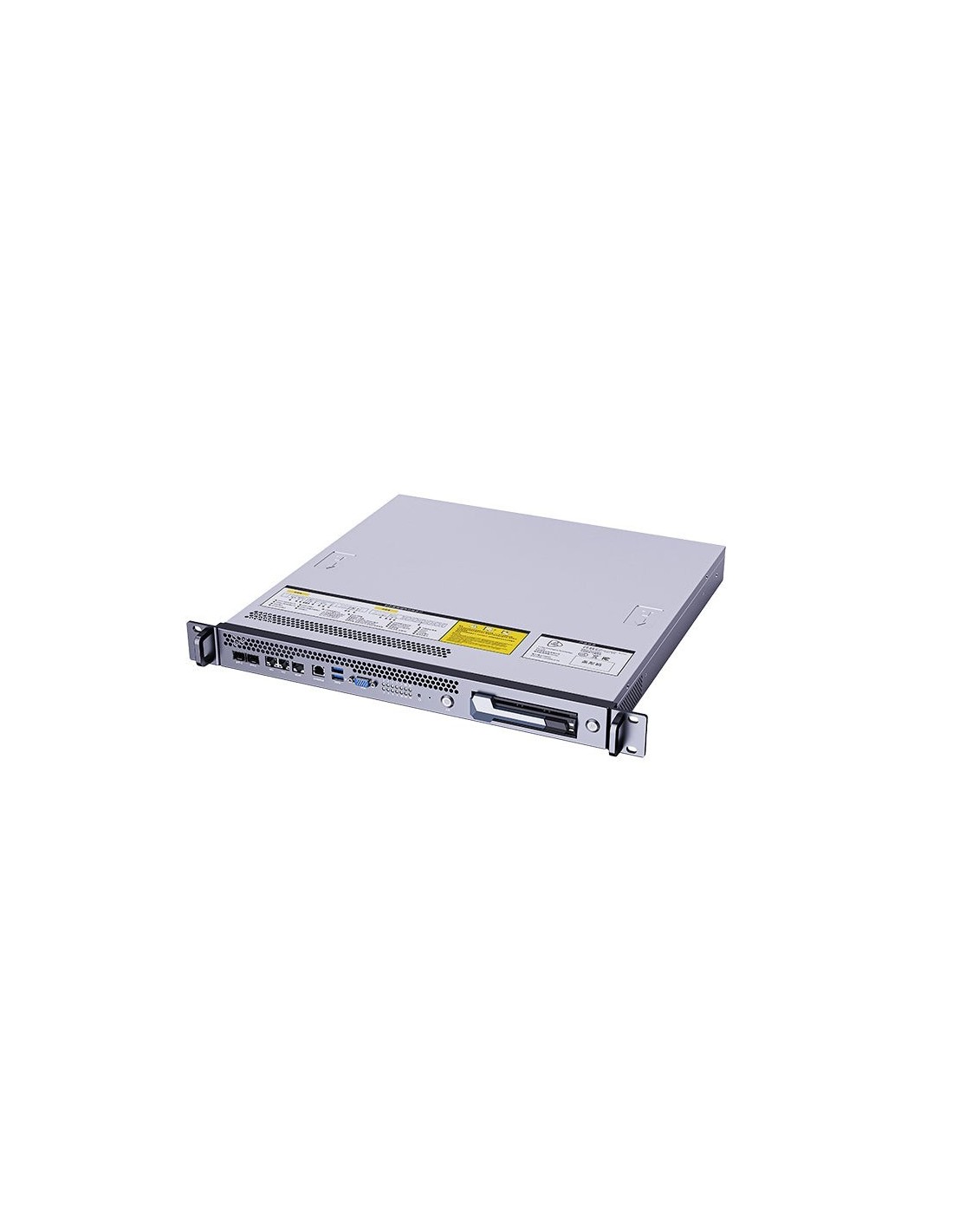

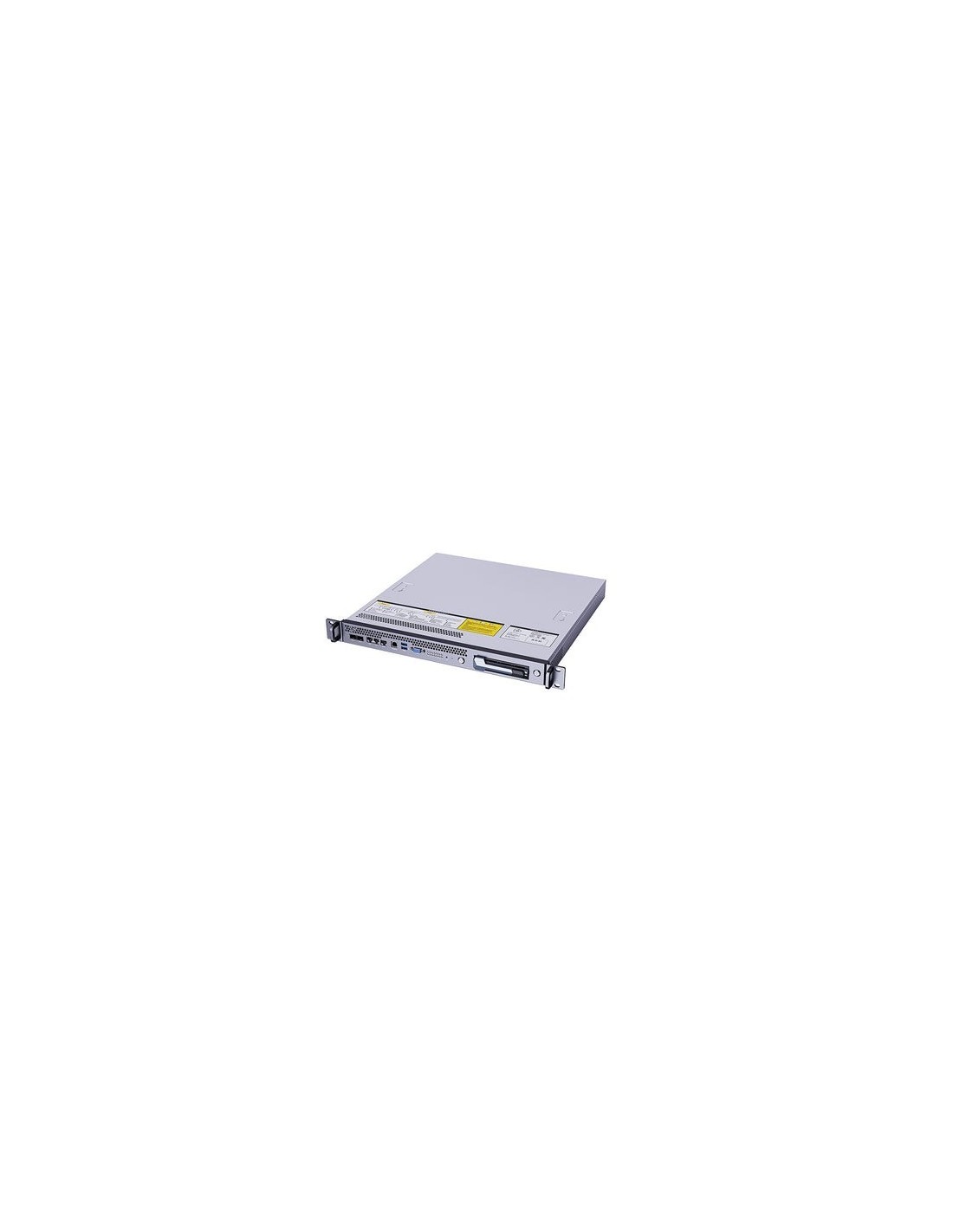

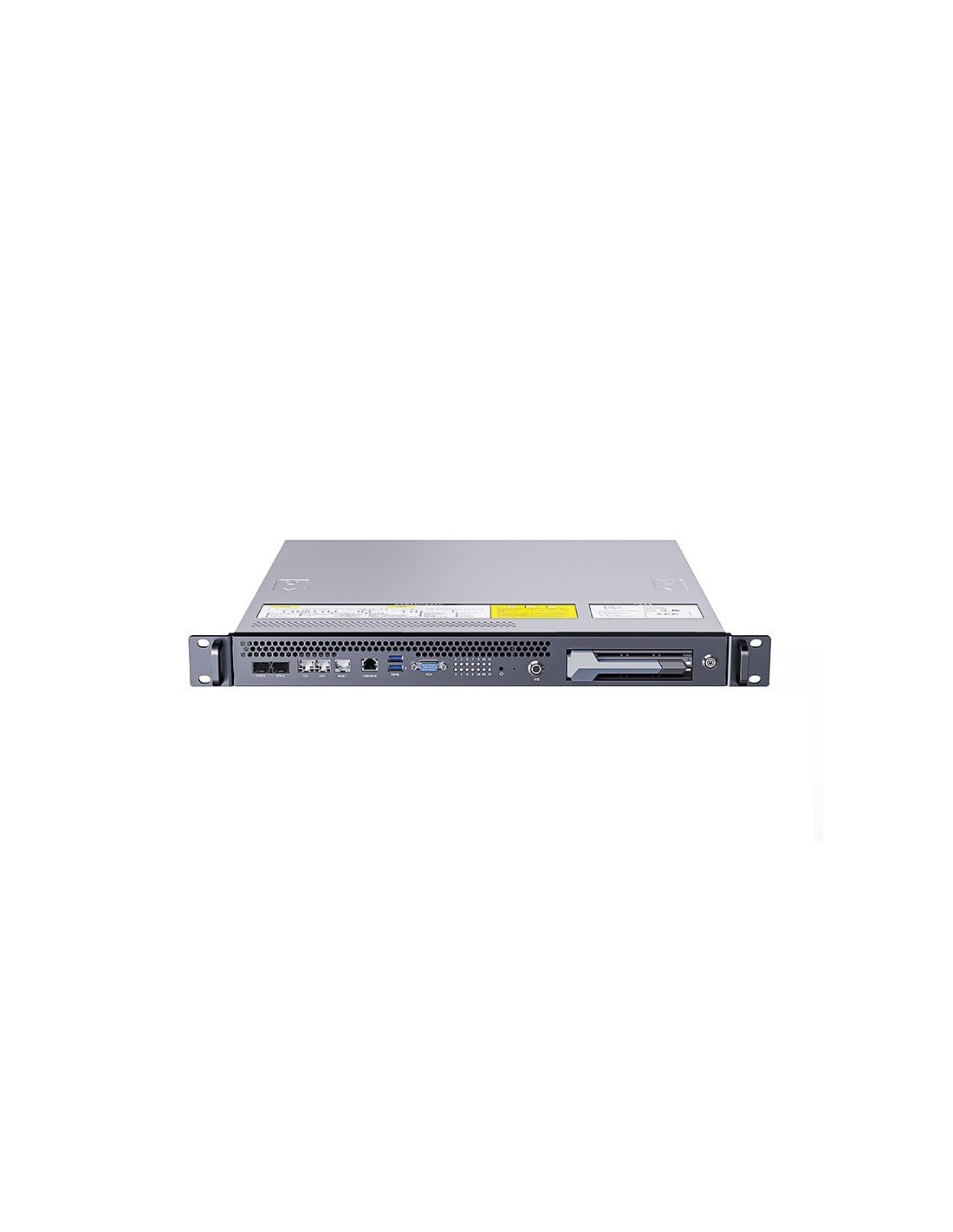

Server Form	1U rack-mounted computing power server
Framework	ARM architecture
Number of Nodes	10 distributed computing nodes (up to 80 ARM cores) + 1 control node
Compute Nodes	Octa-core 64-bit processor NVIDIA Jetson OrinNX, main frequency up to 2.0GHz
Control Nodes	Octa-core 64-bit processor RK3588, main frequency up to 2.4GHz, highest computing power 6TOPS
AI Computing Power	1570 TOPS (INT8)
RAM	16GB LPDDR5 × 10 (number of compute nodes)
Storage	256GB (2242 PCIe NVMe SSD, server is internally assembled)
Storage Expansion	3.5-inch/2.5-inch SATA3.0/SSD hard drive slot × 1 (BMC can operate the drive directly, child nodes can indirectly access via network sharing through BMC)
Power	550W AC power supply (Input: 90V AC~~264V AC, 47 Hz~~63 Hz, 8A) (hot swappable not supported)

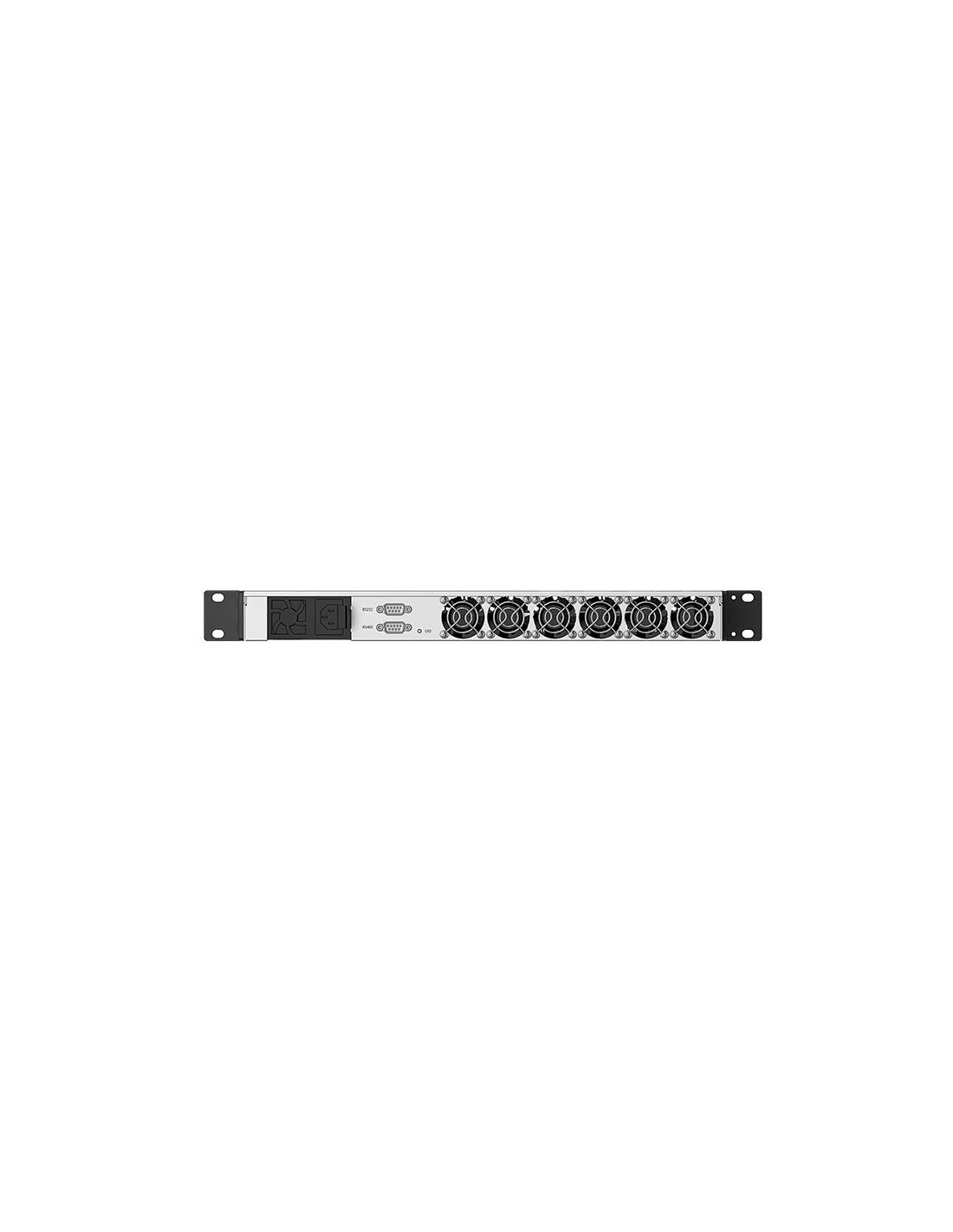

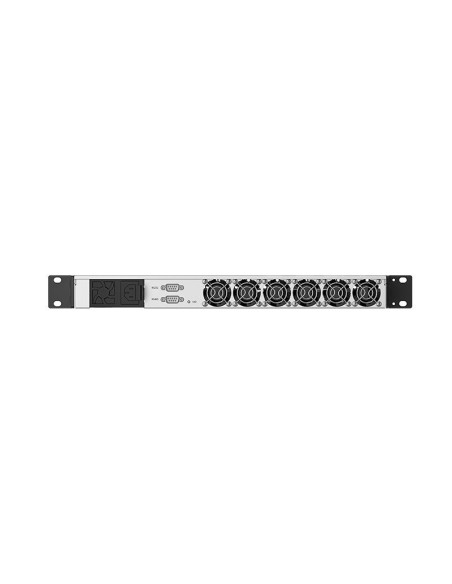

Fan Module	6 high-speed cooling fans
Size	420.0mm(L) × 421.3mm(W) × 44.4mm(H)
Installation Requirements	IEC 297 Universal Cabinet Installation: 19 inches wide, 800 mm deep and above Retractable slideway installation: cabinet distance between front and rear holes 543.5 mm ~ 848.5 mm
Full Weight	Server net weight: 8.1kg, total weight with packaging: 10.3kg
Environment	Operating Temperature: 0℃ ~ 45℃ Storage Temperature: -40℃ ~ 60℃ Operating Humidity: 5% ~ 90% RH (non-condensing)

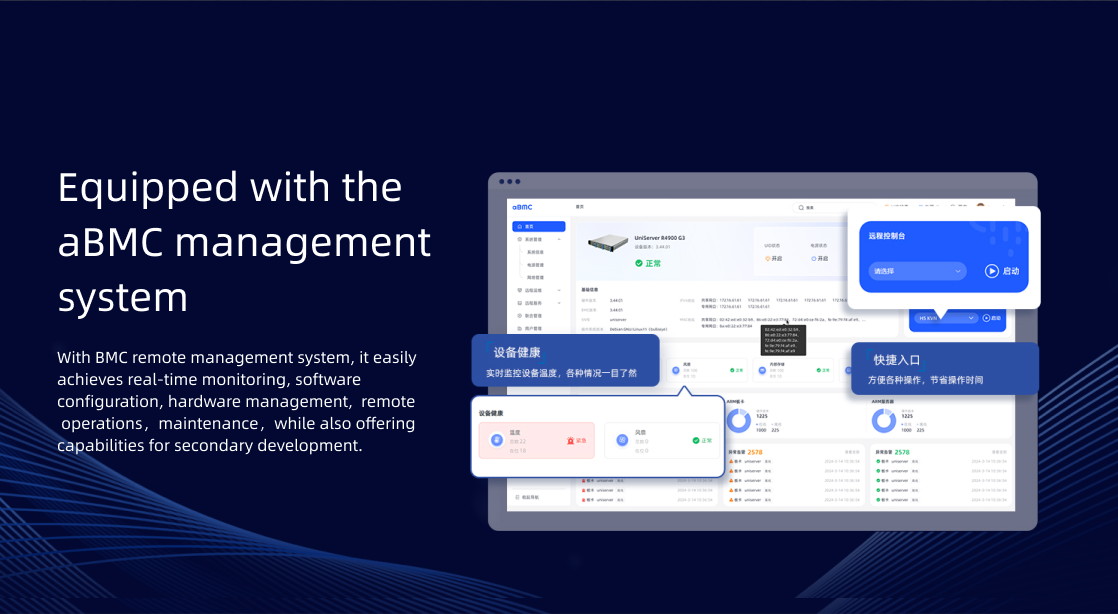

BMC	Integrated web-based management interface with Redfish, VNC, NTP, monitoring advanced and virtual media, BMC system can be redeveloped
Large Model Support	Supports ROS robot model, local LLM deployment via Ollama, ultra-large-scale parametric models (LLaMa3, Phi-3 Mini), large visual models (EfficientViT, NanoOWL, NanoSAM, SAM, TAM), AI painting with ComfyUI, Flux, Stable Diffusion, Stable Diffusion XL image generation in AIGC
Deep Learning	Supports frameworks accelerated by cuDNN, including PaddlePaddle, PyTorch, TensorFlow, MATLAB, MxNet, Caffe2, Chainer, Keras; supports custom operator development Supports Docker containerization for image deployment
AI Software Stack	NVIDIA Jetson Orin series software stack to power generative AI applications, transformer architecture support, optimized MLPerf performance

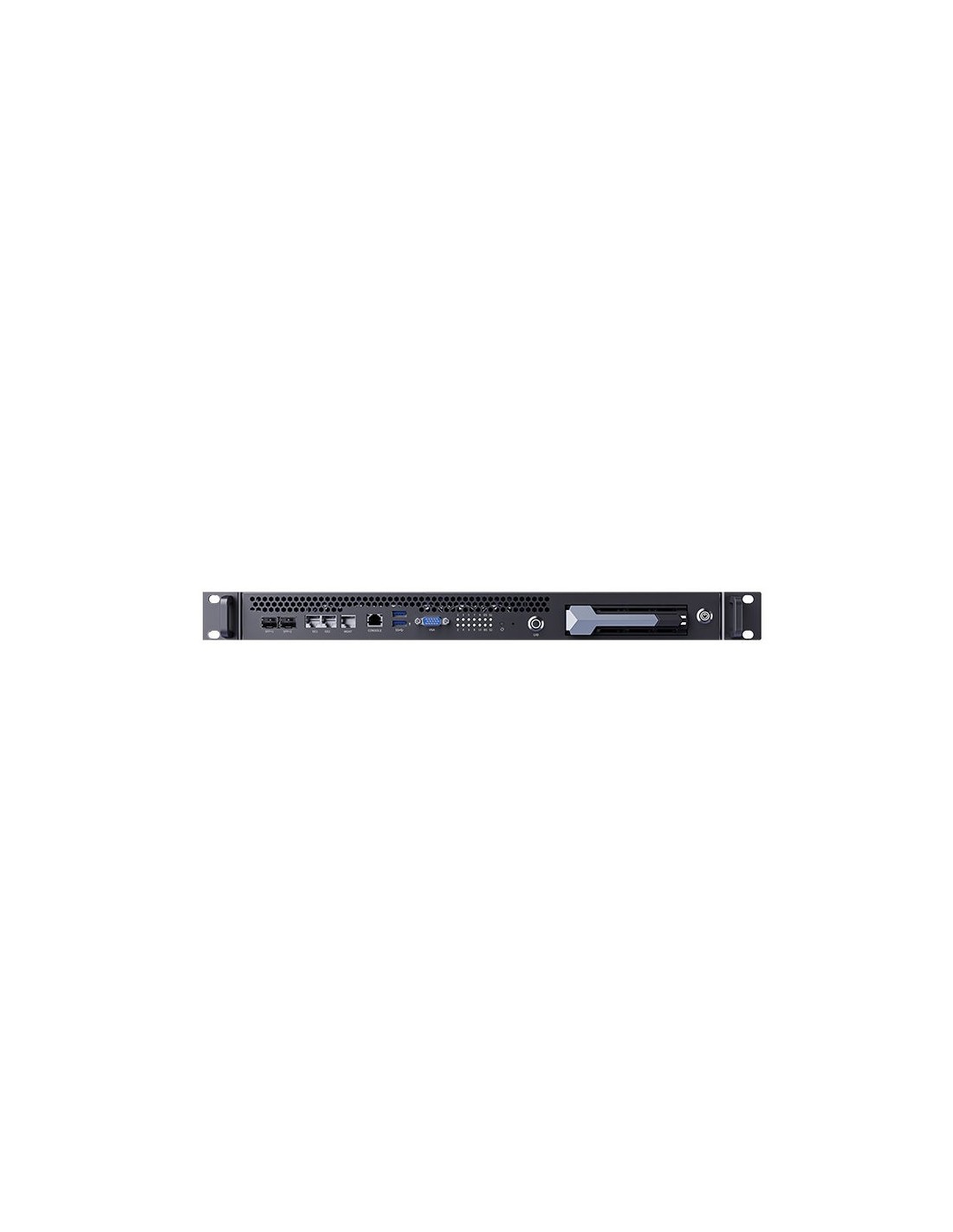

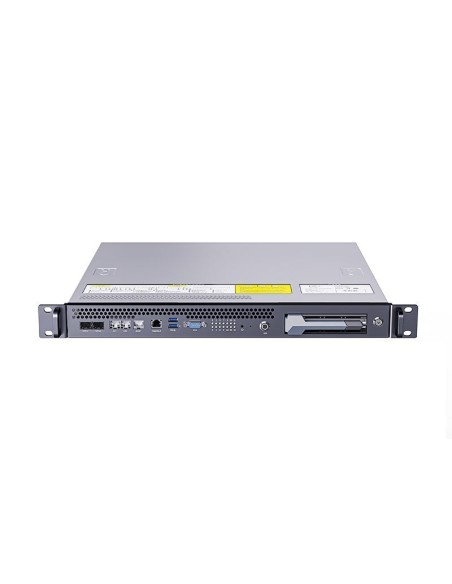

Internet	2 × 10G Ethernet (SFP+), 2 × Gigabit Ethernet (RJ45), 1 × Gigabit Ethernet (RJ45, MGNT used for BMC network)
Console	1 × Console (RJ45, BMC debug serial port, baud rate 115200)
Display	1 × VGA (max resolution 1080P, BMC management display)
USB	2 × USB3.0 (lower USB is USB3.0 OTG, BMC can be upgraded by USB flash drive)
Button	1 × Reset, 1 × UID, 1 × Power button
Other Interfaces	1 × RS232 (DB9, baud rate 115200), 1 × RS485 (DB9, baud rate 115200)

Product Details

Reference CSB1-N10NorinNX

MPN CSB1-N10NorinNX

Attachments

CSB1-N10 Datasheet

Download (2.86MB)
