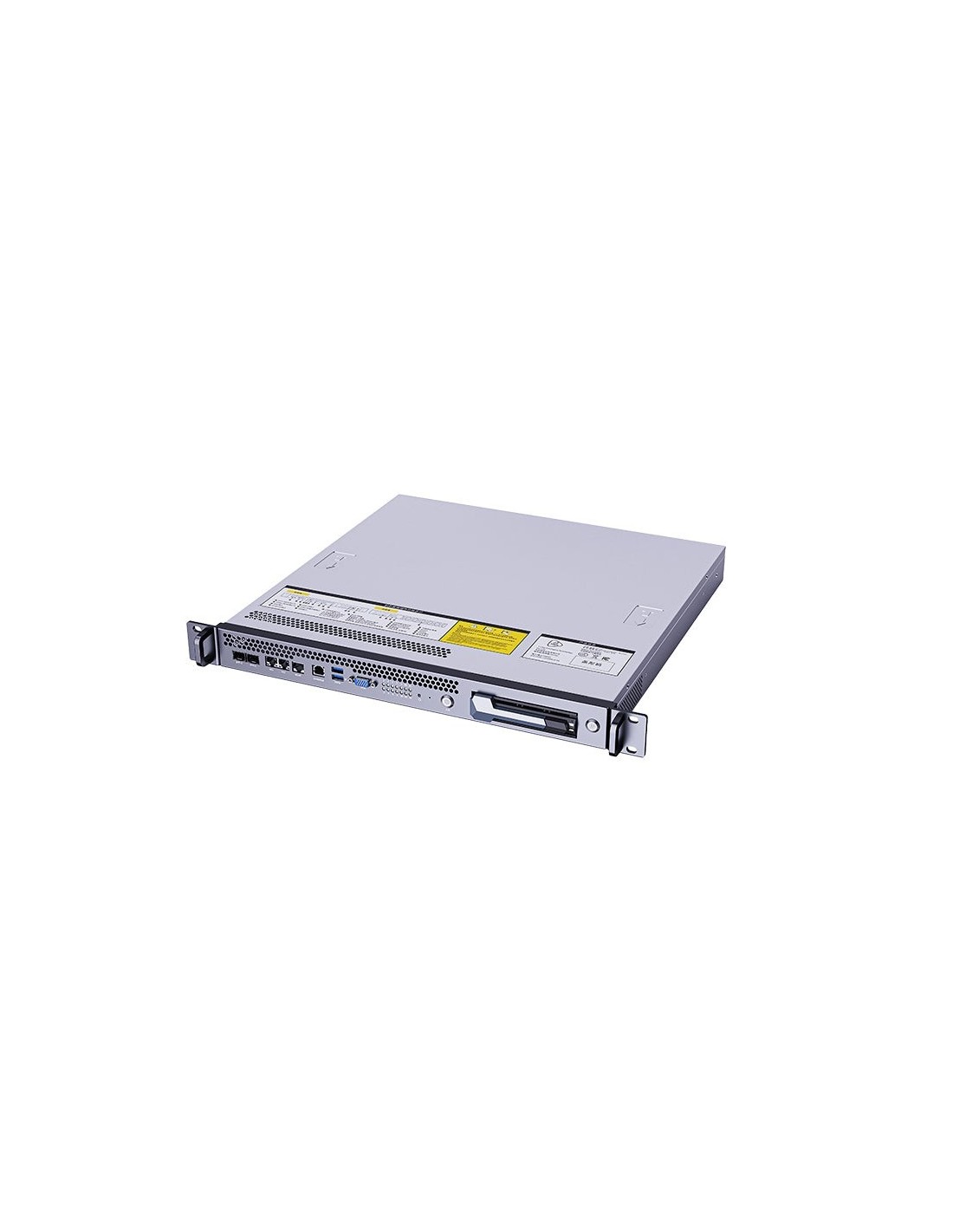

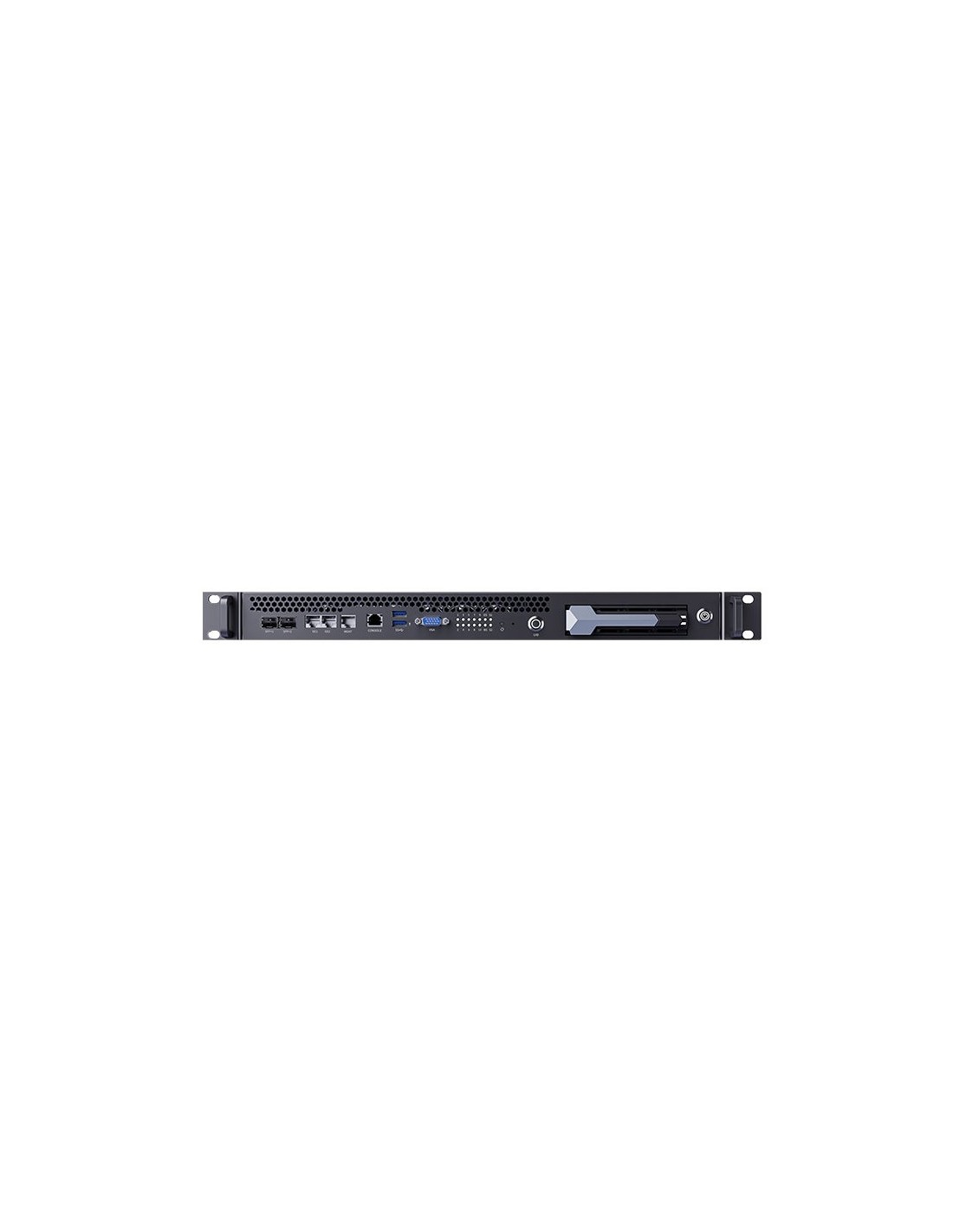

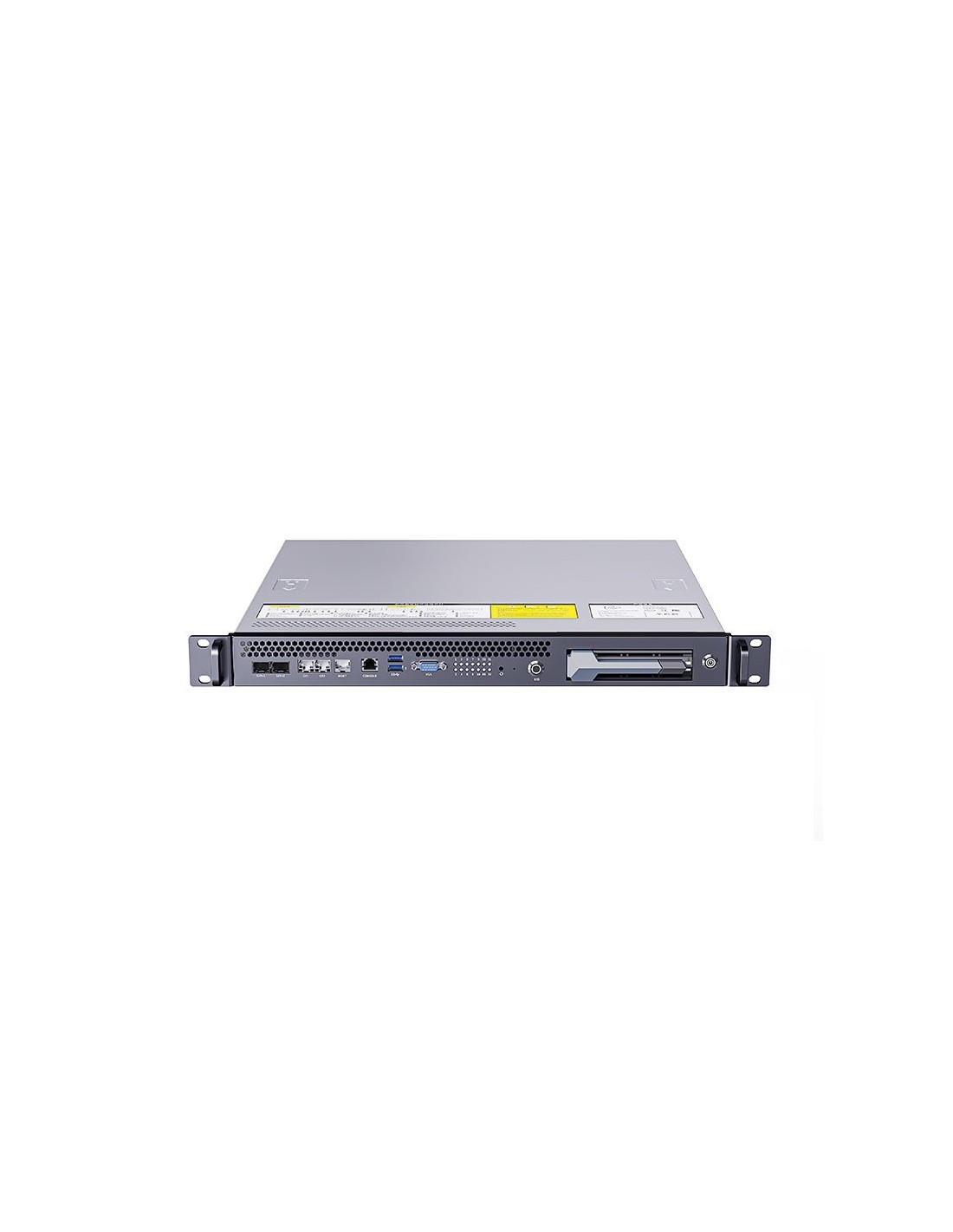

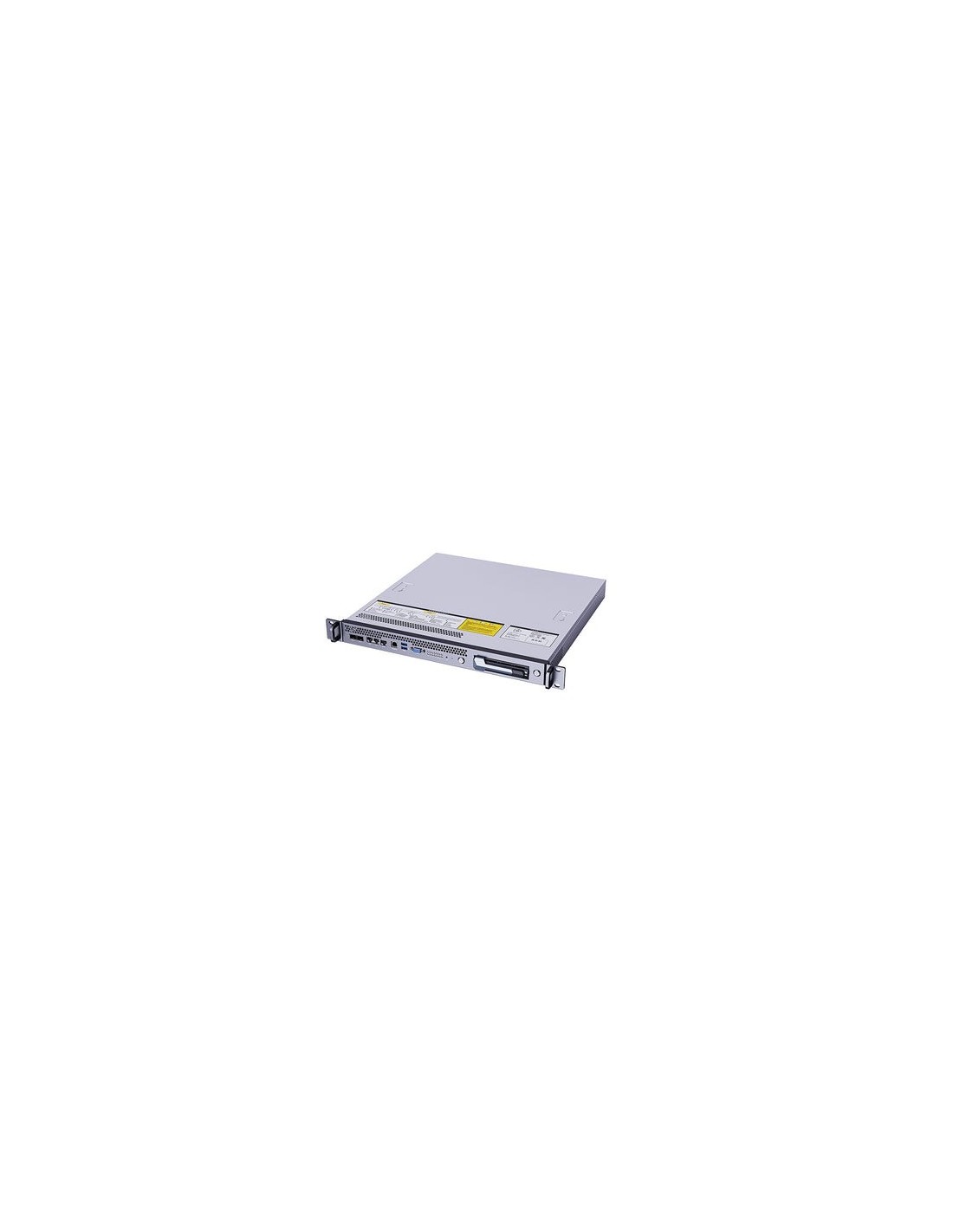

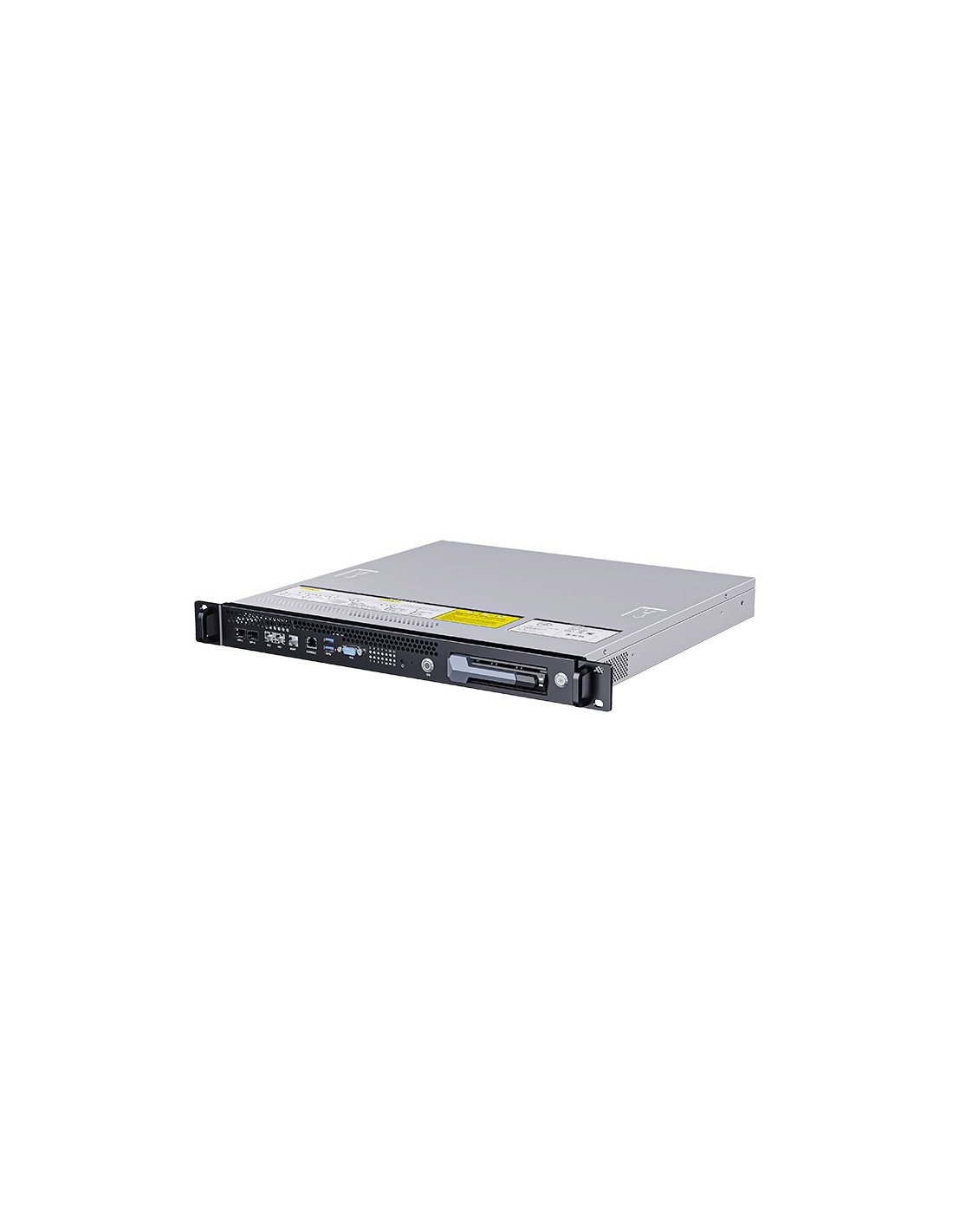

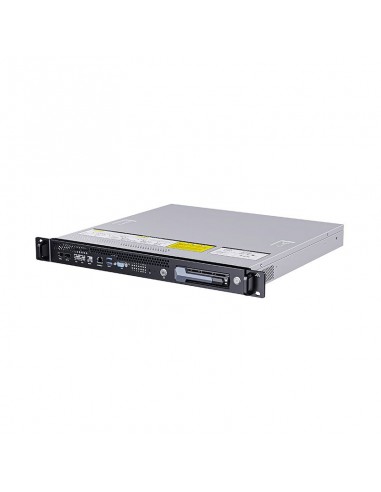

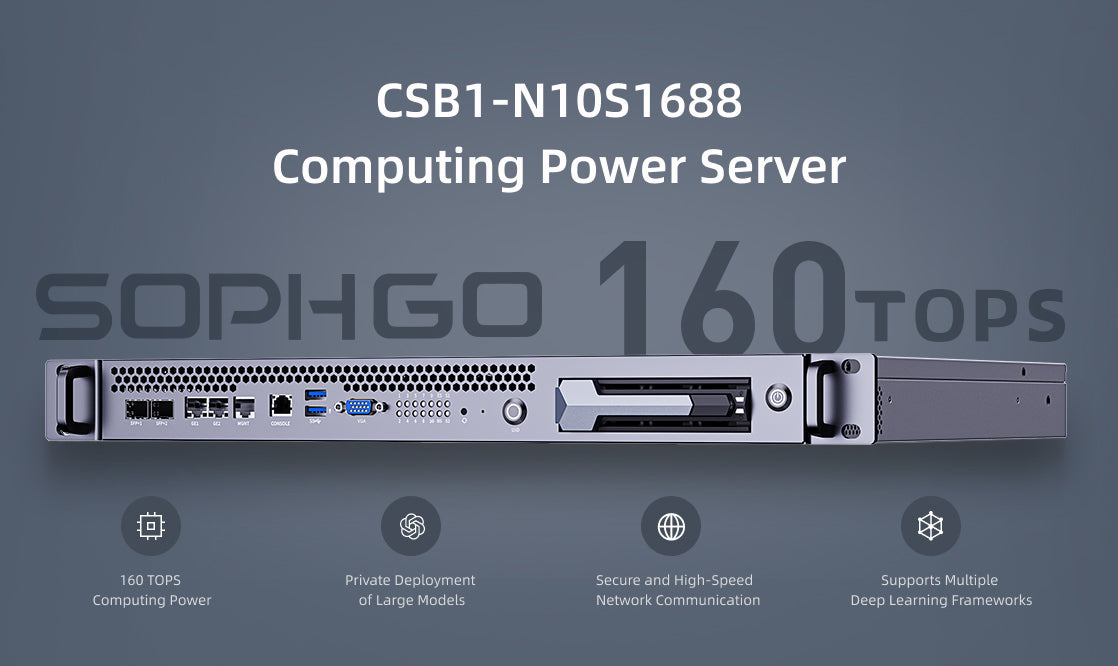

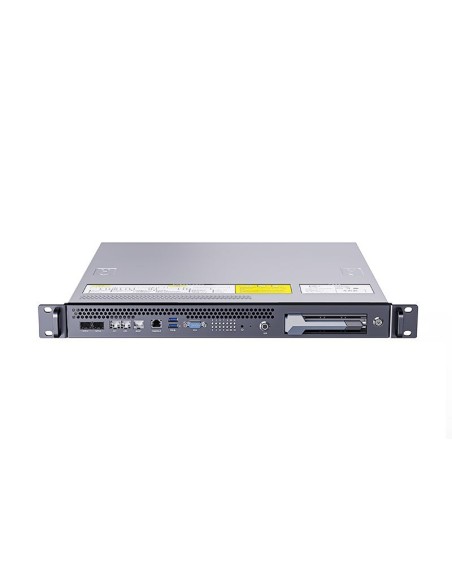

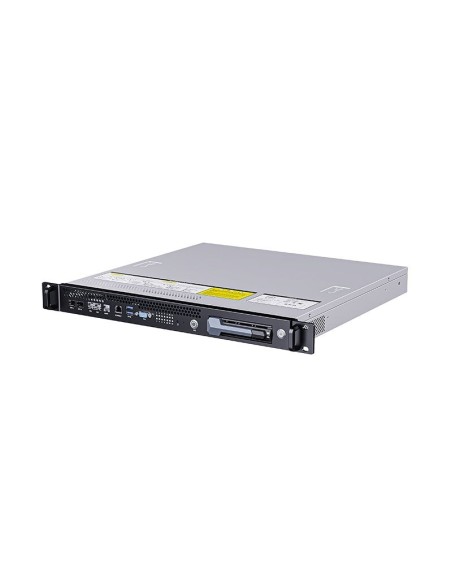

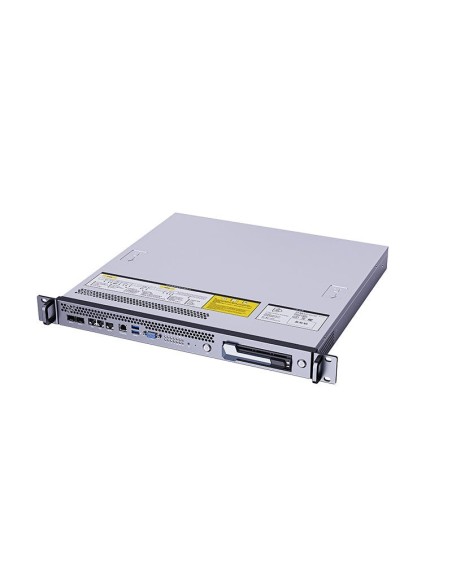

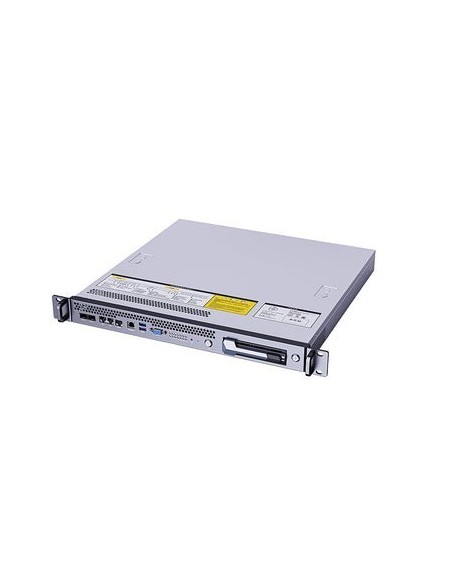

CSB1-N10S1688 Computing Power Server

Name: CSB1-N10S1688 Computing Power Server
Brand: Firefly
SKU: CSB1-N10S1688
Price: 4400 USD
Availability: InStock

Accepting Orders

US$4,400.00

The CSB1-N10S1688 Cluster Server is a high-density computing solution designed for AI, cloud computing, and large-scale data processing. It features 10 powerful nodes, each with high-performance processors, dual-Gigabit Ethernet, and PCIe expansion for GPUs or accelerators. With flexible storage, efficient cooling, and scalable architecture, it delivers exceptional performance for demanding workloads.

Memory+Storage :

Server Spec:

Ask a Quote

Description

The CSB1-N10S1688 is a compact yet powerful cluster server built for intensive computing tasks such as AI training, deep learning, cloud computing, and big data analytics.

Key Features:

10-Node Cluster Design: Each node is equipped with a high-performance processor, ensuring parallel processing power for demanding applications.
High-Speed Networking: Dual Gigabit Ethernet ports provide fast data transfer and low-latency communication between nodes.
Expandable GPU/Accelerator Support: PCIe slots allow for additional GPUs, FPGAs, or AI accelerators to boost computational performance.
Flexible Storage Options: Supports NVMe SSDs and high-capacity HDDs for fast data access and large-scale storage needs.
Optimized Thermal Design: Advanced cooling mechanisms ensure stable operation even under heavy workloads.
Scalable & Space-Efficient: The compact form factor makes it ideal for data centers, research labs, and edge computing deployments.

Ideal for:

AI & machine learning
Cloud computing & virtualization
High-performance computing (HPC)
Big data processing & analytics

With its robust architecture and high scalability, the CSB1-N10S1688 delivers exceptional efficiency for next-generation computing challenges.

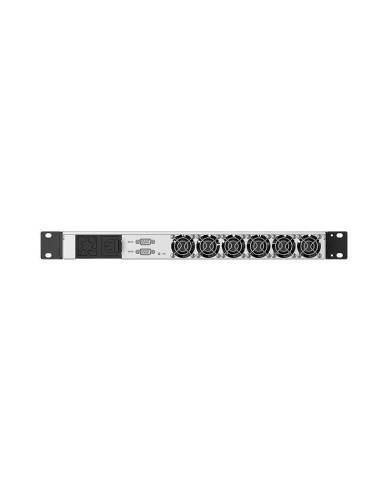

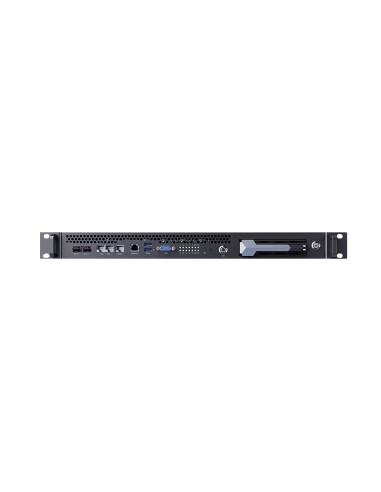

CSB1-N10S1688 Computing Power Server

CSB1-N10R3576 Computing Power Server 60T Large Model Privatization Deployment 1U BMC Ruixin Micro

Category	Specification
Server Form	1U rack-mounted computing power server
Framework	ARM architecture
Number of Nodes	10 distributed computing nodes (up to 80 ARM cores) + 1 control node
Compute Nodes	Octa-core 64-bit processor NVIDIA Jetson OrinNX, main frequency up to 2.0GHz
Control Nodes	Octa-core 64-bit processor RK3588, main frequency up to 2.4GHz, highest computing power is 6TOPS
AI Computing Power	1570 TOPS (INT8)
RAM	16GB LPDDR5 × 10 (number of compute nodes)
Storage	256GB (2242 PCIe NVMe SSD, internally assembled)
Storage Expansion	3.5-inch/2.5-inch SATA3.0/SSD hard drive slot × 1 (BMC can directly operate the hard drive, computing child nodes can indirectly access via network sharing through the BMC method)
Power	550W AC power supply (Input: 90V AC–264V AC, 47–63 Hz, 8A), hot-swappable not supported

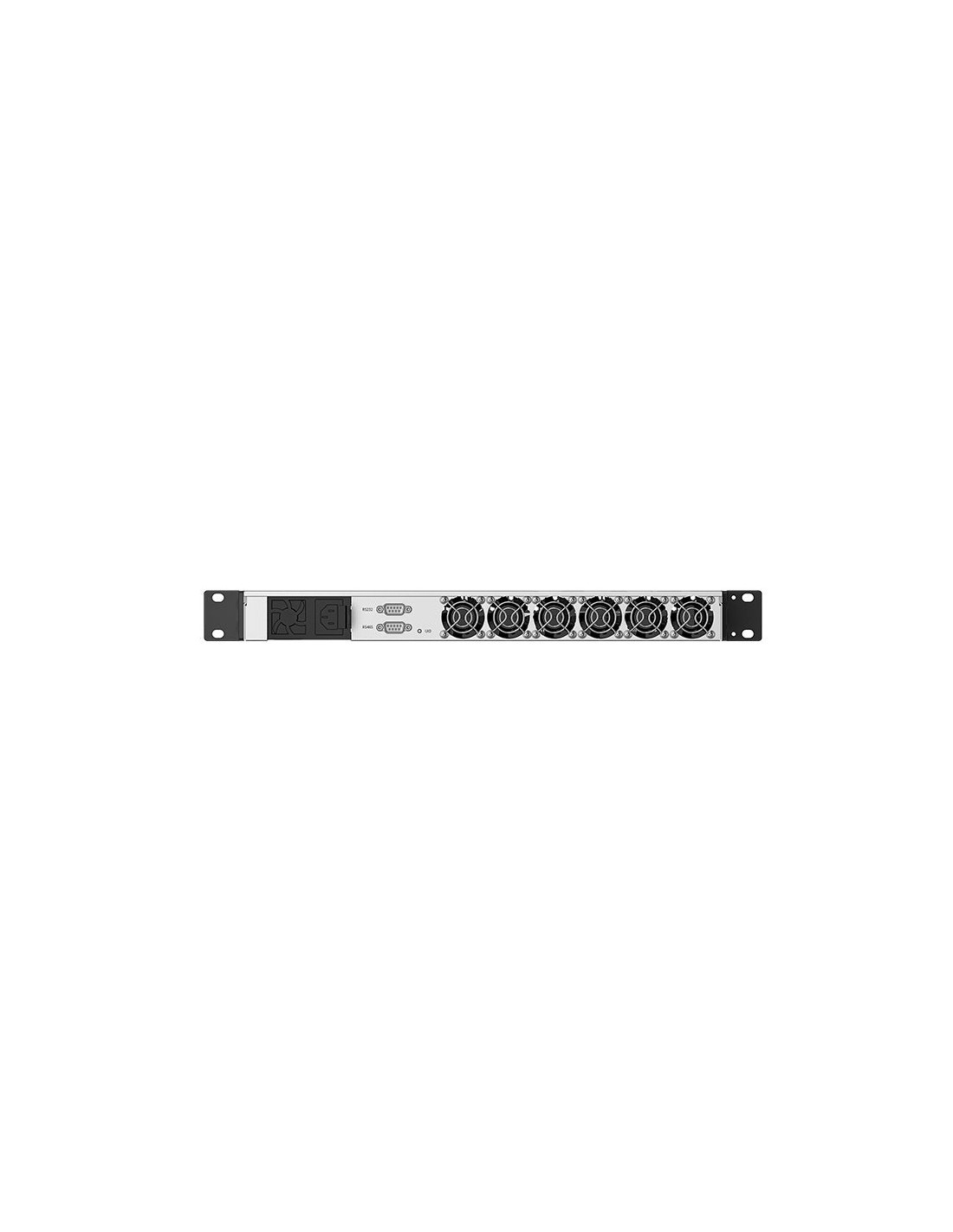

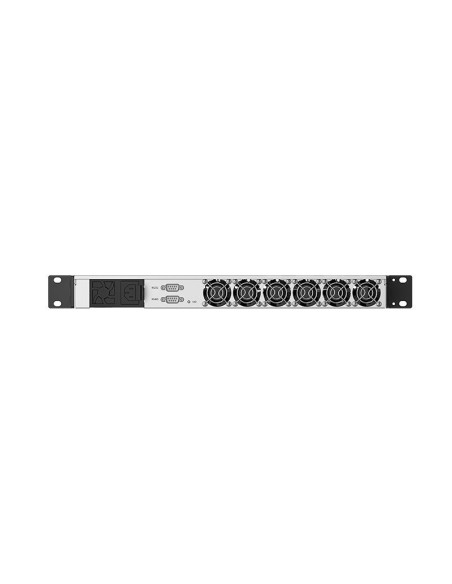

Fan Module	6 high-speed cooling fans
Size	420.0mm(L) × 421.3mm(W) × 44.4mm(H)
Installation Requirements	IEC 297 Universal Cabinet Installation: 19 inches wide, 800 mm deep and above Retractable slideway installation: front-to-rear hole distance in cabinet 543.5mm–848.5mm
Full Weight	Server net weight: 8.1kg, total weight with packaging: 10.3kg
Environment	Operating Temperature: 0℃ ~ 45℃ Storage Temperature: -40℃ ~ 60℃ Operating Humidity: 5%–90% RH (non-condensing)

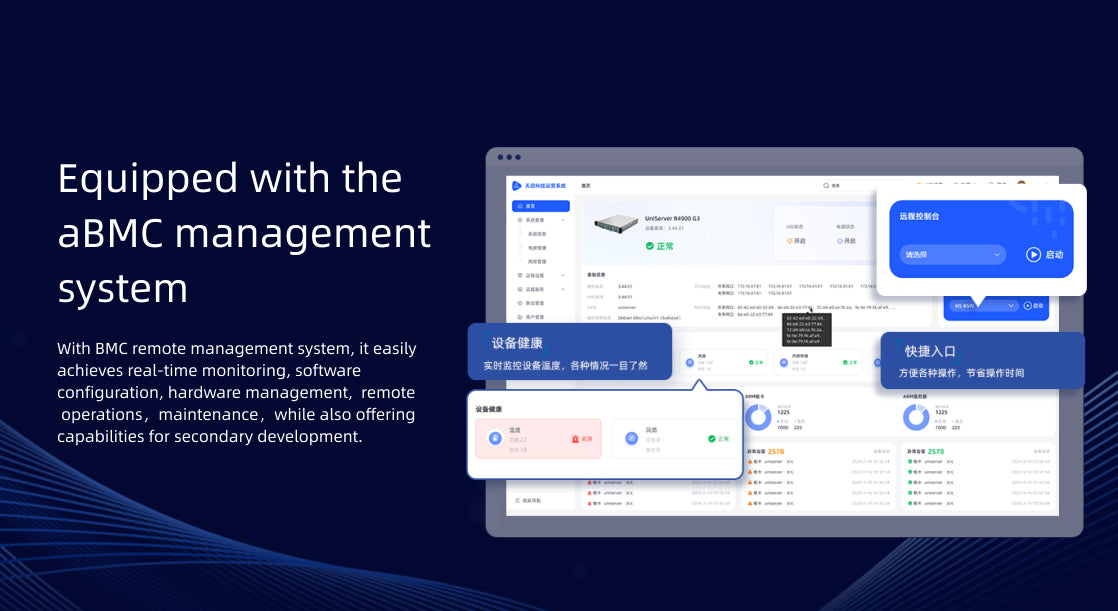

BMC	Integrated web-based management interface with support for Redfish, VNC, NTP, advanced monitoring, and virtual media; BMC can be redeveloped
Large Model Support	Supports ROS robot model; Ollama local large model deployment; private deployment of ultra-large language models under Transformer architecture (e.g., LLaMa3, Phi-3 Mini); supports large visual models such as EfficientViT, NanoOWL, NanoSAM, SAM, TAM; supports ComfyUI for restoration, style transfer, synthesis; supports Flux, Stable Diffusion, Stable Diffusion XL for AIGC image generation
Deep Learning	Supports multiple frameworks accelerated by cuDNN: PaddlePaddle, PyTorch, TensorFlow, MATLAB, MxNet, Caffe2, Chainer, Keras; supports custom operator development Docker containerization technology supported for easy deployment
AI Software Stack	NVIDIA Jetson Orin series platform with unified memory and comprehensive software stack for latest generative AI applications; supports Transformer models with superior MLPerf performance

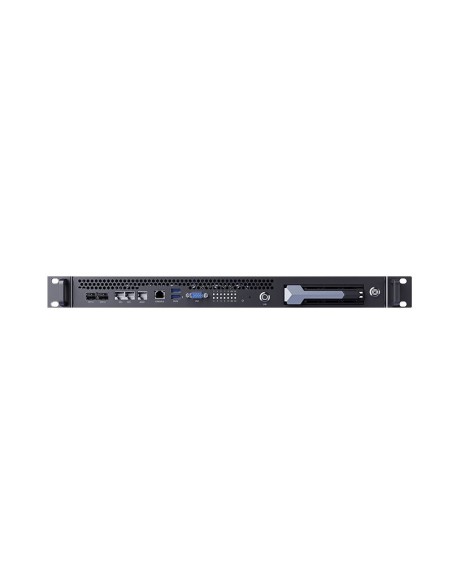

Internet	2 × 10G Ethernet (SFP+), 2 × Gigabit Ethernet (RJ45), 1 × Gigabit Ethernet (RJ45, MGNT for BMC network)
Console	1 × Console (RJ45, BMC debug serial port, baud rate 115200)
Display	1 × VGA (maximum resolution 1080p, BMC management display)
USB	2 × USB 3.0 (lower USB is USB 3.0 OTG; BMC can be upgraded using USB flash drive)
Button	1 × Reset, 1 × UID, 1 × Power button
Other Interfaces	1 × RS232 (DB9, 115200 baud), 1 × RS485 (DB9, 115200 baud)

Product Details

Reference CSB1-N10S1688

MPN CSB1-N10R3588

Attachments

CSB1-N10 Datasheet

Download (2.86MB)
