| Category | Specification |
|---|---|
| Basic Specifications | |

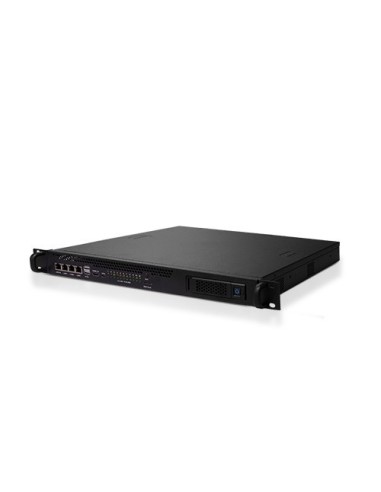

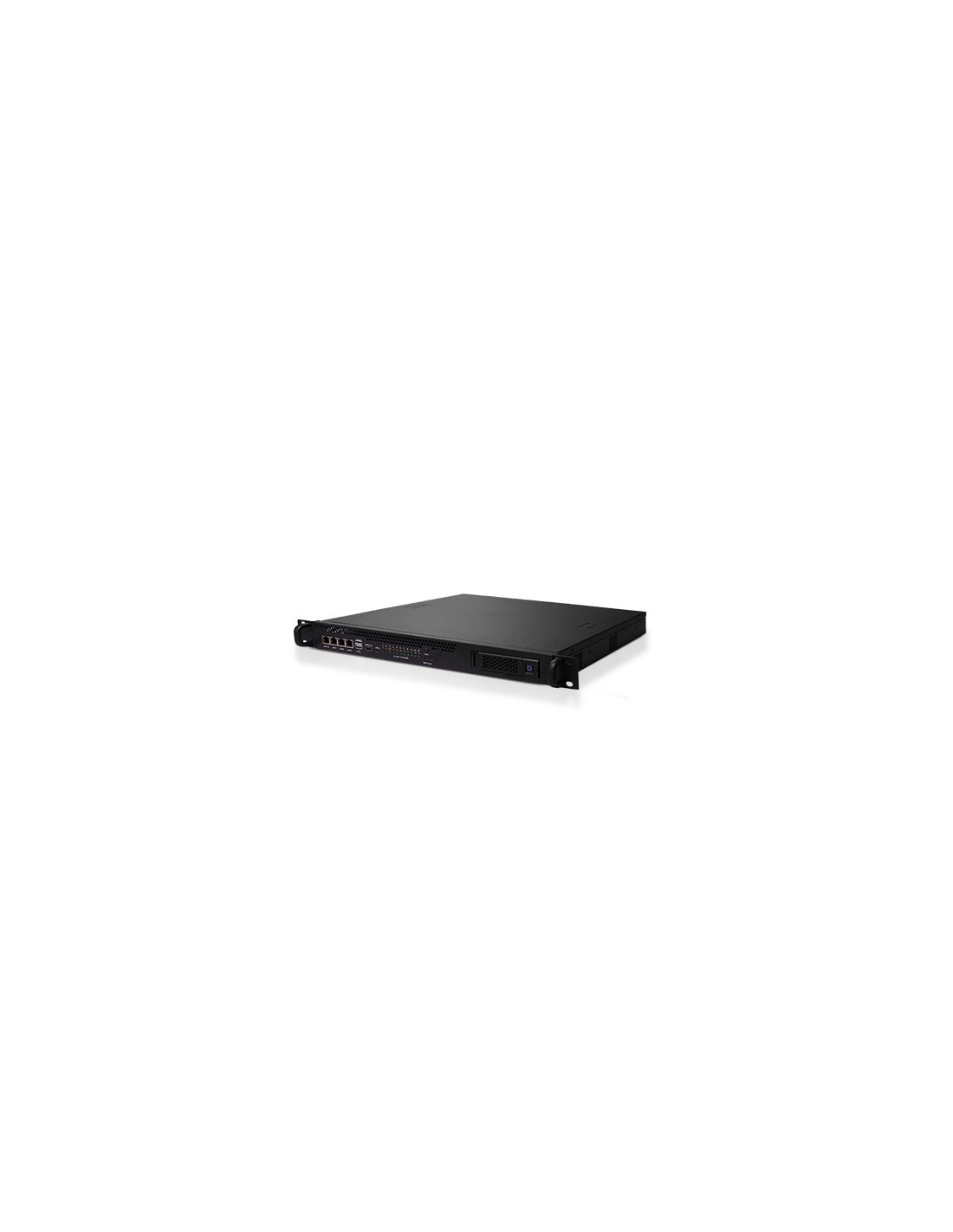

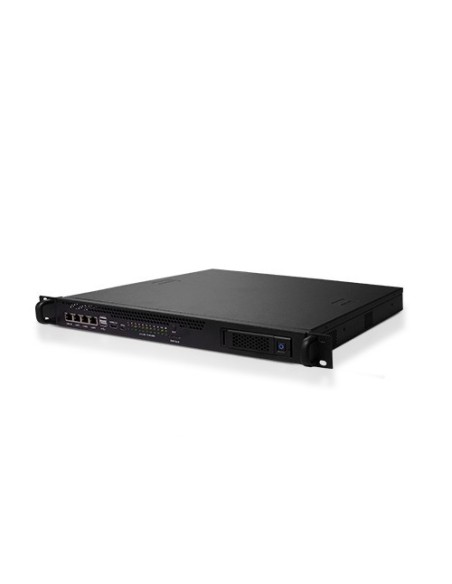

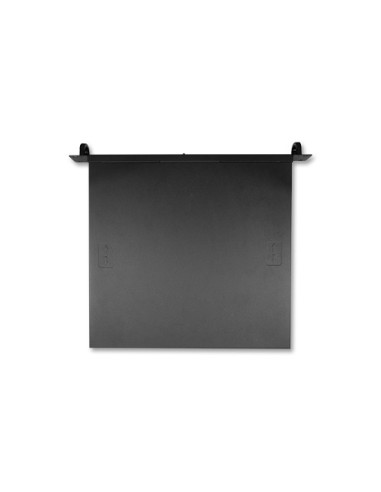

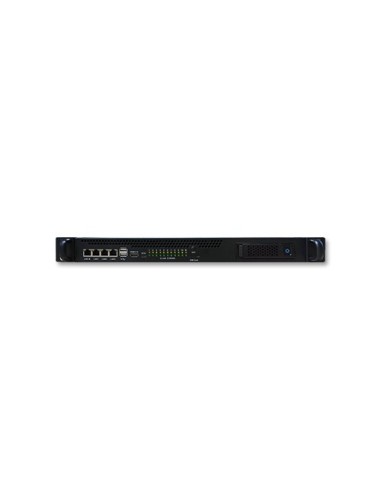

| Name | 1U cloud phone server based on RK3588S |
| Model | CSR1-N10R3588S |
| Architecture | ARM architecture |
| OS | Supports Android, Ubuntu, and Linux |
| Application Scenario | Cloud phone, virtual desktop, edge computing, cloud gaming, cloud storage, blockchain, multi-channel video encoding and decoding, etc. |
| Compute Module | |
| Modules | 11 compute modules |
| Total Cores | 11 compute modules (A total of 86 ARM cores) |
| Core Board | RK3588S core board (Core-3588S JD4): 8-core 64-bit processor (4×Cortex-A76 + 4×Cortex-A55), up to 2.4GHz, NPU up to 6.0 TopsRK3399 (AI) core board (Core-3399-JD4): 6-core 64-bit processor (A72×2 + A53×4), up to 1.8GHz, for BMC management |
| RAM | 16GB LPDDR4 (each core board Core-3588S JD4) |
| Storage | 128GB eMMC internal memory (each core board Core-3588S JD4)3.5” hard drive can be configured with one SATA/SSD (supports hot swapping) |
| BMC Module | |
| BMC | Integrated BMC management system provides web-based management interface; supports secondary development |

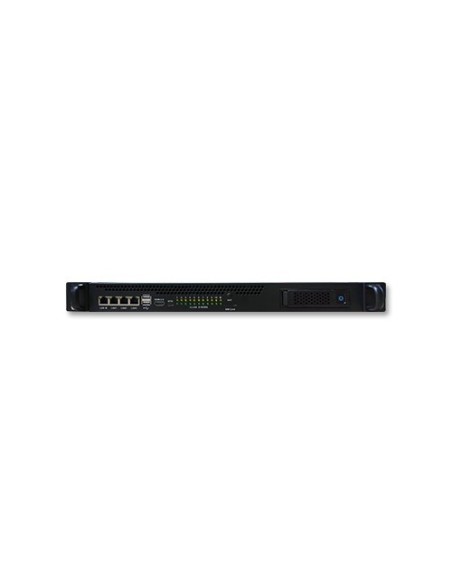

| Network | 1GE RJ45 network ports ×4 (one main core board network port and three ordinary network ports)4G/LTE/5G network (optional) |
| Display | HDMI 2.0, up to 4K@60Hz (main processor core board display) |
| USB | USB2.0 HOST ×2Type-C ×1 (for processor core board debugging) |
| Indicator Light | 11 network status indicator lights (Yellow)11 working status indicator lights (Green) |
| Fan Module | |

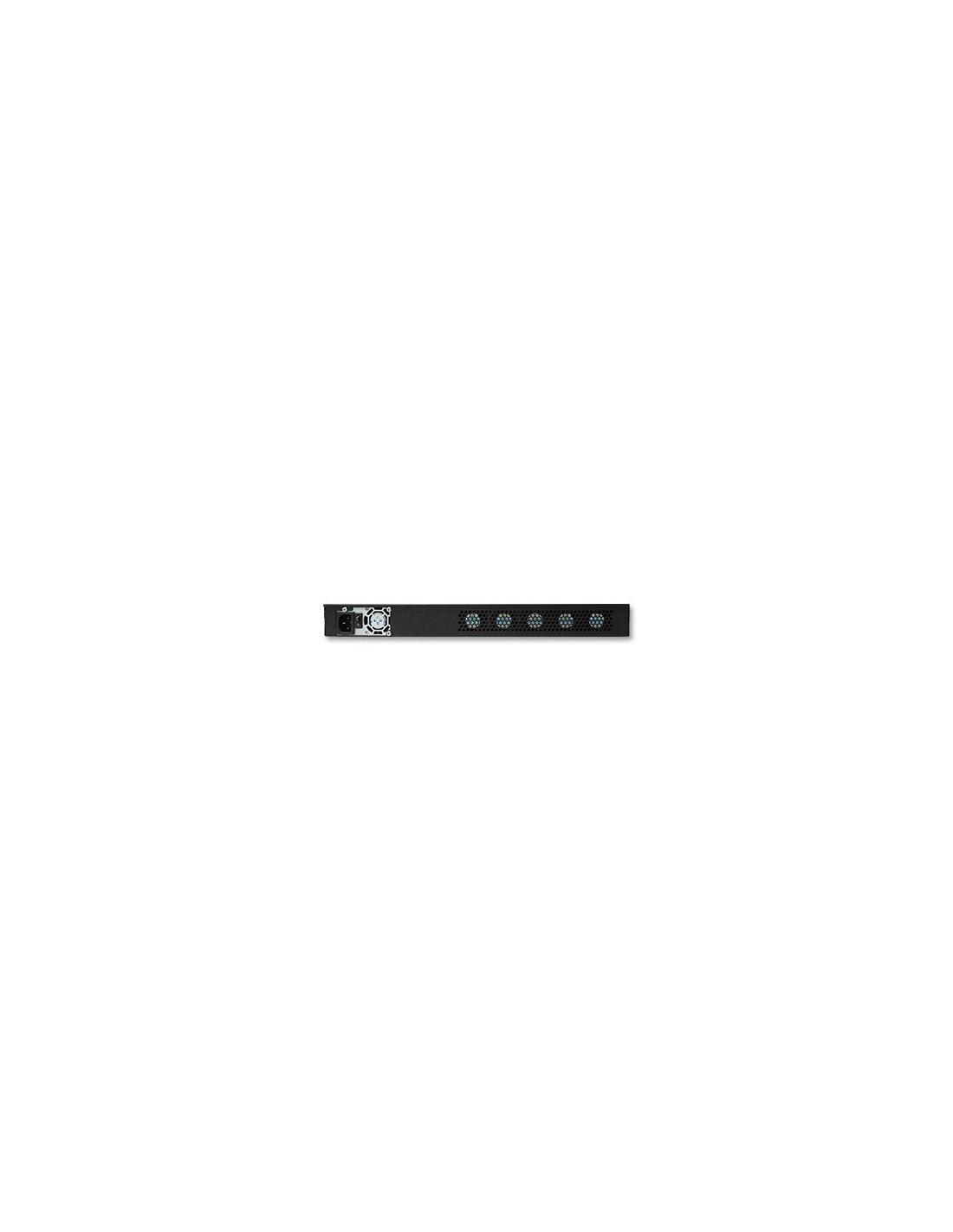

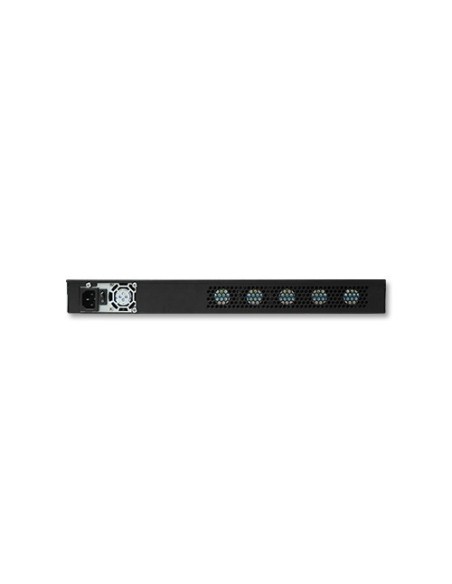

| Fan | 5 high-speed cooling fans |
| Power Module | |
| Power | 300W AC power (input: 100V AC ~ 240V AC) |
| Appearance & Environment | |

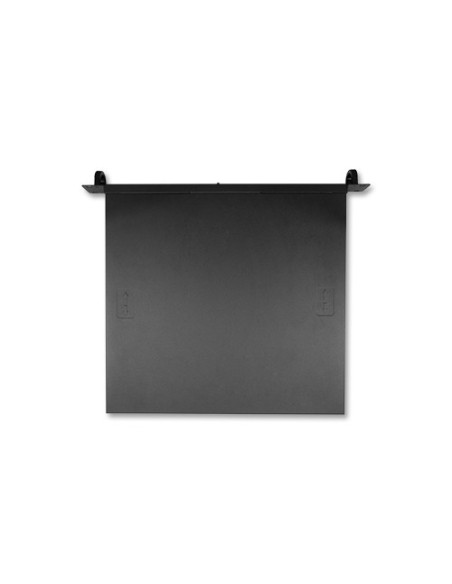

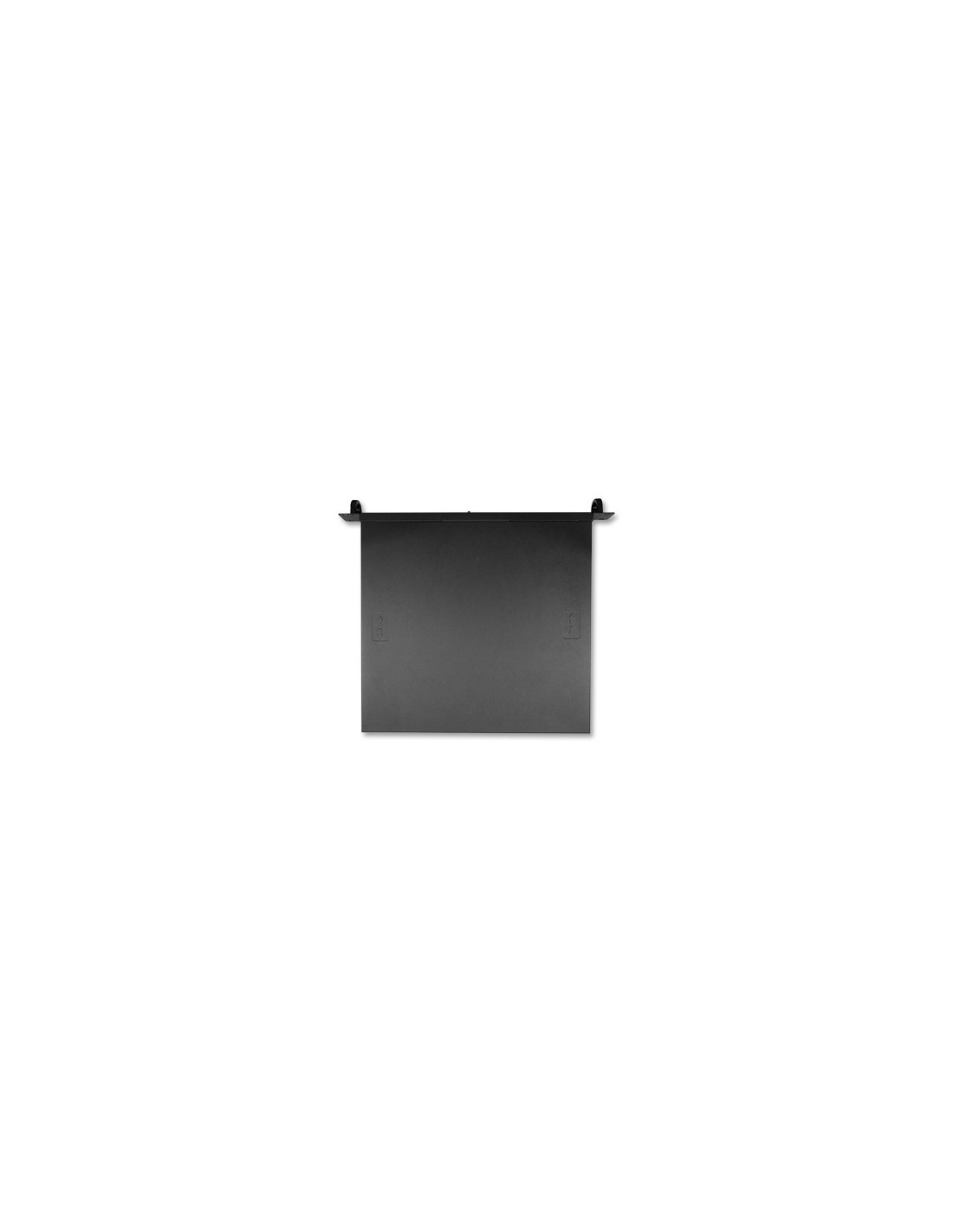

| Dimensions | Standard 1U rack-mounted server: 490mm x 390mm x 44.4mm |
| Operating Temperature | 0°C – 50°C |
| Operating Humidity | 8% RH – 95% RH |
