Accepting Orders
US$31,048.65

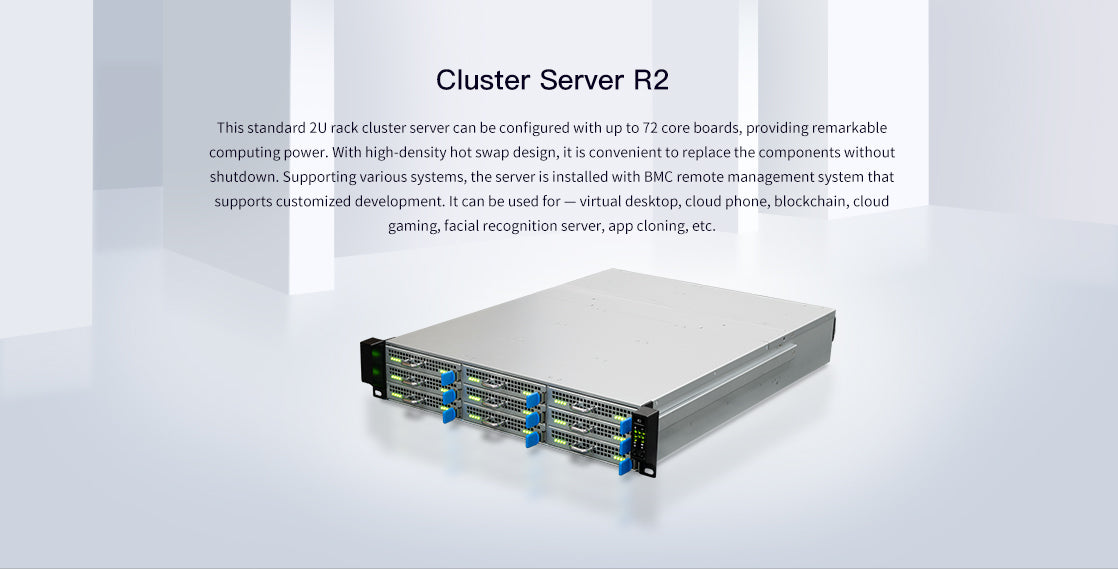

The server can be configured with up to 72 RK3588S computing units and virtualizes 720 mobile phones. Operating multiple instances of a game or an application at once and running various operating system are supported. BMC remote management system that supports secondary development is installed. The server can be applied to virtual desktop, cloud phone, blockchain, cloud gaming, facial recognition server, etc.

Storage Size:

Description

Empower your business with the CSR2-N72R3588S, engineered to deliver exceptional flexibility and scalability. Harness the power of up to 72 RK3588S computing units, capable of virtualizing up to 720 mobile phones — all in one compact solution.

Seamlessly run multiple games and applications with robust support for diverse operating systems. The integrated BMC visual management system ensures intuitive control and monitoring, while built-in support for secondary development provides ultimate adaptability for your evolving needs.

Perfectly suited for virtual desktops, cloud phones, blockchain platforms, cloud gaming, facial recognition servers, and beyond, the CSR2-N72R3588S is your go-to platform for next-generation computing and virtualization.

CSR2-N72R3588S Cluster Server R2

CSR2-N72R3588S Cluster Server R2

CSR2-N72R3588S Cluster Server R2

CSR2-N72R3588S Cluster Server R2

CSR2-N72R3588S Cluster Server R2

CSR2-N72R3588S Cluster Server R2

CSR2-N72R3588S Cluster Server R2

CSR2-N72R3588S Cluster Server R2

CSR2-N72R3588S Cluster Server R2

Category Specification
Basic Specifications
Name Cluster Server R2

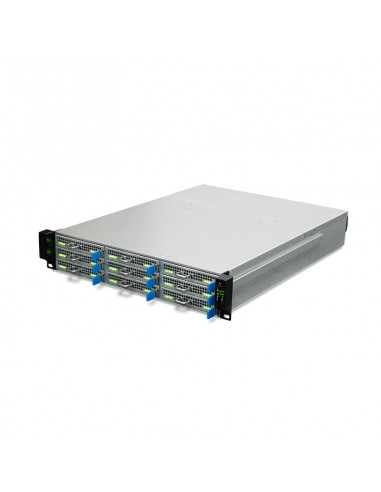

Model 2U rack cluster server
Architecture ARM architecture
OS Supports Android, Ubuntu, Linux
Application Scenario Cloud phone, virtual desktop, edge computing, cloud gaming, cloud storage, blockchain, multi-channel video decoding, app cloning, etc.
Node Specifications

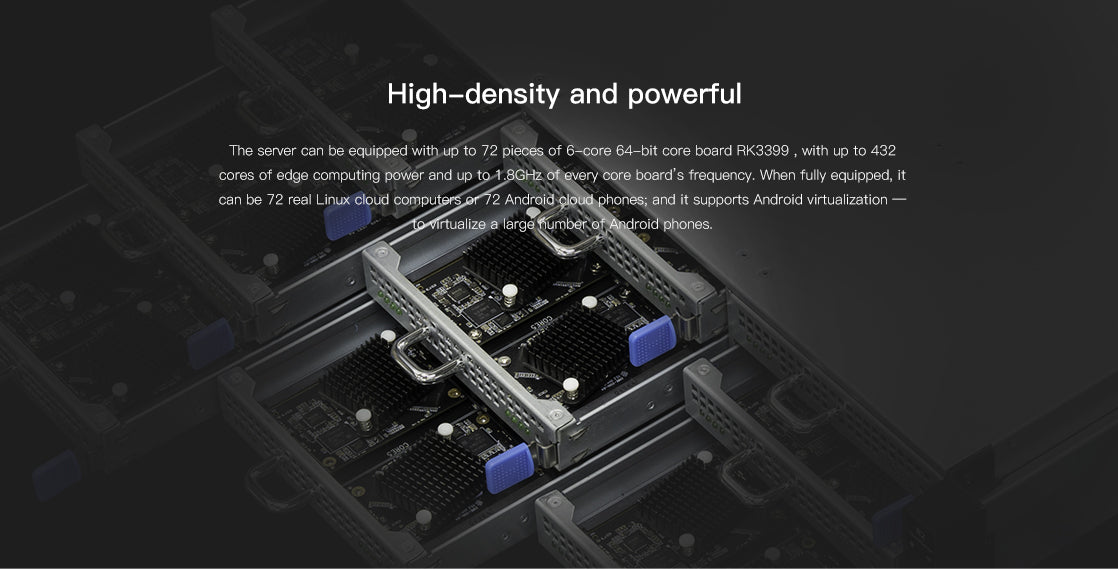

Node 9 blade nodes
Each blade node can be configured with 8 core boards
Blade node 9 can be installed with two 3.5” SATA/SSD hard disks (supports hot swap)
Number Up to 72 pcs of core boards (432 pcs of ARM cores in total)

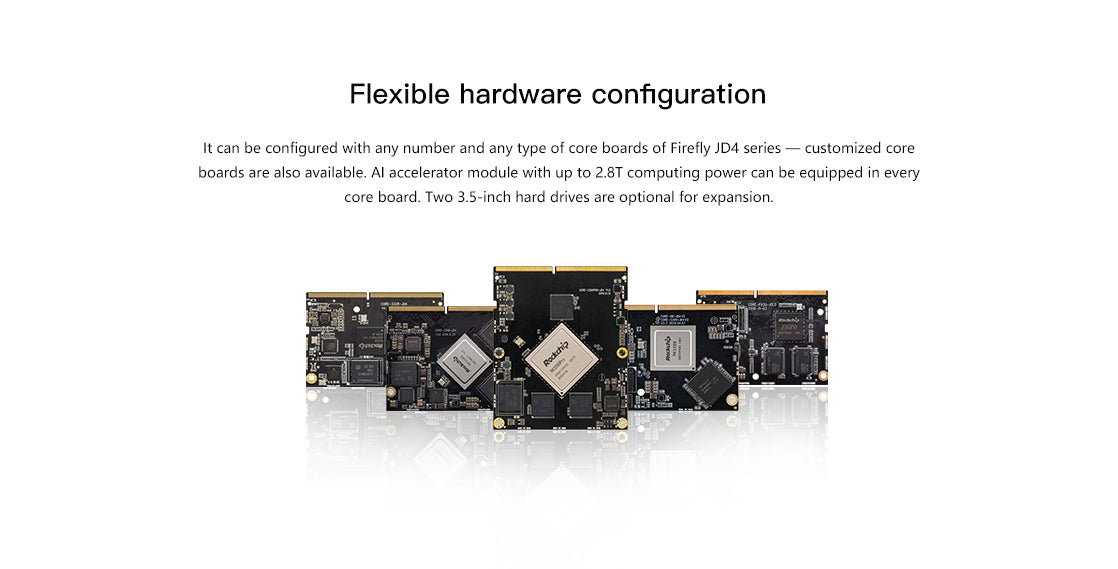

Core Board - RK3399 (AI) core board (Core-3399-JD4): 6-core 64-bit processor up to 1.8GHz, NPU up to 2.8 Tops (optional)
- RK3328 core board (Core-3328-JD4): Quad-core 64-bit A53 processor up to 1.5GHz, supports 4K/1080P H.265/H.264 video coding & decoding
- RK1808 (AI) core board (Core-1808-JD4): Dual-core 64-bit A35 processor up to 1.6GHz, integrated NPU up to 3.0 Tops
RAM Supports 4GB DDR3 / DDR4 / LPDDR4 RAM (each core board can be optionally equipped with 1GB / 2GB / 4GB)
Storage Supports 32GB eMMC internal memory (each core board, optional 8GB/16GB/32GB/64GB/128GB)
3.5” SATA/SSD ×2 (Blade node 9, supports hot swap)
SD card slot ×1
BMC Module
BMC Integrated BMC management system, web-based interface, supports customized development
Network - Connects to broadband of two operators
- Supports network isolation, link aggregation, load balancing, flow control
- Dual network controller redundancy (realizes network isolation)

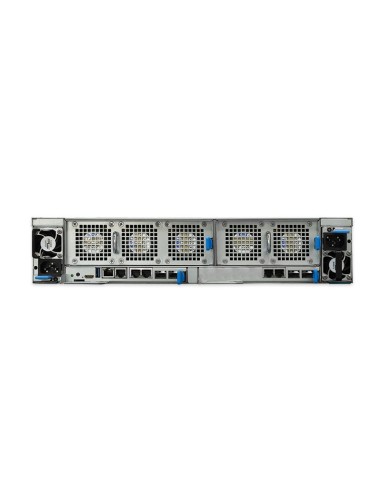

- Each controller: 1000Mb Ethernet port (RJ45) ×2, 10Gb Ethernet port (SFP+) ×2, BMC port ×1, console debug port ×1
Display 1 × Mini HDMI 2.0, 4K@60Hz (master board)
USB 1 × USB3.0 HOST
Indicator Light - Master board working indicator: 1 pc
- Core board indicators on each blade: 8 pcs (1 per core board)
- Side handle indicators: Fan 1, Fan 2, Switch module 1, Switch module 2, UID, BMC, Power 1, Power 2
Button Reset ×1, UID ×1
Fan Module

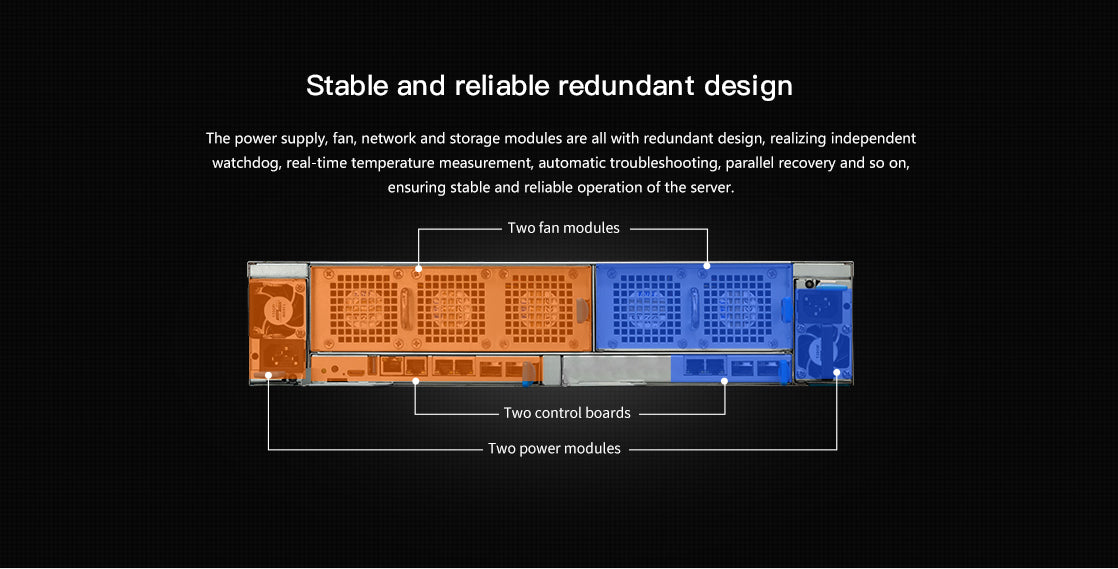

Fan Two groups of fan modules:
Fan module 1 (3×2 redundancy)
Fan module 2 (2×2 redundancy)
Power Module
Power Dual-channel redundant power design, AC 100–240V 50/60Hz, 1300W / 800W optional
Appearance & Environment

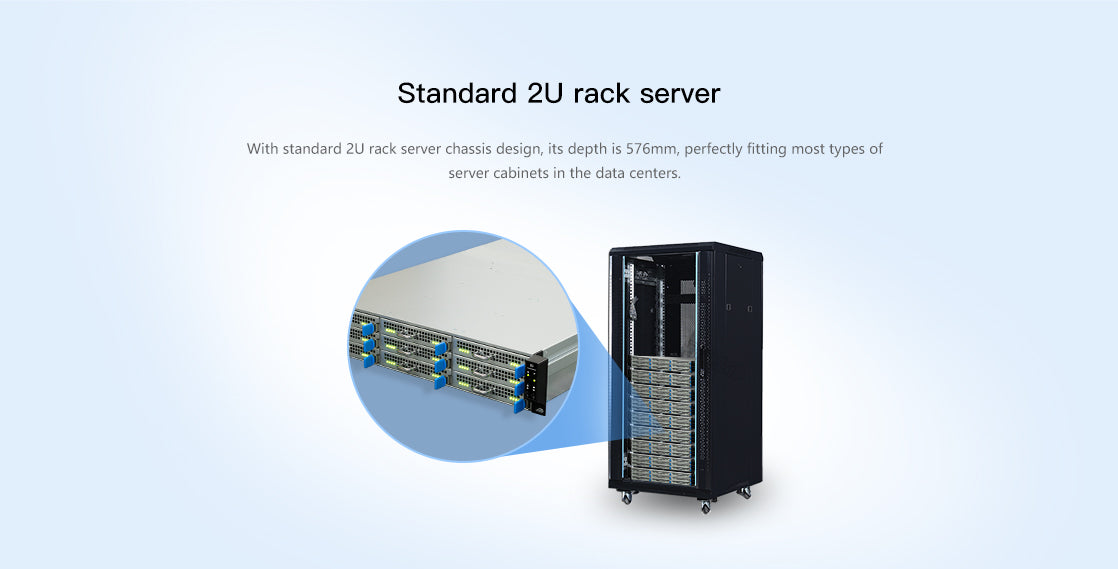

Size Standard 2U rack chassis: 580mm × 434mm × 88.8mm
Operating Temperature 0°C – 35°C
Operating Humidity 8% RH – 95% RH
