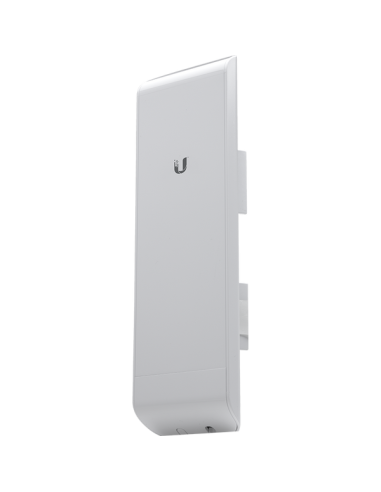

NanoStation M2 2.4-GHz 11-dBi Antenna - International Model

Featuring a compact indoor/outdoor design and an interface, it is so intuitive even the most technically challenged can instantly become experts. But don't be fooled--it is as powerful as it is simple. NanoStation packs some phenomenal performance with a revolutionary design combining a high-gain antenna system, advanced radio architecture and highly researched and developed firmware technology allowing throughput, stability and capacity performance rivaling even the highest-end Wi-Max networksThe NanoStation M2 makes a perfect CPE device when paired with the Ubiquiti Rocket M2 and airMAX Sector or a Dish Antenna. We also recommend to upgrade your AirOS software to the latest version. This device can also be used for short LOS PtP links by placing one unit in Access Point WDS Mode and the other unit into Station WDS.

Benefits

• Great Performance: 150+ Mbps real outdoor throughput and up to 15km+ range. Typical range is 2-4 miles from a LOS tower running airMAX sector antenna's and Rocket M2's.
• Next-Gen Antenna Design: 11dBi dual-polarity gain with optimized cross-polarity isolation in a compact form-factor.
• Dual Ethernet Connectivity: A secondary Ethernet port with software enabled POE output for seamless IP Video integration.
• Intelligent POE: Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location.
• 802.3af 48V Compliant - Easily becomes 802.3af 48V compliant through use of Ubiquiti Instant 802.3af adapter. The adapter sold separately (SKU#I8023AF-OD or I8023AF-ID)
• Easy Installation - Easily mountable to a pole/mast with mounting straps provided. In addition, the NanoStation M2 can be mounted and adjusted in any direction in a 90 degree angle through the use the NanoBracket. The NanoBracket is sold separately

Create wide area network connectivity with the NSM2 NanoStationM 400 MHz Indoor/Outdoor airMAX CPE Router from Ubiquiti. This wireless access point features an enhanced 400 MHz Atheros processor along with 32MB of SDRAM and 8MB of flash memory. The single 10/100 BASE-TX Ethernet networking interface features passive Power over Ethernet compatibility and can easily be installed in a variety of locations using the included pole mounting kit. The enclosure of the NSM2 is comprised of outdoor UV stabilized plastic for enhanced durability including the ability to withstand temperatures ranging from -22° F to 167°F.

Tech specs

• Processor Specs: Atheros MIPS 24KC, 400MHz
• Frequency: 2.4Ghz Channels 1-11 (Channels 12-14 available in INTL version, contact sales@balticnetworks.com for ordering information)
• Wireless: 2Ghz Atheros, 27dBm Adjustable down to 8dBm.,AES Encryption
• Memory Information: 32MB SDRAM, 8MB Flash

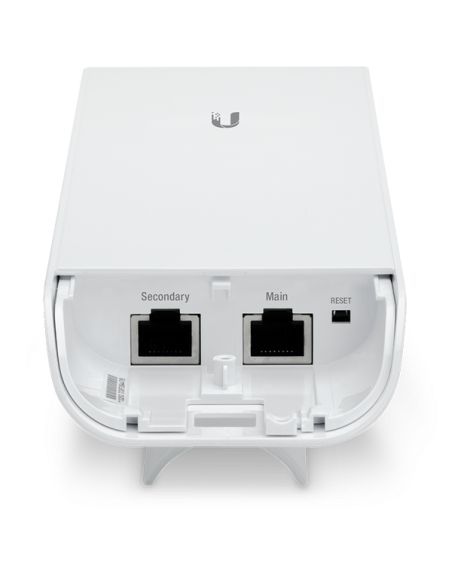

• Networking Interface: 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface, PoE Passthrough
• Mount and mounting strap (NanoBracket is optional, sold separately)
• Operating Temperature: -30°C to +80°C (-22° F to 167°F)
• Power Method: Passive PoE
• Power Consumption: 8 Watts
• Power supply included: Power Injector 110-240VAC 24VDC .5A US-style plug
• Size: 29.4 cm x 8 cm x 3cm, Weight: .4kg
• Approvals: FCC Part 15.247, IC RS210, CE

Box Contents

• 1 x NanoStation 2.4GHz
• 1 x Power Injector (110-240VAC 24VDC 0.5A US-style plug)
• 1 x Mount
• 1 x Mounting Strap
