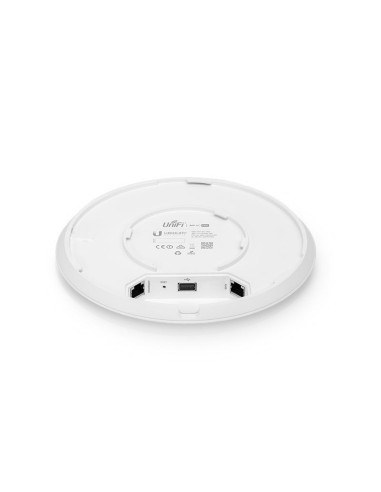

UniFi Wi-Fi 5 Access Point

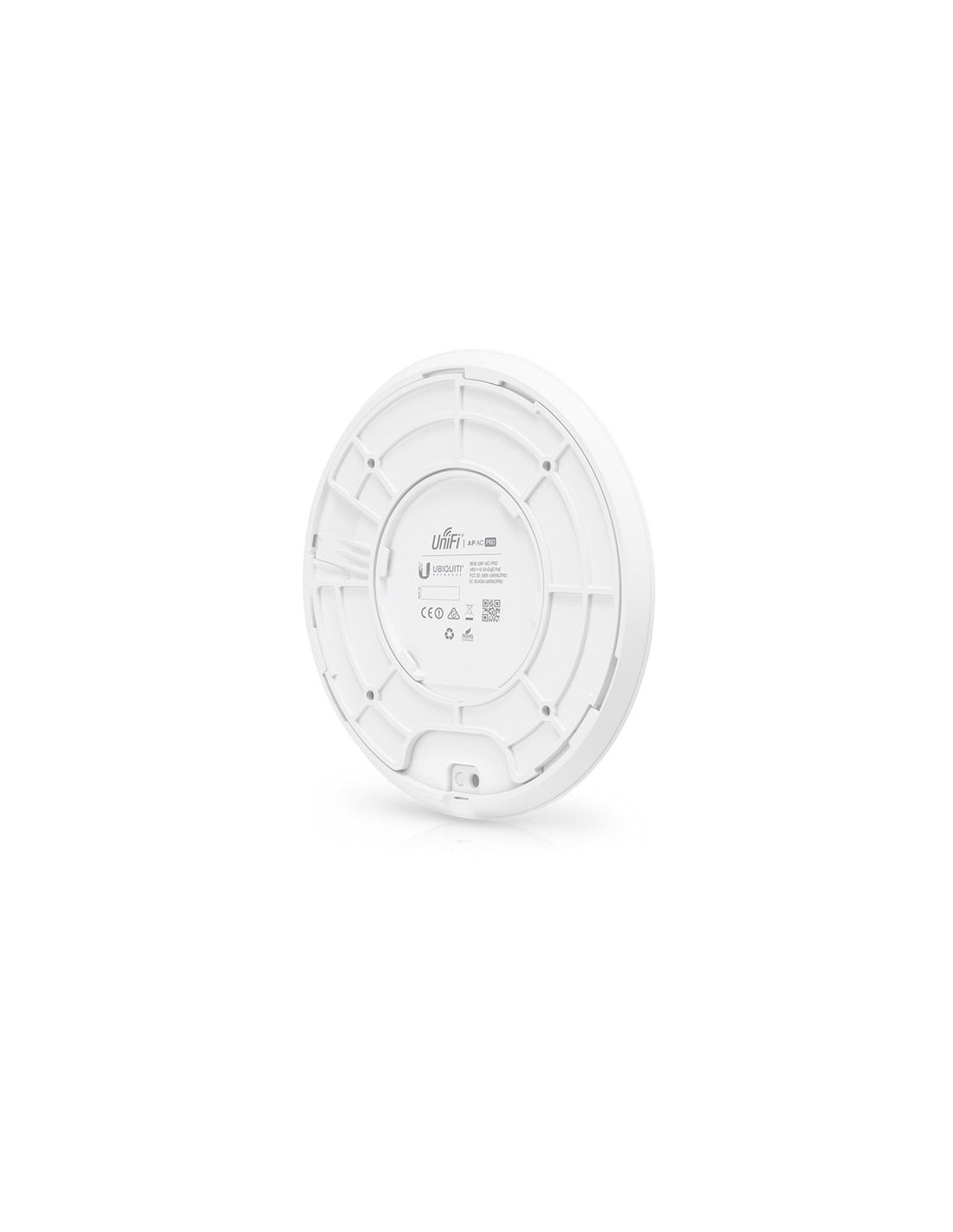

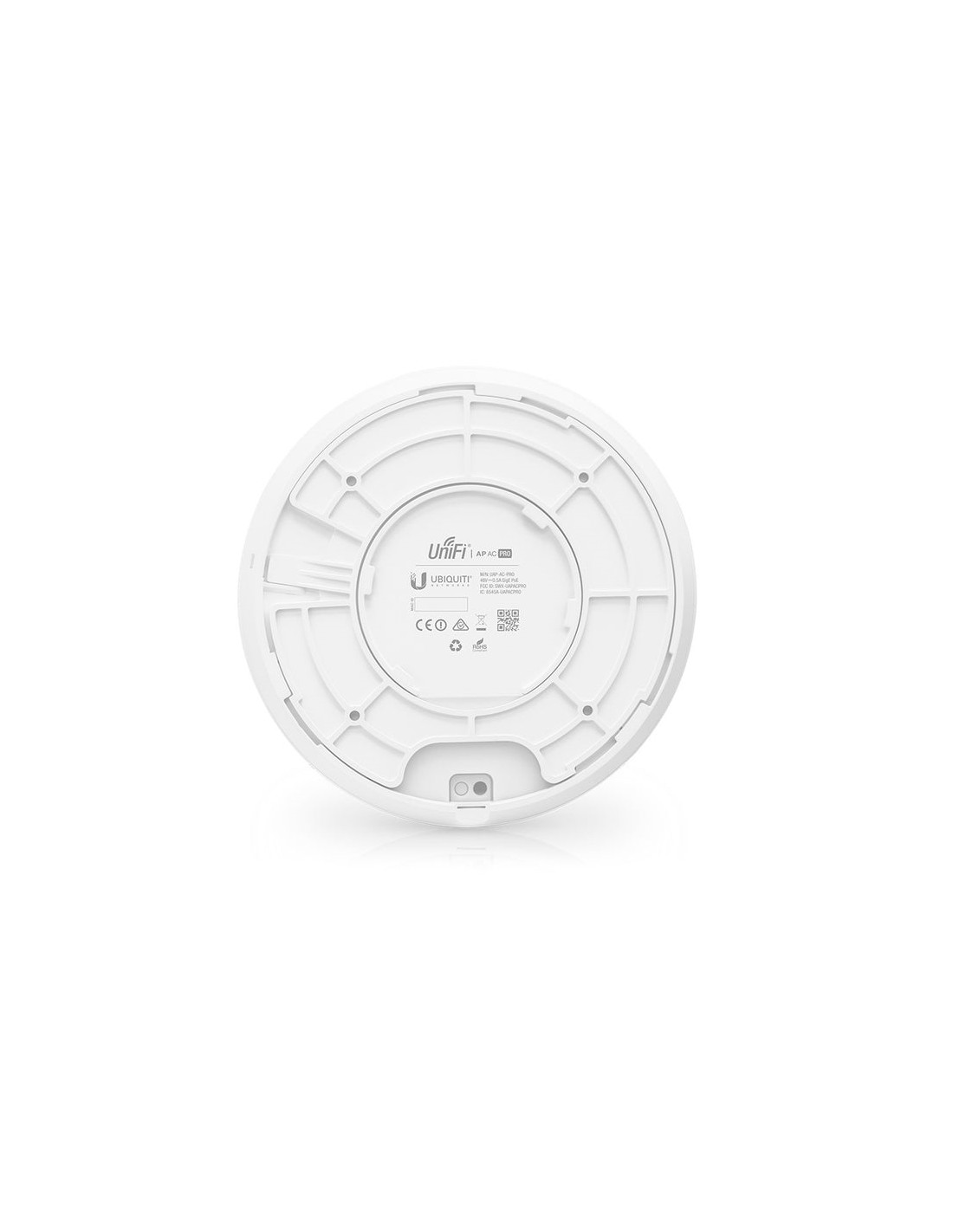

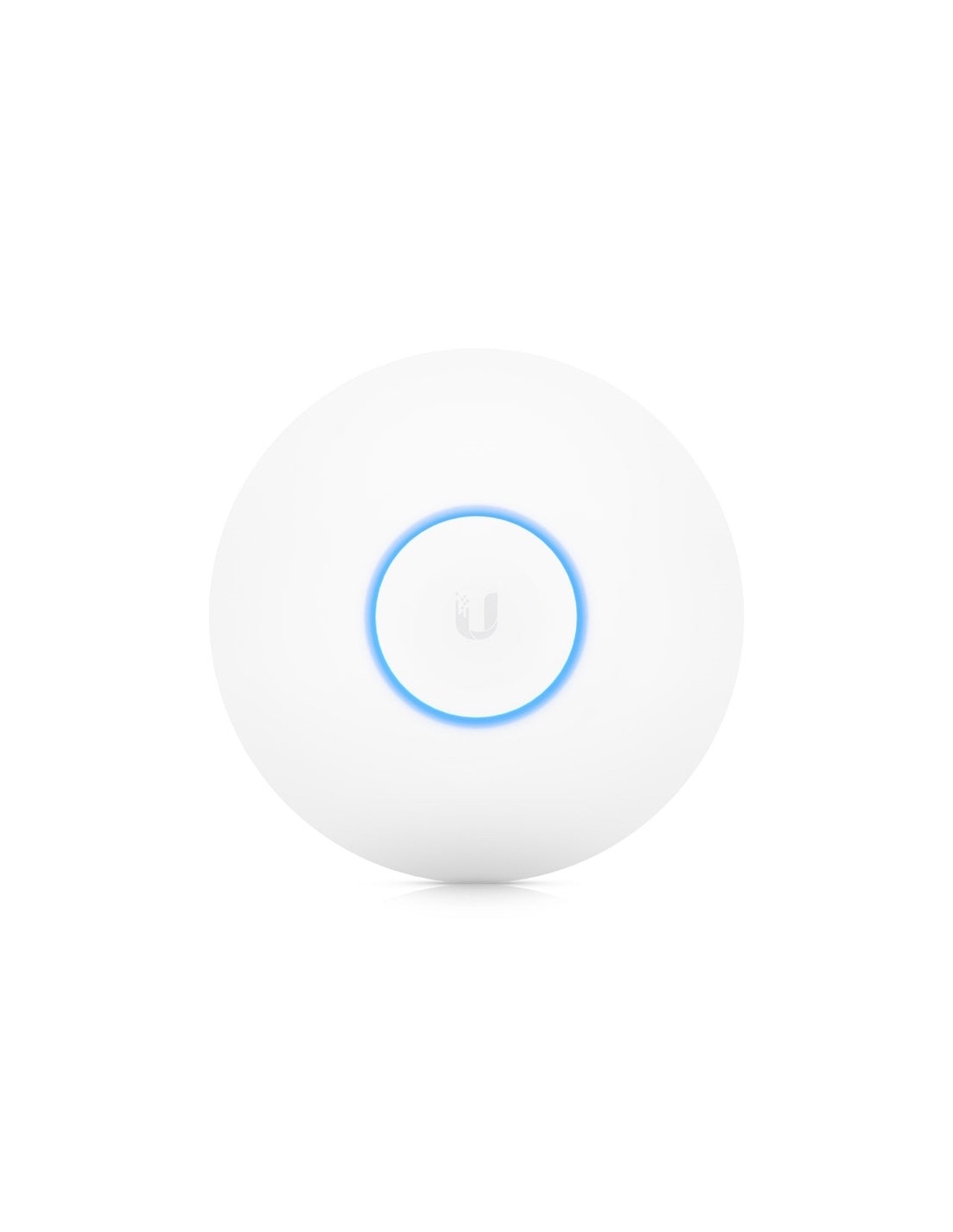

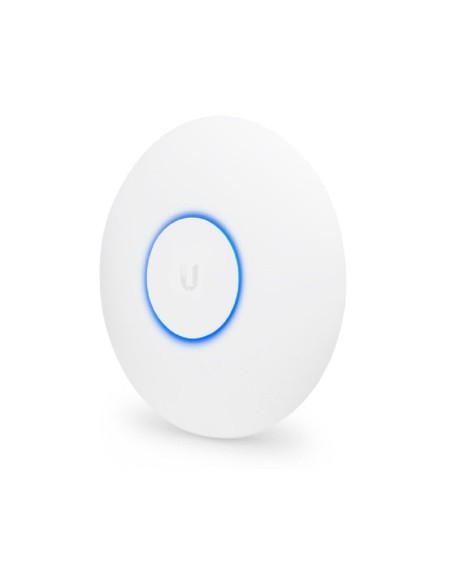

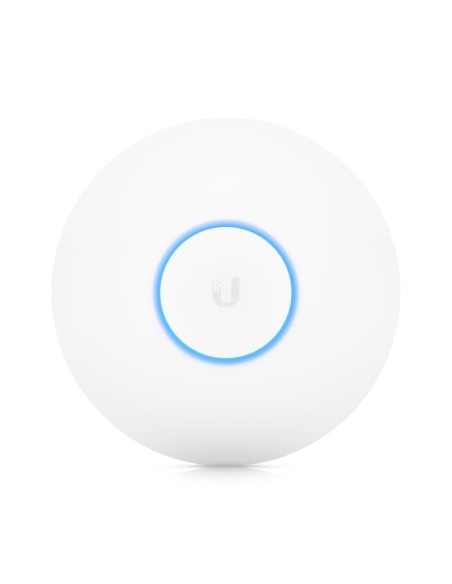

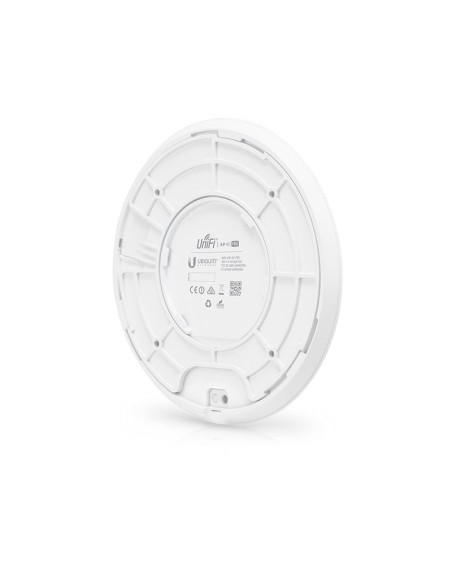

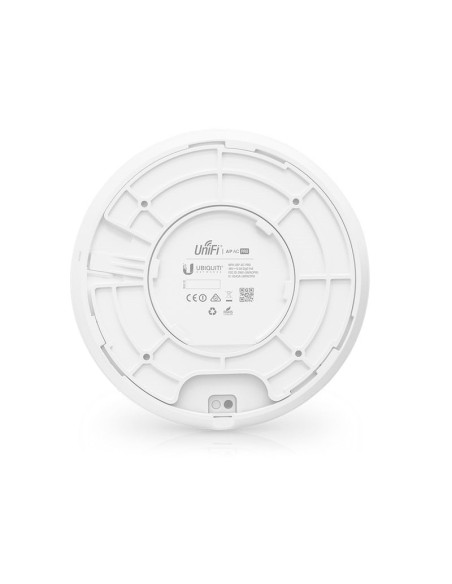

The UAP-AC-PRO UniFi Access Point Enterprise Wi-Fi System from Ubiquiti is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wi-Fi standard with speeds of up to 1300 Mb/s in the 5 GHz radio band, and up to 450 Mb/s in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual band operation with 3 x 3 MIMO technology for each band. It has a range of up to 400' and two Gigabit Ethernet ports. This UniFi Access Point (AP) has a sleek design and can be easily mounted to a ceiling tile or wall, using the included mounting hardware.

The Wi-Fi system includes the UniFi Network Application that can be installed on a PC, Mac, or Linux machine within the network. Using the UniFi Network Application, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.

Benefits

• The UniFi AC Pro AP supports simultaneous dual-band, 3x3 MIMO technology in the 5 and 2.4 GHz radio bands.
• The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use. You can easily replace a standard UniFi AP using the same mounting hardware.
• The UniFi Network Application is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized application.
• Remotely access the UniFi Network Application to upgrade deployed UAP-AC-PRO APs while in the field.

Tech specs

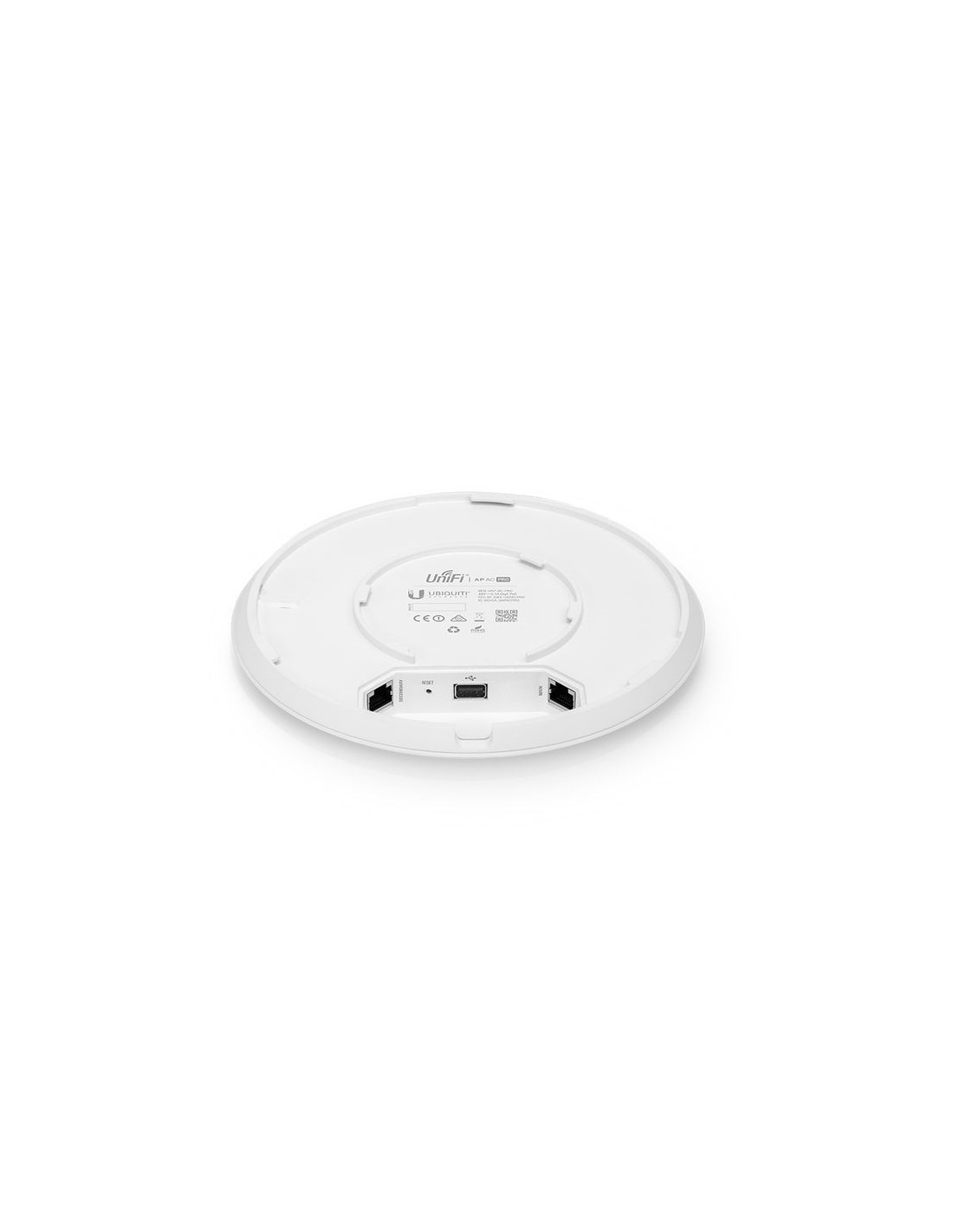

• Networking Interface: (2) 10/100/1000 Ethernet Ports
• Antennas: (3) Dual-Band Antennas, 3 dBi Each
• Max TX Power: 2.4GHz: 22 dBm - 5GHz: 22 dBm
• Buttons: Reset
• WiFi Standards: 802.11 a/b/g/n/ac
• Power Method: Passive Power over Ethernet (48V), 802.3af/803.2at Supported (Supported Voltage Range: 44 to 57VDC)
• Power Supply: 48V, 0.5A PoE Gigabit Adapter
• Maximum Power Consumption: 9W, (20W with optional accessory)
• BSSID: Up to Four Per Radio
• Power Save: Supported
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Certifications: CE, FCC, IC

Box Contents

• 1 x UniFi AC Pro Access Point
• 1 x Mounting Bracket
• 1 x Ceiling Backing Plate
• 4 x Flat Head Screws (M3x50)
• 4 x Keps Nuts (M3)
• 4 x Screws (M2.9x20)
• 4 x Screw Anchors (M3x20)
• 1 x Gigabit PoE (48V, 0.5A) with Mount Bracket
• 1 x Power Cord
• Quick Start Guide
