IO Extender for micro:bit / UNIHIKER

Ships Directly from Canada

US$8.00

Rich ports, lead out all micro:bit pins in Gravity standard, 2-way I2C port
Specially-designed I2C port for HuskyLens
Clear silkscreen on the back, easy to get started.

Ask a Quote

Description

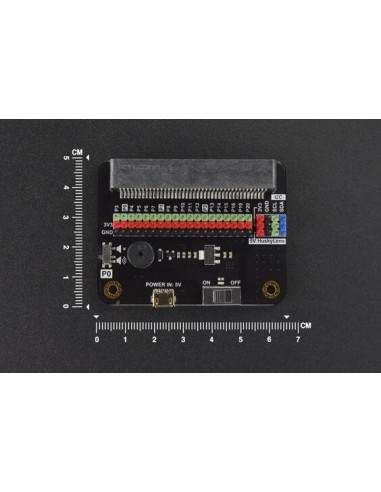

This IO Extender is an easy-to-use and low-cost expansion board for micro:bit. It leads out all IO ports of micro:bit and has a specially-designed port for “HuskyLens AI camera”. This board can be used to provide stable 5V power supply for HuskyLens to make it run steadily in all modes.

The silkscreens on the back clearly indicate the functions of all interfaces, which can help users to get started easily.

Note: Please supply power via the USB port on this product when using with HuskyLens.

Features

Rich ports, lead out all micro:bit pins in Gravity standard, 2-way I2C port
Specially-designed I2C port for HuskyLens
Clear silkscreen on the back, easy to get started.

Specification

Power: 5V MicroUSB
GPIOs(3.3V): P3 P0 P4 P5 P6 P7 P1 P8 P9 P10 P11 P12 P13 P14 P15 P16 P19 P20
I2C Ports(3.3V) ×2
HuskyLens-I2C Port(5V) ×1
Buzzer ×1
Dimension: 66.0 x 50.5mm/2.60 x 1.99”

Documents

Product wiki

Product Details

Reference MBT0008
