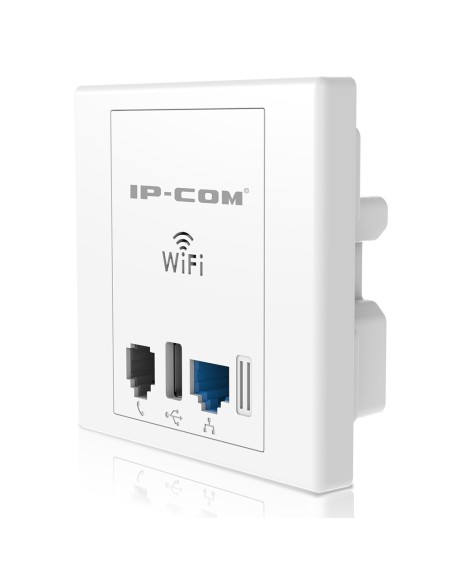

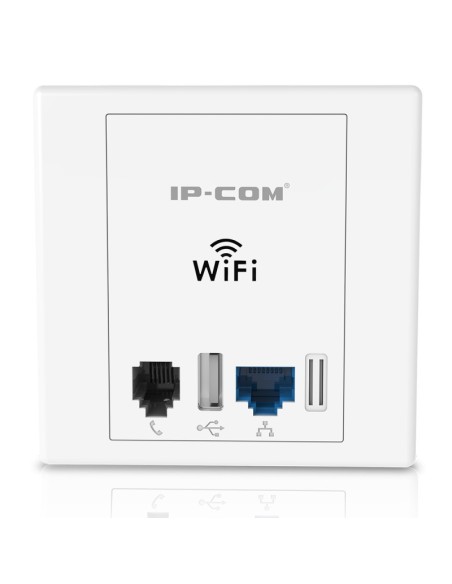

Wall Jack Access Point
W30AP is the latest generation wall plate wifi access point (AP) which can be installed in any 86mm wall plate without breaking the existing decorations and is easily be managed.
Shipping Directly from Canada
Customer-Friendly Return Policy
W30AP is the latest generation wall plate wifi access point (AP) which can be installed in any 86mm wall plate without breaking the existing decorations and is easily be managed. It is well suited to university dormitories, hospital wards, hotel rooms and other sites with densely divided rooms.
W30AP 300M Wall Jack Access Point
- Multiple Interfaces including one USB, one RJ11 and two RJ45
- Power over Ethernet 802.3af standard supported only
- Tagging VLAN ID to each SSID to establish access rights
- Bypass function allows two Ethernet ports to connect directly without power supply
W30AP is the latest generation wall plate Wi-Fi Access Point (AP) that can be installed in any 86 mm wall plate without breaking the existing decorations and is easily managed. It is well suited for university dormitories, hospital wards, hotel rooms and other sites with densely divided rooms. It helps mitigating the signal quality problems caused by traditional AP deployments in such sites and greatly reduces capital and operation expenses in running these sites.
Wireless N300 Speed
W30AP transfer rates of up to 300 Mbps on the 2.4 GHz bands for faster file transfers and smoother video streaming.
Standard 86mm Panel Design
W30AP uses a standard 86 x 86 mm wall plate and can leverage existing 86 mm network panel covers.
Power over Ethernet (802.3af)
The port on the back supports Power over Ethernet (PoE) functionality which allows both power and data to be carried over a single Ethernet cable to W30AP.
W30AP provides a 5 V/500 mA USB charger output port. You can use your existing USB charging cables to charge most USB powered devices like smartphones or MP3-players.
Advanced Wireless Security
W30AP offers multi-level wireless encryption options to prevent unauthorized access and protect your important data.
- 64/128-bit WEP, WPA-PSK, WPA2-PSK, WPA&WPA2-PSK, WPA, WPA2
- Wireless Access Control based on the MAC address of the wireless adapter
SSID to VLAN tagging
W30AP can be configured to broadcast up to two SSID. Each SSID can be tagged to a specified network VLAN for different user accesses based on established access rights.
W30AP can be managed by a hardware Access Controller, the administrator can monitor, manage and control the APs more easily.
Now available in Canada!
- 300M Wall Jack Fat Access Point W30AP
- Quick Installation Guide
- Ethernet cable
- Two Screws
- Resource CD
- Input Power
- 802.3af PoE
- 1 * Reset
- Output (Per Chain)
- Wireless Speed
- DHCP Server
- Compliant Standards
- IEEE 802.11n/g/b
- Wireless Security Settings
- 64/128 WEP, WPA-PSK, WPA2-PSK, WPA & WPA2-PSK, WPA, WPA2
- Antenna Connectors
- 2*3dbi omni-directional antennas (Built-in)
- Storage Humidity
- 10% ~ 90% non-condensing
- Operating Humidity
- 10% ~ 90% non-condensing
- Operating Temprature
- -10ºC to 45ºC
- Storage Temprature
- -30ºC to 70ºC
- Return Warranty
- Standard 30 Days
- Manufacturer Warranty
- 1 Year Limited Warranty
