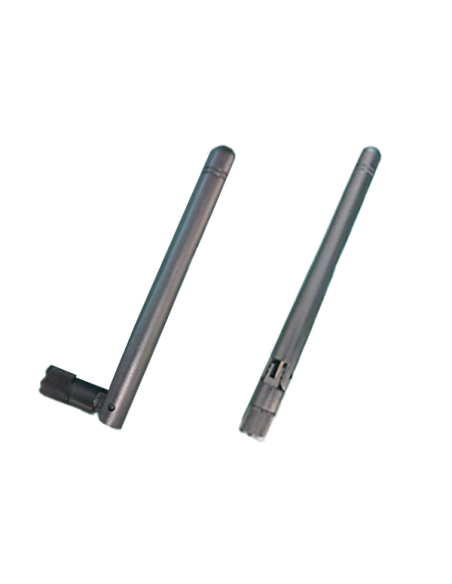

DRA24126ESBE Antenna
DRA24126ESBE Antenna

WiFi 6E Application Antenna

Ships in 5~10 Days
US$9.95

This miniature antenna is designed for Wi-Fi 6E applications and can be easily built-in portable devices for SMA Plug. It has excellent stability and sensitivity to consistently provide high signal reception efficiency.

Ask a Quote

Description

Features

  • External type dipole antenna
  • 2.4~2.5&5.15~7.15GHz of frequency
  • Plastic rod of Black
  • RoHS compliance

.

Application

  • Wi-Fi 6E Wireless Communication
  • WLAN device, WLAN Router, e.g., AP,PIC Wireless Card

.

General Data

  • Part No: DRA24126ESBE
  • Frequency: 2.4~2.5&5.15~7.15GHz
  • V.S.W.R: 2.4-1.92max 5.85-2.1max
  • Gain（dBi): 2.45GHz@3.0dBi, 5.85GHz@4.0dBi
  • Polarization: Linear,Vertical
  • Storage Temp: -10℃~+70℃
  • Operating Temperature: -10℃~+60℃
  • Impedance with Matching: 50 Ω
  • Weight: 6.5 g
  • Antenna Type: SMA Plug
  • Dimension: L108.4X φ 11.0 (mm)

Product Details

Burst Frequency
2.4~2.5 & 5.15~7.15GHz
Impedance with Matching
50 Ω
Polarization
Linear,Vertical
Gain
2.45GHz@3.0dBi , 5.85GHz@4.0dBi
V.S.W.R
2.4-1.92max 5.85-2.1max
Operating Temperature
-10℃~+60℃
Storage Temperature
-10℃~+70℃
Dimension
L108.4X φ 11.0 (mm)
Weight
6.5 g
Antenna Connectors
SMA
DRA24126ESBE
3481724172384
DRA24126ESBE
