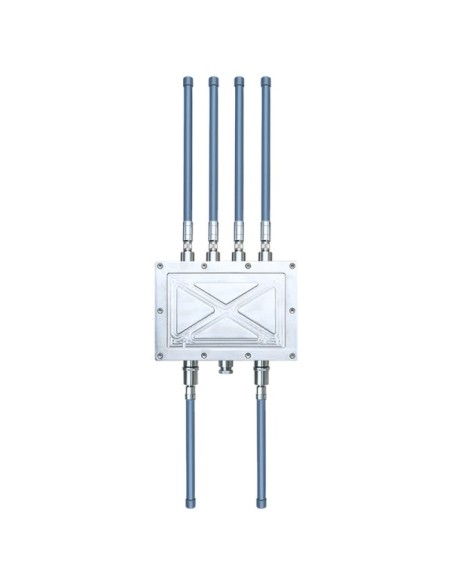

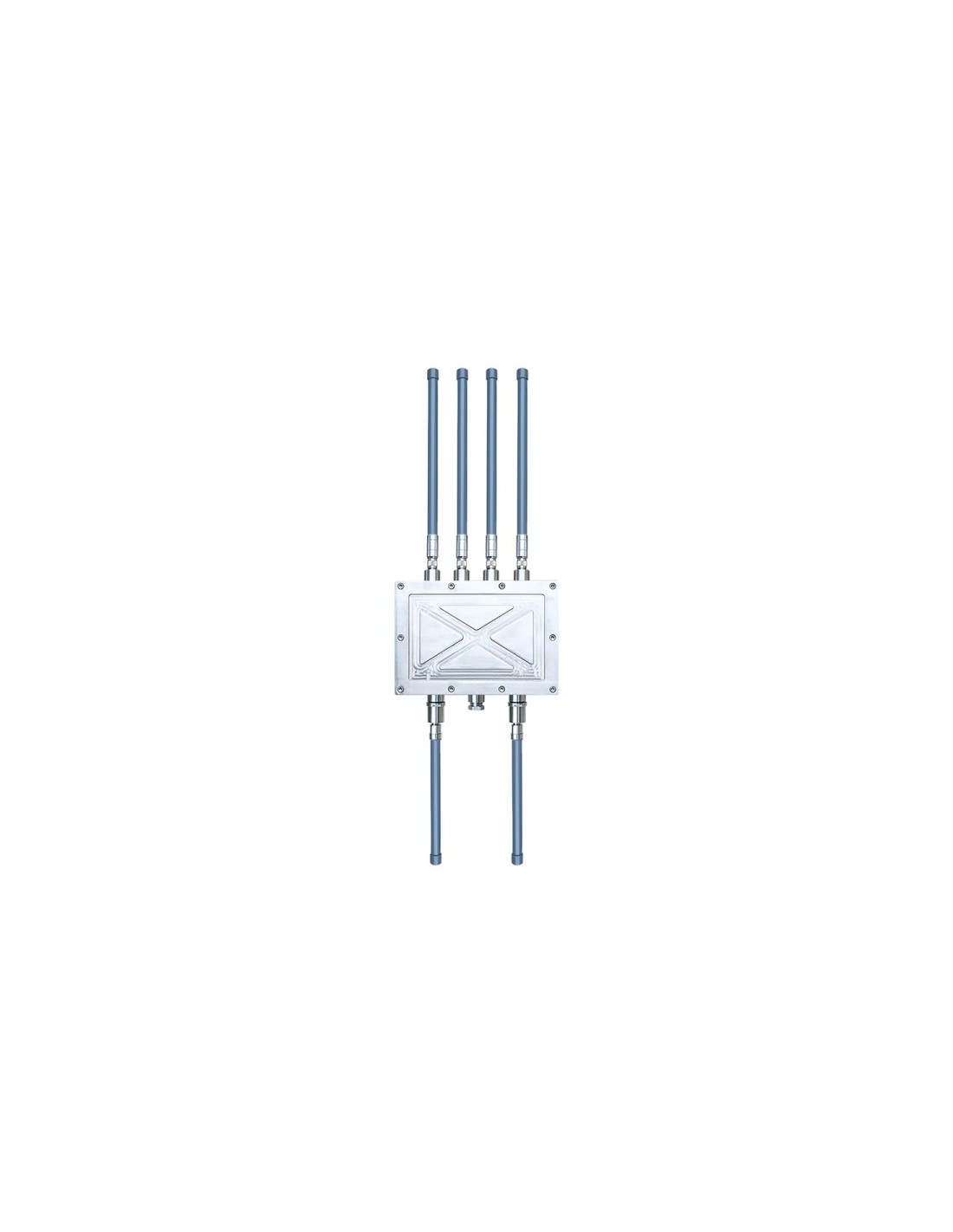

MX921-1F V2 Industrial Explosion-proof Wifi6 tri-band wireless AP

Industrial Explosion-Proof Wi-Fi 6 Access Point
The MX921-1F V2 is a rugged, 802.11ax industrial explosion-proof tri-band wireless access point designed for mission-critical wireless coverage in hazardous areas. With an EX d IIC T6 Gb/ExtD A21 IP68 T80°C rating and a 304 stainless steel housing, it is engineered to operate safely and reliably in explosive gas and dust environments.

High-Capacity Tri-Band Wi-Fi 6 Performance
Supporting IEEE 802.11 g/gn/an/ac/ax, the MX921-1F V2 delivers a combined maximum wireless rate up to 6573.5 Mbps across three radios (2.4 GHz + dual 5 GHz). 2x2 and 4x4 MIMO, high 23 dBm transmit power, and dual-band omnidirectional antennas provide strong coverage and high throughput for dense industrial deployments.

Built for Harsh Industrial Environments
The enclosure reaches IP68 protection level and is designed to operate from -40°C to +80°C with 5–95% non-condensing humidity, making it suitable for outdoor, underground, and heavy-industrial sites where dust, moisture, and temperature extremes are normal operating conditions.

Flexible Deployment & Power Options
MX921-1F V2 supports multiple operating modes including Access Point, Client, WDS AP, and WDS Client, allowing flexible topologies for backhaul and client access. 2.5GbE copper and 2.5G SFP ports simplify integration into high-speed industrial networks, while 802.3bt PoE power over 100 meters makes installation easier where AC power is limited.

Advanced Management & Positioning Services
The device can be managed via web interface, wireless controller (AC), or SNMP, supporting centralized configuration, monitoring, and upgrades. It also integrates with Maxon’s information positioning system and supports wireless probe-based positioning, ideal for smart pipeline galleries, factories, and underground mines requiring both coverage and location awareness.

Typical Applications

• Petrochemical plants and oil & gas facilities

• Underground pipeline galleries and tunnels

• Coal mines and mining infrastructure

• Heavy manufacturing and smart factories

• Any hazardous area requiring explosion-proof IP68 Wi-Fi 6 coverage

Specifications

Hardware

• Enclosure Material: 304 stainless steel

• Dimensions: 294 × 229 × 97 mm

• Net Weight: 10.5 kg

• Installation: Ceiling or wall mounting

• Protection Level: IP68

• Explosion-Proof Grade: Ex d IIC T6 Gb / ExtD A21 IP68 T80°C

• Antenna Type: Dual-band omnidirectional (6x external antennas)

• Antenna Gain:

  • 2.4 GHz: 6 dBi

  • 5 GHz: 8 dBi

• Transmission Distance: 0–200 m (typical)

• Power Supply: 48 V 1.25 A PoE (802.3bt / PoE+)

• Maximum Power Consumption: ≤ 35 W

• Maximum Transmit Power:

  • 2.4 GHz: 23 dBm

  • 5 GHz: 23 dBm

• WAN Interface: 10/100/1000 Mbps / 2.5 Gbps (RJ-45)

• LAN Interface: 10/100/1000 Mbps / 2.5 Gbps (RJ-45) or 2.5 Gbps SFP

• Status Indicator: Network port indicator LED

• Operating Temperature: -40°C to +80°C

• Storage Temperature: -40°C to +85°C

• Operating Humidity: 5%–95% RH, non-condensing

• Surge Immunity: PoE/GE – Common mode 4 kV, differential mode 2 kV

• ESD Immunity: Contact discharge 6 kV, air discharge 8 kV

• Included Accessories:

  • Outer hex tool

  • 6 × dual-band omnidirectional antennas

  • 48 V / 1.25 A PoE adapter

  • AC power cord

  • Product manual

  • Product certificate & warranty card

  • MX921-1F V2

Wireless

• Wi-Fi Standard: IEEE 802.11 g/gn/an/ac/ax (Wi-Fi 6)

• Maximum Wireless Rate (Total): 6573.5 Mbps

  • Radio1 (2.4 GHz): up to 573.5 Mbps

  • Radio2 (5 GHz-1): up to 1200 Mbps

  • Radio3 (5 GHz-2): up to 4800 Mbps

• Frequency Ranges:

  • 2.4 GHz: 2412–2472 MHz

  • 5 GHz: 5180–5320 MHz, 5745–5825 MHz

• Channel Widths: 20/40/80/160 MHz

• MIMO: Supports 2x2 and 4x4 MIMO

• Operating Modes: Access Point, Client, WDS Access Point, WDS Client

• Security: WPA2-PSK, hidden SSID, IP/MAC filtering

• DFS & Channel Optimization: Intelligent channel analysis, automatic optimal channel selection, 5 GHz DFS support

Management & Software

• Configuration & Management:

  • Web-based configuration

  • Wireless controller (AC) centralized management

  • SNMP v2c/v3 management

• Network Features:

  • IPv4/IPv6 dual stack

  • DHCP Server/Client

  • DNS, HTTP, LLDP, Proxy ARP, SMTP, SNMP, Syslog, TCP/IP, SSH, UDP, VLAN

• Bandwidth Control: IP/MAC-based uplink and downlink rate limiting

• QoS & Reliability: QoS, watchdog, scheduled restart

• IoT Expansion: Reserved UART interface for Bluetooth, ZigBee, UWB and other IoT extensions

• Positioning Services: Wireless probe function with positioning server integration for smart pipeline and smart factory scenarios
