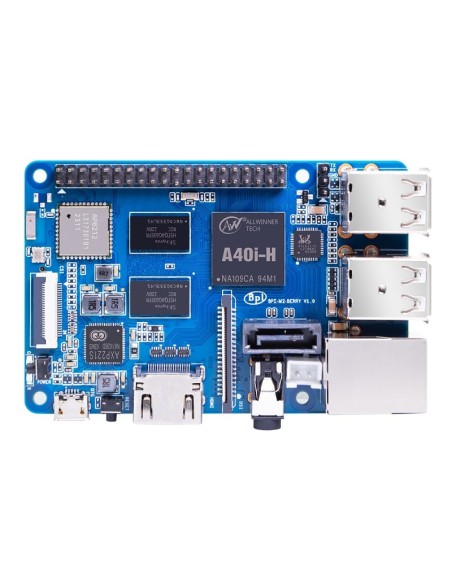

Banana Pi BPI-M2 Berry (1GB DDR3) Top View

Banana Pi BPI-M2 Berry (1GB DDR3)

Name: Banana Pi BPI-M2 Berry (1GB DDR3)
Brand: Banana Pi
SKU: BPI-M2-Berry
Price: 40 USD
Availability: InStock

Ships Directly from Canada

US$40.00

Banana Pi BPI-M2 Berry is a quad-core mini single board computer built with Allwinner A40i SoC. It features 1GB of RAM . It also has onboard WiFi and BT. On the ports side, the BPI-M2 Ultra has 4 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, and last but not least, a SATA port.

* Banana Pi Official Distributor.

The minimum purchase order quantity for the product is 2.

Ask a Quote

Description

Key Features

Allwinner A40i/R40/V40 Quad Core ARM Cortex A7 CPU
1GB DDR3 SDRAM
WiFi&BT h onboard
SATA Interface
4*USB 2.0
MIPI DSI interface
CSI camera interface

Hardware interface

Product Details

SoC: Allwinner A40i/R40/V40
CPU: quad-core cortex -A7,the most power efficient CPU core ARM‘s ever development
RAM: 1GB DDR3 with 733MHz(shared with GPU)
Storage Capacity: MicroSD (TF) card,No eMMC onboard
SATA: suppoort SATA interface
Advanced GPU: dual-core MALI-400 MP2 and runs at 500MHz, capable of 1.1 Gpixel/s throughput. Graphics capabilities are slightly higher than the original Xbox’s level of performance.
Video Characteristics: Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 decode up to 1080P60,support video encodeing:High-deinition(HD)H.264 video encoder is up to 1080P@45fps
USB Compatibility: 4 USB 2.0 host, 1 USB 2.0 OTG
Integrated Camera Module: A CSI input connector Camera:Supports 8-bit YUV422 CMOS sensor interface,Supports CCIR656 protocol for NTSC and PAL,Supports 5M pixel camera sensor ,Supports video capture solution up to 1080p@30fps
LED: Power status Led and RJ45 Led
Audio Output: HDMI, analog audio (via 3.5 mm TRRS jack), I2S audio (also potentially for audio input)
HDMI, analog audio $via 3.5 mm TRRS jack$, I2S audio $also potentially for audio input$
USB Ports: 4 USB 2.0 host, 1 USB 2.0 OTG
Display Output: 4-lane MIPI DSI display,or RGB panel or LVDS panel,TV-out on HDMI V1.4
GPIO: 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
DC Power: 5V/2A with micro USB port
Battery Type: No 3.7V lithium battery power support
No 3.7V lithium battery power support
Button: Reset button, Power button, U-boot button
Wi-Fi: WiFi 802.11 b/g/n (AP 6212 module on board)
WiFi 802.11 b/g/n $AP 6212 module on board$
IR Receiver: No onboard IR receiver
Bluetooth: BT4.0
BT4.0
Networking: 10/100/1000Mbps Ethernet (Realtek RTL8211E/D)
Dimension: 85mmX56mm,same size as raspberry pi 3
Weight: 40g

Reference BPI-M2-Berry
