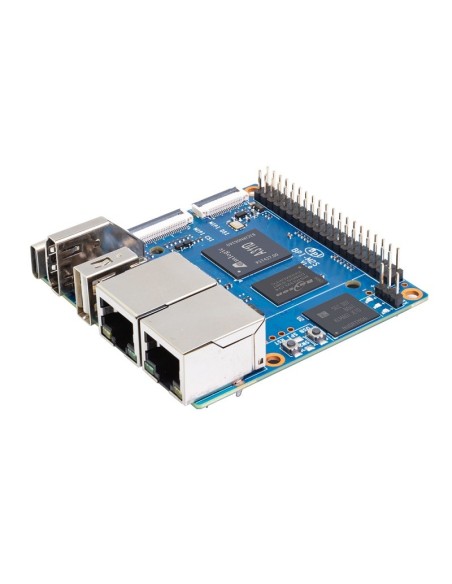

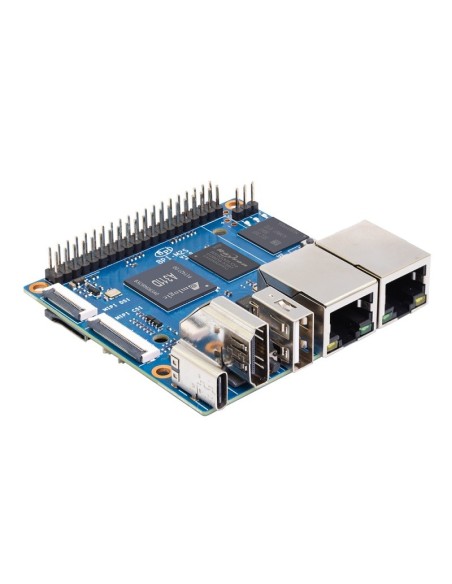

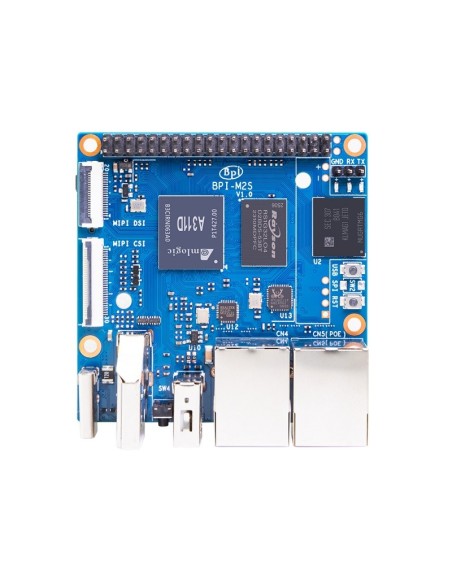

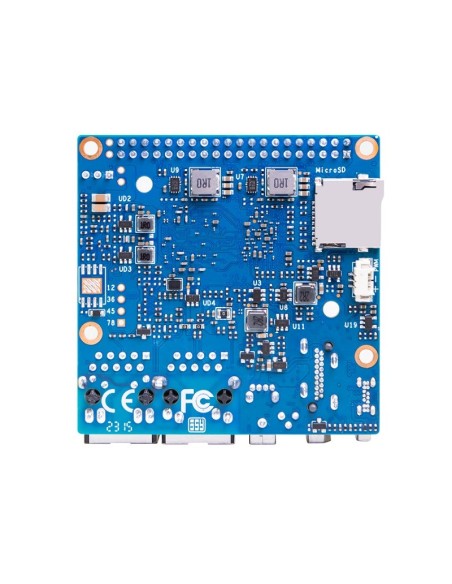

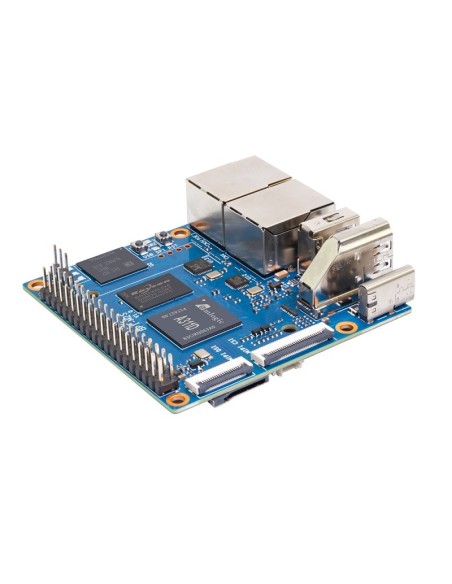

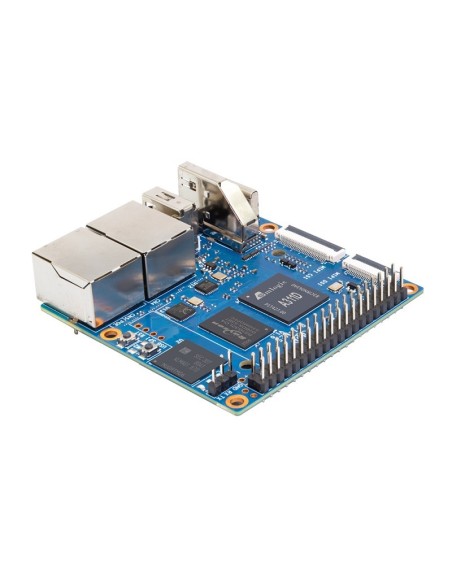

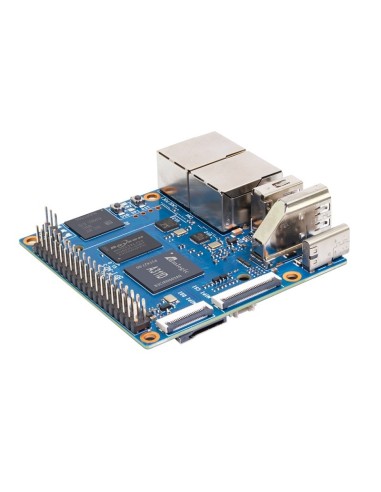

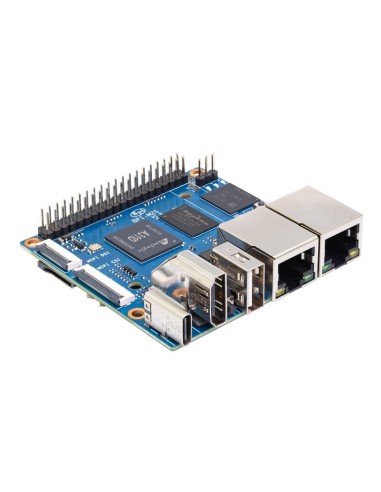

Banana Pi BPI-M2S (4GB DDR4+16GB eMMC)
Banana Pi BPI-M2S (4GB DDR4+16GB eMMC)
Banana Pi BPI-M2S (4GB DDR4+16GB eMMC)
Banana Pi BPI-M2S (4GB DDR4+16GB eMMC)
Banana Pi BPI-M2S (4GB DDR4+16GB eMMC)
Banana Pi BPI-M2S (4GB DDR4+16GB eMMC)
  • New
Banana Pi BPI-M2S (4GB DDR4+16GB eMMC)
Banana Pi BPI-M2S (4GB DDR4+16GB eMMC)
Banana Pi BPI-M2S (4GB DDR4+16GB eMMC)
Banana Pi BPI-M2S (4GB DDR4+16GB eMMC)
Banana Pi BPI-M2S (4GB DDR4+16GB eMMC)
Banana Pi BPI-M2S (4GB DDR4+16GB eMMC)

Banana Pi BPI-M2S (4GB DDR4+16GB eMMC)

Ships Directly from Canada
US$84.80

Banana Pi BPI-M2S new design with Amlogic A311D, Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU,ARM G52 MP4(6EE) GPU,NPU for AI at 5.0 TOPS, support Camera and MIPI-CSI interface ,HDMI output,2 Gigabit port, 4G RAM and 16 GB eMMC flash.

*Banana Pi Official Distributor

Description

Key Features

  • Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU
  • NPU for AI :Next generation, deep-neural-network applications, at 5.0 TOPS
  • 4GB LPDDR4 RAM
  • 16GB eMMC flash (Max 128G)
  • Support MIPI-DSI Dispaly Serial interface
  • Support MIPI-CSI Camera Serial interface
  • 2 Gigabit ethernet port
  • HDMI output
  • 40 PIN GPIO
  • Support Android and Linux system

.Hardware interface


.Hardware Specifications

  • SoC: Amlogic A311D hexa-core processor with 4x Arm Cortex-A73 cores, 2x Arm Cortex-A53 cores, Arm Mali-G52 MP4 (6EE) GPU with OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 support, 5 TOPS NPU
  • System Memory: 4GB LPDDR4
  • Storage: 16GB eMMC flash (option up to 128GB), MicroSD card slot Video interfaces
  • HDMI 2.1 output up to 4Kp60
  • MIPI DSI connector for display
  • MIPI CSI connector for camera
  • Networking: 2x Gigabit Ethernet ports one via RTL8211F GbE transceiver, the other through RTL8111H PCIe to Gigabit Ethernet transceiver
  • USB: 1x USB 2.0 Type-A port, 1x USB Type-C port
  • Expansion: 40-pin GPIO header
  • Debugging: 3-pin header for serial console
  • Misc: 3x buttons
  • Power Supply: Via USB-C port or pin header
  • Dimensions: 65 x 65mm

Product Details

SoC
Amlogic A311D hexa-core processor with 4x Arm Cortex-A73 cores, 2x Arm Cortex-A53 cores, Arm Mali-G52 MP4 (6EE) GPU with OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 support, 5 TOPS NPU
System Memory
4GB LPDDR4
Storage Capacity
16GB eMMC flash (option up to 128GB), MicroSD card slot Video interfaces
USB Compatibility
1x USB 2.0 Type-A port, 1x USB Type-C port
Expansion
40-pin GPIO header
Networking
2x Gigabit Ethernet ports one via RTL8211F GbE transceiver, the other through RTL8111H PCIe to Gigabit Ethernet transceiver
HDMI
HDMI 2.1 output up to 4Kp60
BPI-M2S
