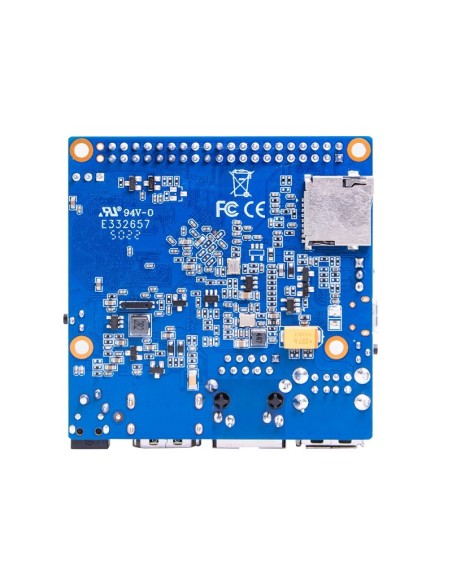

Banana Pi BPI-M2+(H3)(1GB DDR3+8GB eMMC) Back-side view

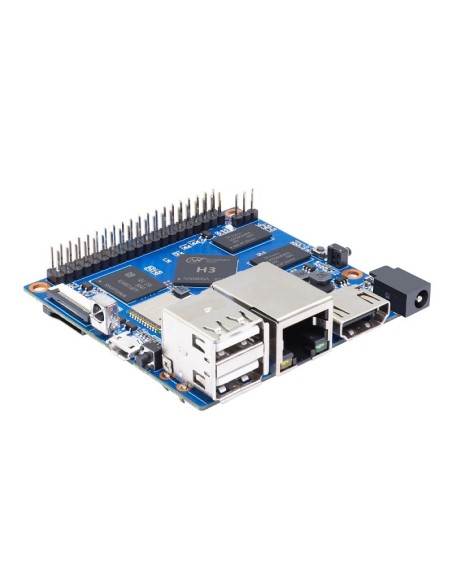

Banana Pi BPI-M2+(H3)(1GB DDR3+8GB eMMC)

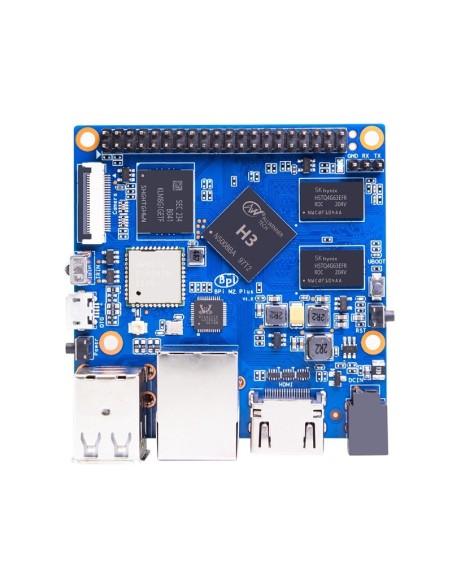

Banana Pi BPI-M2+(H3)(1GB DDR3+8GB eMMC) Top View

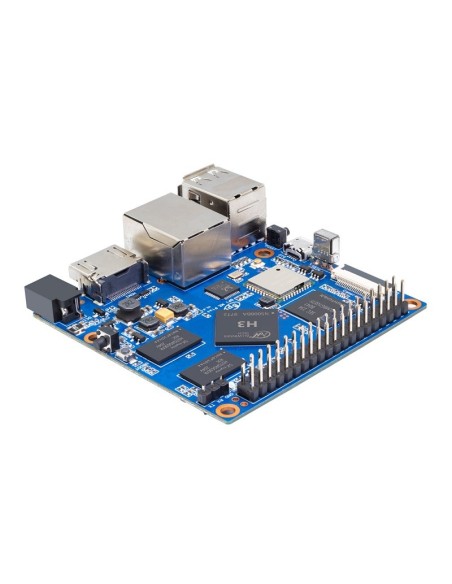

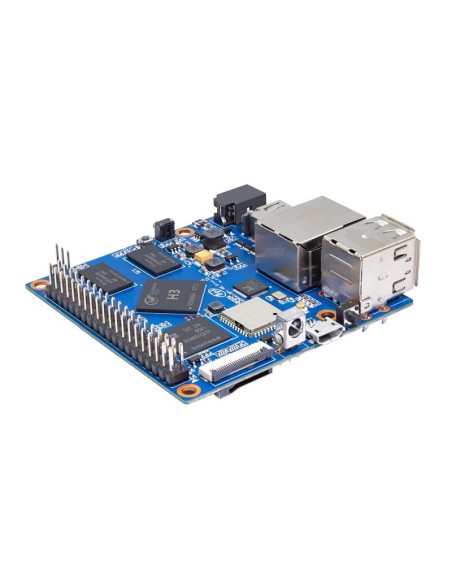

Banana Pi BPI-M2+(H3)(1GB DDR3+8GB eMMC)

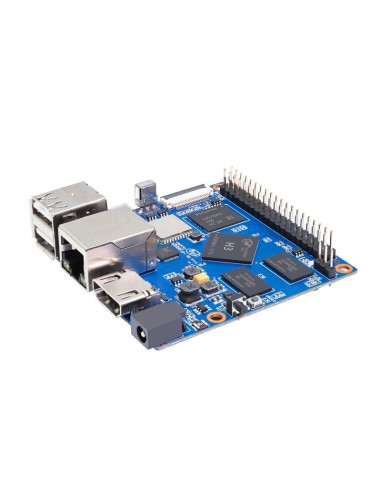

Name: Banana Pi BPI-M2+(H3)(1GB DDR3+8GB eMMC)
Brand: Banana Pi
SKU: BPI-M2P-H3
Price: 38.4 USD
Availability: InStock

Ships Directly from Canada.

US$38.40

Banana PI BPI-M2+ is the open source hardware platform, use Alliwnner H3 (option H2+ chip and H5 chip ) chip on board. and mini size only 65mm*65mm, PBI-M2+ hardware: 1Ghz ARM7 quad-core processor, 1GB DDR3 SDRAM, 8G eMMC flash on board. Compact and powerful for IoT, DIY, and embedded projects with SDIO wifi&BT 4.0 module on board.1 Gigabit ethrnet.

*Banana-Pi Official Distributor

Ask a Quote

Description

Key Features

Allwinner H3 Quad-core 1.2GHz Cortex-A7
1GB DDR3
8GB eMMC onboard
HDMI out
WiFi and BT onboard
10/100/1000Mbps Ethernet Port
CSI camera interface

.Hardware interface

Product Details

CPU: H3 Quad-core Cortex-A7 H.265/HEVC 4K
Memory: 1GB DDR3 (shared with GPU
Flash Type:: 8GB eMMC flash onboard
Advanced GPU: Mali400MP2 GPU @600 MHz,Supports OpenGL ES 2.0
LED: Power led & Status led
Audio Output: HDMI
USB Ports: two USB 2.0 HOST, one USB 2.0 OTG
Display Output: Supports HDMI output with HDCP, Supports HDMI CEC, Supports HDMI 30 function, Integrated CVBS, Supports simultaneous output of HDMI and CVBS
GPIO: 40 Pins Header,compatible with Raspberry Pi B+
Power: 5V/2A DC input can supply power, but USB OTG input don’t supply power
Wi-Fi: SDIO AP6212 for Wifi
IR Receiver: IR input on board
Bluetooth: BT 4.0（option AP6181 AP6335
BT 4.0（option AP6181 AP6335）
OS Support: Android, Ubuntu, Debian, Raspberry Pi Image
Networking: 10/100/1000 Ethernet
Video In: A CSI input connector Camera:1 Supports 8-bit YUV422 CMOS sensor interface,2 Supports CCIR656 protocol for NTSC and PAL, 3 Supports SM pixel camera sensor, 4 Supports video capture solution up to 1080p@30fps

Reference BPI-M2P-H3
