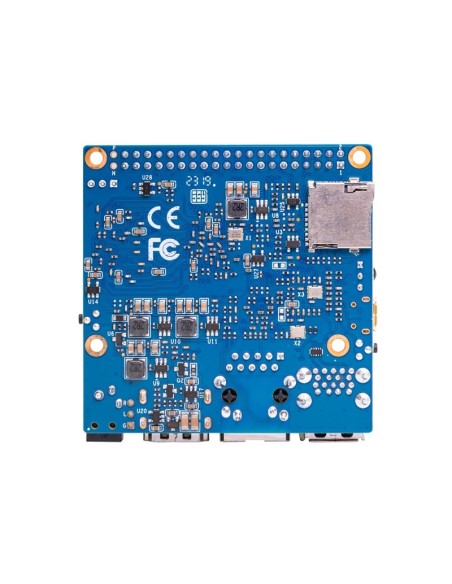

Banana Pi BPI-M2 PRO (2G DDR4+16G eMMC) Back-side View

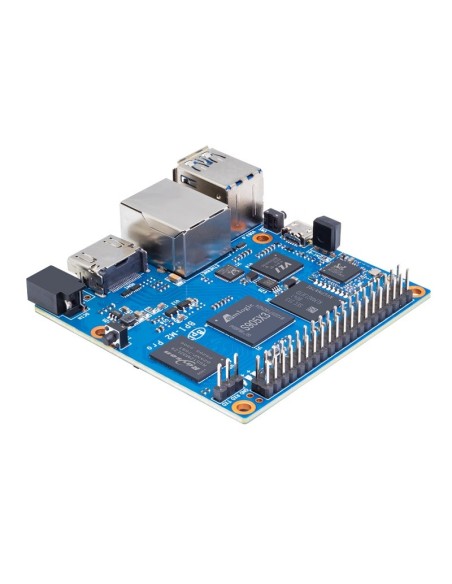

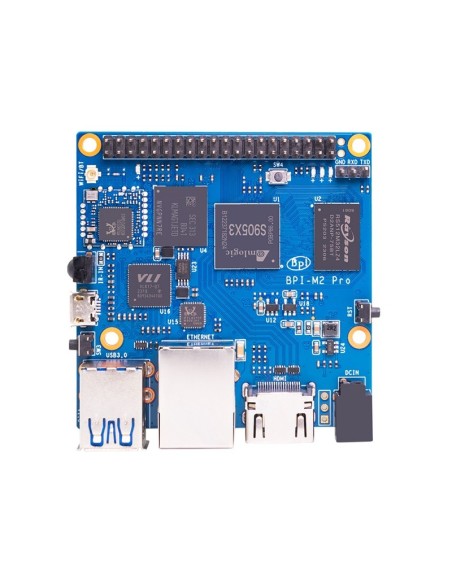

Banana Pi BPI-M2 PRO (2G DDR4+16G eMMC) Top View

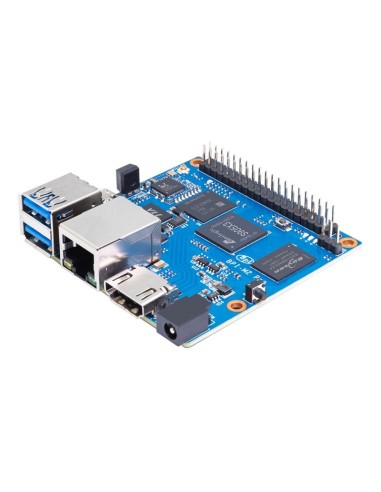

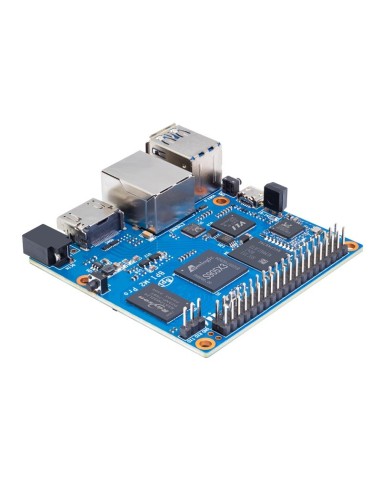

Banana Pi BPI-M2 PRO (2G DDR4+16G eMMC)

Name: Banana Pi BPI-M2 PRO (2G DDR4+16G eMMC)
Brand: Banana Pi
SKU: BPI-M2-PRO
Price: 57 USD
Availability: InStock

Directly Ships from Canada

US$57.00

Banana Pi BPI-M2 Pro is the next generation single board computer from Banana Pi in 2021. It is powered by Amlogic S905X3 quad-core Cortex-A55 (2.0 XXGHz) processor. Onboard 2GB LPDDR4 memory and 16GB EMMC storage, and supports 2 USB 3.0 interface, a gigabit network port. RT8821CU wifi&BT onboard. 1 HDMI output

*Banana Pi Official Distributor

The minimum purchase order quantity for the product is 5.

Ask a Quote

Description

Key Features

Amlogic S905X3 64-bit Quad core Cortex-A55 (2.0xxGHz)
Mali-G31 GPU
2GB LPDDR4
16GB eMMC flash
2 USB 3.0
RTL8821CU WiFi&BT 4.2 onboard
1 GbE ethernet
HDMI output

Hardware interface

Hardware Specifications

CPU: Amlogic S905X3 64-bit Quad-Core Cortex-A55 (2.0xxGHz)
GPU: Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
Memory: 2 GB LPDDR4
Storage: MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
Network: 10/100/1000 Mbit/s Ethernet
Wifi&BT: Dual-band 802.11 b/g/n/ac WiFi 5 1×1 and Bluetooth 4.2 via Realtek RTL8821CU
Video Output(s): 1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)
Audio Output(s): 1 x HDMI digital output
USB ports: 2x USB 3.0 host ports, 1x micro USB OTG port
GPIO: 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
Switches: Reset, Power and U-boot
LED: Power Status and Activity status
Power Source: 5 volt @3A / 5 volt @2A via DC port
Size & Weight: 65mm×65mm, 58g
OS: Android and Linux

Product Details

CPU: Amlogic S905X3 64-bit Quad-Core Cortex-A55 (2.0xxGHz)
Memory: 2 GB LPDDR4
Storage Capacity: MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
Advanced GPU: Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
LED: Power Status and Activity status
Audio Output: 1 x HDMI digital output
1 x HDMI digital output
USB Ports: 2x USB 3.0 host ports, 1x micro USB OTG port
Display Output: 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)
GPIO: 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
Switches: Reset, Power and U-boot
Power: 5 volt @3A via DC port
Wi-Fi: Dual-band 802.11 b/g/n/ac WiFi 5
Bluetooth: 4.2 via Realtek RTL8821CU
BT 4.2 via Realtek RTL8821CU
OS Support: Android and Linux
Networking: 10/100/1000 Mbit/s Ethernet
Dimension: 65mm×65mm
Weight: 58g

Reference BPI-M2-PRO
