Directly Ships from Canada
US$22.40

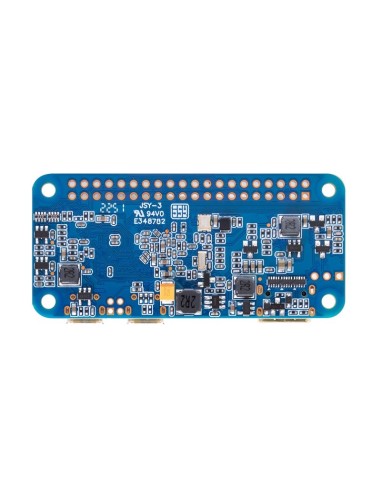

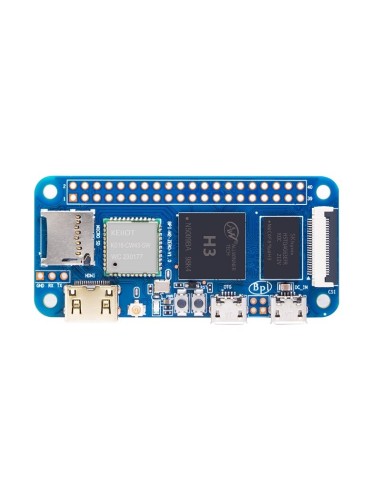

The Banana Pi M2 Zero (512MB DDR3) is an ultra compact single board computer which measures only 65mm*30mm. Its external interfaces are the same as the Raspberry Pi Zero W, and it will fit almost all cases and accessories for the Zero W. It uses the quad-core Cortex A7 Allwinner H3/H2+processor, with 512MB RAM. It’s ideal for light-weight systems and space-limited applications. Like other members of the Banana Pi family, it supports both Linux and Android operating systems.

*Banana Pi Official Distributor

Description

As Allwinner H2+ chip is EOL, so BPI-M2 Zero will use H3 chip defaults. but image for H2+ also support H3, so all image is same. support H2+ and H3 chip.

.Key Features

  • CPU: Allwinner H2+/H3, Quad-core Cortex-A7
  • 512MB DDR 3 SDRAM
  • WiFi & BT onboard
  • Mini HDMI
  • 40 Pin Raspberry Pi-compatible GPIO, including UART, SPI, I2C, etc
  • Same size as Raspberry Pi Zero W

.Hardware interface


Product Details

CPU
Allwinner H3/H2+, Quad-core Cortex-A7.
RAM
512MB DDR 3 SDRAM
Flash Type:
NOPE
TF Card
TF card (Max. 64GB)
Advanced GPU
Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0
LED
Power led & Status led
Audio Output
Mini HDMI
USB Ports
one USB 2.0 OTG
Display Output
mini HDMI 1.4,1080P@30fps, DHCP
UART
UART, ground
Yes
GPIO
40 Pin Raspberry Pi-compatible GPIO
Power
Micro USB with 5V/2A
Button
Power Button, Reset Button
Wi-Fi
(AP6212/K016) & BT onboard
SDIO AP6212(option AP6181、AP6335)
IR Receiver
N/A
OS Support
android, linux
android linux
Networking
NOPE (but can extension with PIN define)
Low-level peripherals
40 Pins Header,compatible with Raspberry Pi 3
Video In
A CSI input connector Camera
HDMI
Mini HDMI
Dimension
65mm × 30mm
Weight
15g
SPI
Yes
Passive PoE
NOPE
BPI-M2-Zero
