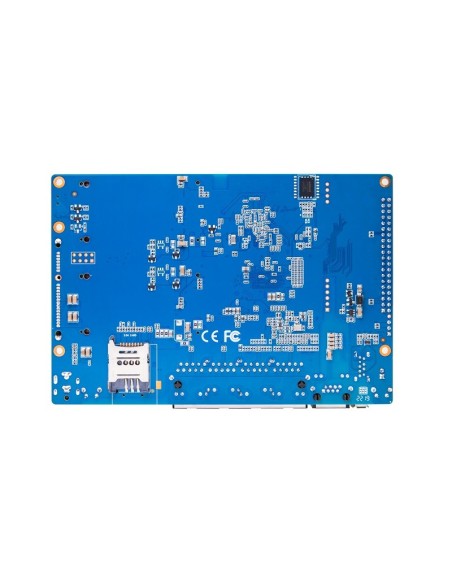

Banana Pi BPI-R64 (1G DDR3+8G eMMC) Backside view

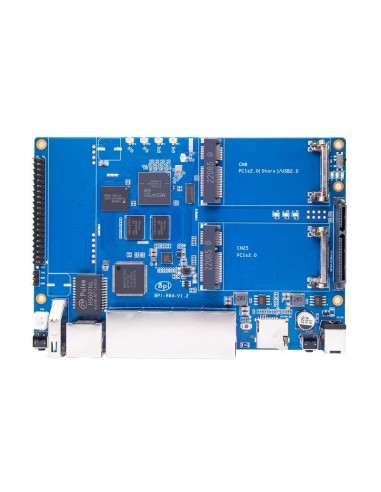

Banana Pi BPI-R64 (1G DDR3+8G eMMC) Top view

Banana Pi BPI-R64 (1G DDR3+8G eMMC)

Name: Banana Pi BPI-R64 (1G DDR3+8G eMMC)
Brand: Banana Pi
SKU: BPI-R64
Price: 81 USD
Availability: InStock

Ships Directly from Canada.

US$81.00

Banana Pi R64 is a router based development board, which can run on a variety of open source operating systems including OpenWrt,Linux. It design with Mediatek MT7622 64 bit chip, has 4 Gigabit LAN ports, 1 Gigabit WAN, and AC wifi AP function. 1G DDR RAM and 8G eMMC onboard.

*Banana Pi Official Distributor

Ask a Quote

Description

Key Features:

MediaTek MT7622,1.35GHZ 64 bit dual-core ARM Cortex-A53
1G DDR3 SDRAM
Mini PCIE interface support 4G module
built-in 4x4n 802.11n/Bluetooth 5.0 system-on-chip
MTK7615 4x4ac wifi (option)
support 1 SATA interface
MicroSD slot supports up to 256GB expansion
8G eMMC flash (option 16/32/64G)
128MB nand flash
5 port 10/100/1000 Mb Ethernet port
1 USB 3.0
Slow I/O:ADC, Audio Amplifier, GPIO, I2C, I2S, IR, PMIC I/F, PWM, RTC, SPI, UART
POE function support

Hardware Interface

PoE support

We design PoE function for BPI-R64 ,so easy to add PoE module to support PoE function,PoE modue can support IEEE 802.3bt PoE standard ,Max support 12V/3A to power BPI-R64

Product Details

CPU: MediaTek MT7622,1.35GHZ 64 bit dual-core ARM Cortex-A53
Memory: 1 GB DDR3
Storage Capacity: MicroSD (TF) card,8GB eMMC onboard
SATA: support 1 SATA interface
LED: Power status Led and RJ45 Led
USB Ports: 1 USB 3.0 host
DC Power: 12V/2A with DC in
Button: Reset button
PCIe: 1 mini pcie interface for 4G
Wi-Fi: built-in 4x4n 802.11n (800Mbps) sysem-on-chip and MTK7615 4x4ac wifi Module (1733Mbps) (option)
IR Receiver: PIN define with GPIO
Bluetooth: BT 5.0 system-on-chip
Networking: 5 10/100/1000Mbps Ethernet
Dimension: 148 mm × 100.5mm
Weight: 100g
Passive PoE: support POE module interface,can add POE module

Reference BPI-R64
