Ships Directly from Canada
US$108.75

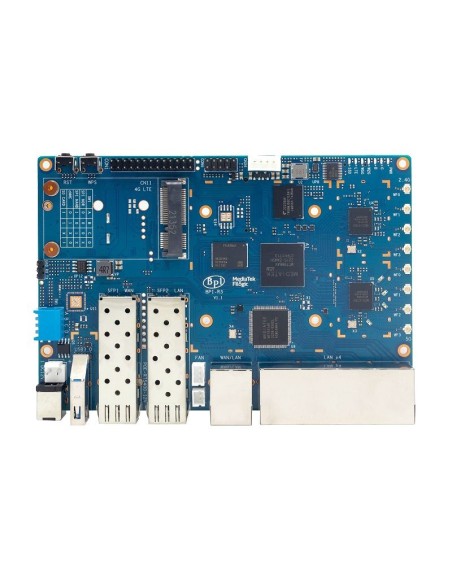

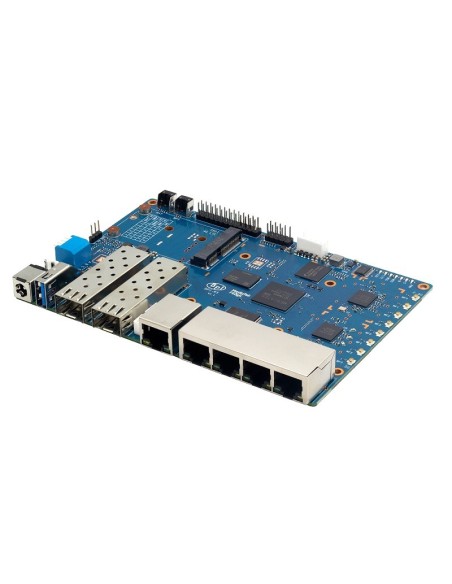

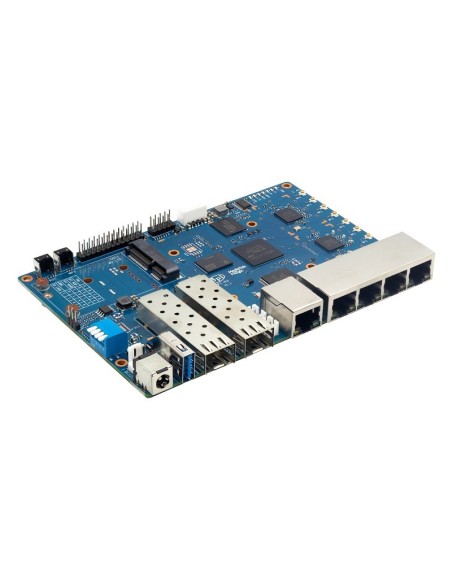

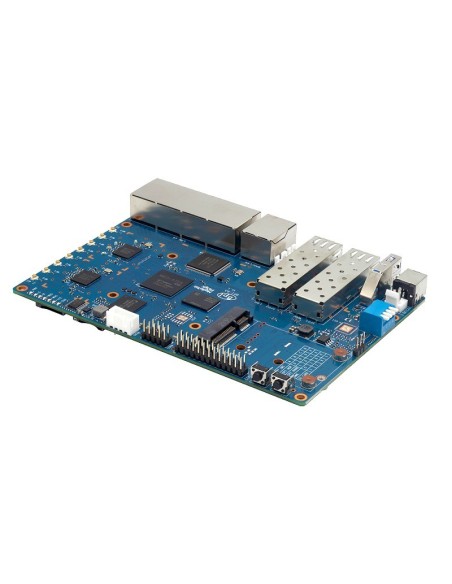

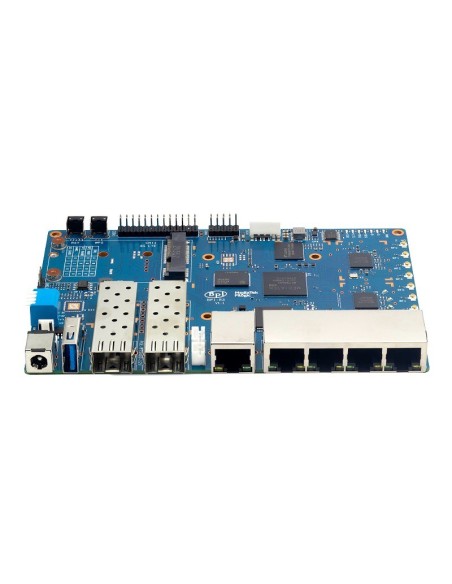

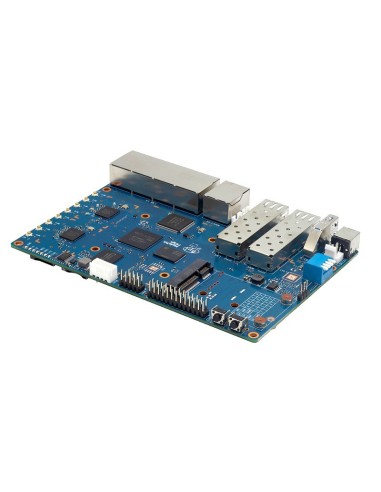

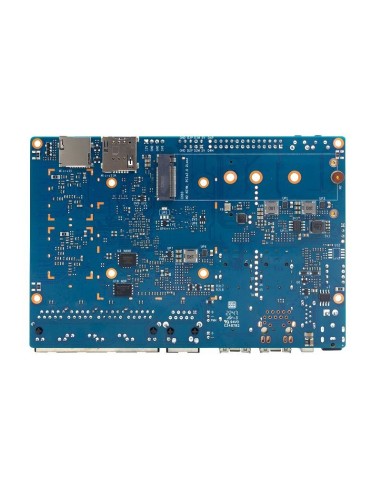

Banana Pi BPI-R3 Router board with MediaTek MT7986(Filogic 830) quad core ARM A53 + MT7531A chip design ,2G DDR RAM ,8G eMMC flash onboard,It is a very high performance open source router development board,support Wi-Fi 6 2.4G wifi use MT7975N and 5G wifi use MT7975P, support 2 SFP 2.5GbE  port, and 5 GbE network port.

*Banana Pi Official Distributor

Description

The MT7986(Filogic 830) integrates four Arm Cortex-A53 cores up to 2GHz with up to 18,000 DMIPs of processing power and 6Gbps of dual 4x4 Wi-Fi 6 connectivity. It has two 2.5g Ethernet interfaces and serial peripheral interfaces (SPI). Filogic 830‘s built-in hardware acceleration engine enables fast and reliable Wi-Fi offloading and wireless network connection. In addition, the chip supports Mediatek FastPath™ technology, which is suitable for games, AR/VR and other low-latency applications. Wi-fi 6E has many advantages over its predecessors, including lower latency, larger bandwidth capacity and faster transmission rates. Wireless network devices supporting the 6GHz band mainly use 160MHz wide channel and 6GHz uncongested bandwidth to provide multigigabit transmission and low-latency wi-fi connection, providing reliable wireless network for streaming media, games, AR/VR and other applications.

Key Features:

  • MediaTek MT7986(Filogic 830) Quad core ARM Cortex A53+MT7531 chip design
  • Wifi 6 4x4 2.4G Wifi(MT7975N) +4x4 5G Wifi(MT7975P)
  • 2G DDR RAM
  • 8G eMMC flash
  • 128MB SPI Nand
  • 2 SFP 2.5GbE
  • 5 GbE network port
  • Mini PCIe via USB
  • M.2 KEY-E PCIe interface
  • Mciro SD card interface
  • 26 PIN GPIO

.

Application direction

  • Internet service Router
  • Wireless Router
  • Wireless Repeater
  • Home security Gateway
  • Home Automation
  • Nas device
  • Network and communication applications

.

Hardware Interface


.

Hardware Spec

  • CPU: MediaTek MT7986(Filogic 830) Quad core ARM Cortex A53+MT7531 chip design
  • SDRAM: 2 GB DDR4
  • On board Storage: MicroSD \(TF\) card,8GB eMMC onboard
  • GPIO: 26 Pin GPIO,some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
  • On board Network: 5 Port 10/100/1000Mbps Ethernet
  • SFP: 2 SFP 2.5GbE
  • Wifi: Wifi 6 4x4 2.4G Wifi(MT7975N) +4x4 5G Wifi(MT7975P)
  • mini PCIE: Mini PCIe via USB
  • M.2 interface: M.2 KEY-M PCIe inerface
  • USB: 1 USB 3.0 host ,2 USB interface with slot.
  • Buttons: Reset button,WPS botton, boot switch
  • Leds: Power status Led and RJ45 Led
  • DC Power: 12V/2A with DC in
  • Sizes: 100.5x148mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2
  • Weight: 200g

.

Product Details

CPU
MediaTek MT7986(Filogic 830) Quad core ARM Cortex A53+MT7531 chip design
RAM
2 GB DDR4
Storage Capacity
MicroSD \(TF\) card,8GB eMMC onboard
SFP Connector
2 SFP 2.5GbE
LED
Power status Led and RJ45 Led
USB Ports
1 USB 3.0 host ,2 USB interface with slot
GPIO
26 Pin GPIO
DC Power
12V/2A with DC in
Button
Reset button,WPS botton, boot switch
MiniPCI-e slots
Mini PCIe via USB
Wi-Fi
Wifi 6 4x4 2.4G Wifi(MT7975N) +4x4 5G Wifi(MT7975P)
Networking
5 Port 10/100/1000Mbps Ethernet
Dimension
100.5x148mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2
Weight
200g
BPI-R3
